TPS562201 Series

4.5 V to 17 V input, 2 A output, synchronous step-down converter in Eco-mode

Catalog

4.5 V to 17 V input, 2 A output, synchronous step-down converter in Eco-mode

Part	Supplier Device Package	Voltage - Output (Min/Fixed)	Output Type	Output Configuration	Current - Output	Topology	Frequency - Switching	Voltage - Output (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Function	Number of Outputs	Package / Case	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Utilized IC / Part	Board Type	Supplied Contents	Voltage - Output	Outputs and Type	Outputs and Type
Texas Instruments TPS562201DDCT	SOT-23-THIN	0.768 V	Adjustable	Positive	2 A	Buck	580 kHz	7 V	Surface Mount	4.5 V	-40 °C	125 ¯C	17 V	Step-Down	1	SOT-23-6 Thin TSOT-23-6
Texas Instruments TPS562201DDCR	SOT-23-THIN	0.768 V	Adjustable	Positive	2 A	Buck	580 kHz	7 V	Surface Mount	4.5 V	-40 °C	125 ¯C	17 V	Step-Down	1	SOT-23-6 Thin TSOT-23-6

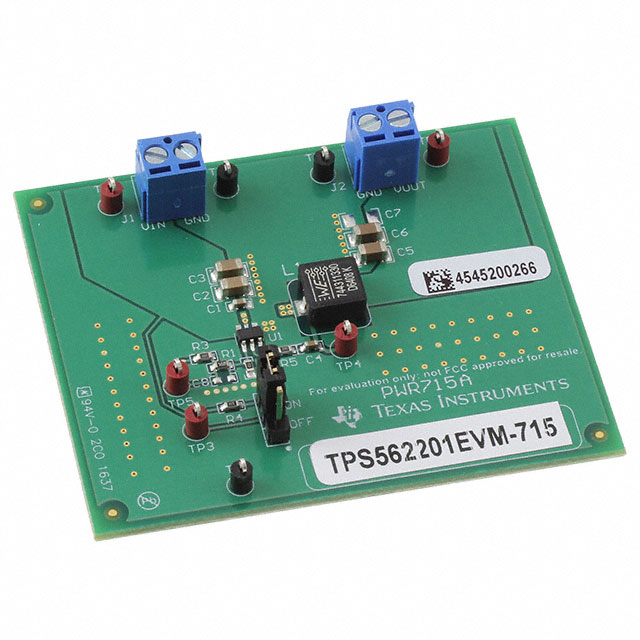

Texas Instruments TPS562201EVM-715					2 A		580 kHz										Buck	17 V	4.5 V	DC/DC Step Down	TPS562201	Fully Populated	Board(s)	1.05 V	Non-Isolated	1

Catalog

4.5 V to 17 V input, 2 A output, synchronous step-down converter in Eco-mode

Key Features

• TPS562201 and TPS562208 2A converter integrated 140mΩ and 84mΩ FETsD-CAP2™ control scheme with fast transient responseInput voltage range: 4.5V to 17VOutput voltage range: 0.76V to 7VPulse-skip mode (TPS562201) or continuous current mode (TPS562208)580kHz switching frequencyLow shutdown current less than 20µA2% feedback voltage accuracy (25°C)Start-up from prebiased output voltageCycle-by-cycle overcurrent limitHiccup-mode overcurrent protectionNon-latch UVP and TSD protectionsFixed soft start: 1.0msCreate a custom design using the TPS56220x with theWEBENCH Power DesignerTPS562201 and TPS562208 2A converter integrated 140mΩ and 84mΩ FETsD-CAP2™ control scheme with fast transient responseInput voltage range: 4.5V to 17VOutput voltage range: 0.76V to 7VPulse-skip mode (TPS562201) or continuous current mode (TPS562208)580kHz switching frequencyLow shutdown current less than 20µA2% feedback voltage accuracy (25°C)Start-up from prebiased output voltageCycle-by-cycle overcurrent limitHiccup-mode overcurrent protectionNon-latch UVP and TSD protectionsFixed soft start: 1.0msCreate a custom design using the TPS56220x with theWEBENCH Power Designer

Description

The TPS562201 and TPS562208 are simple, easy-to-use, 2A synchronous step-down converters in SOT-23 package. The devices are designed to operate with minimum external component counts and also designed to achieve low standby current. These switch mode power supply (SMPS) devices employ D-CAP2 control scheme providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components. The TPS562201 operates in pulse skip mode, which maintains high efficiency during light load operation. The TPS562201 and TPS562208 are available in a 6-pin 1.6mm × 2.9 mm SOT (DDC) package and specified from a –40°C to 125°C junction temperature. The TPS562201 and TPS562208 are simple, easy-to-use, 2A synchronous step-down converters in SOT-23 package. The devices are designed to operate with minimum external component counts and also designed to achieve low standby current. These switch mode power supply (SMPS) devices employ D-CAP2 control scheme providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components. The TPS562201 operates in pulse skip mode, which maintains high efficiency during light load operation. The TPS562201 and TPS562208 are available in a 6-pin 1.6mm × 2.9 mm SOT (DDC) package and specified from a –40°C to 125°C junction temperature.
