P50L Series

Catalog

CONN SOCKET 80POS R/A GOLD

Part	Number of Positions	Mounting Type	Number of Rows [custom]	Connector Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Contact Finish Thickness	Mated Stacking Heights [Max] [z]	Mated Stacking Heights [Min] [z]	Mated Stacking Heights	Height Above Board	Height Above Board
3M Electronic Specialty P50L-080S-RR1-TGF	80	Right Angle Through Hole	2	Socket Outer Shroud Contacts	6.99 mm	0.275 in	Gold	Board Lock	3 µin	0.076 Ám	0.05 in	1.27 mm

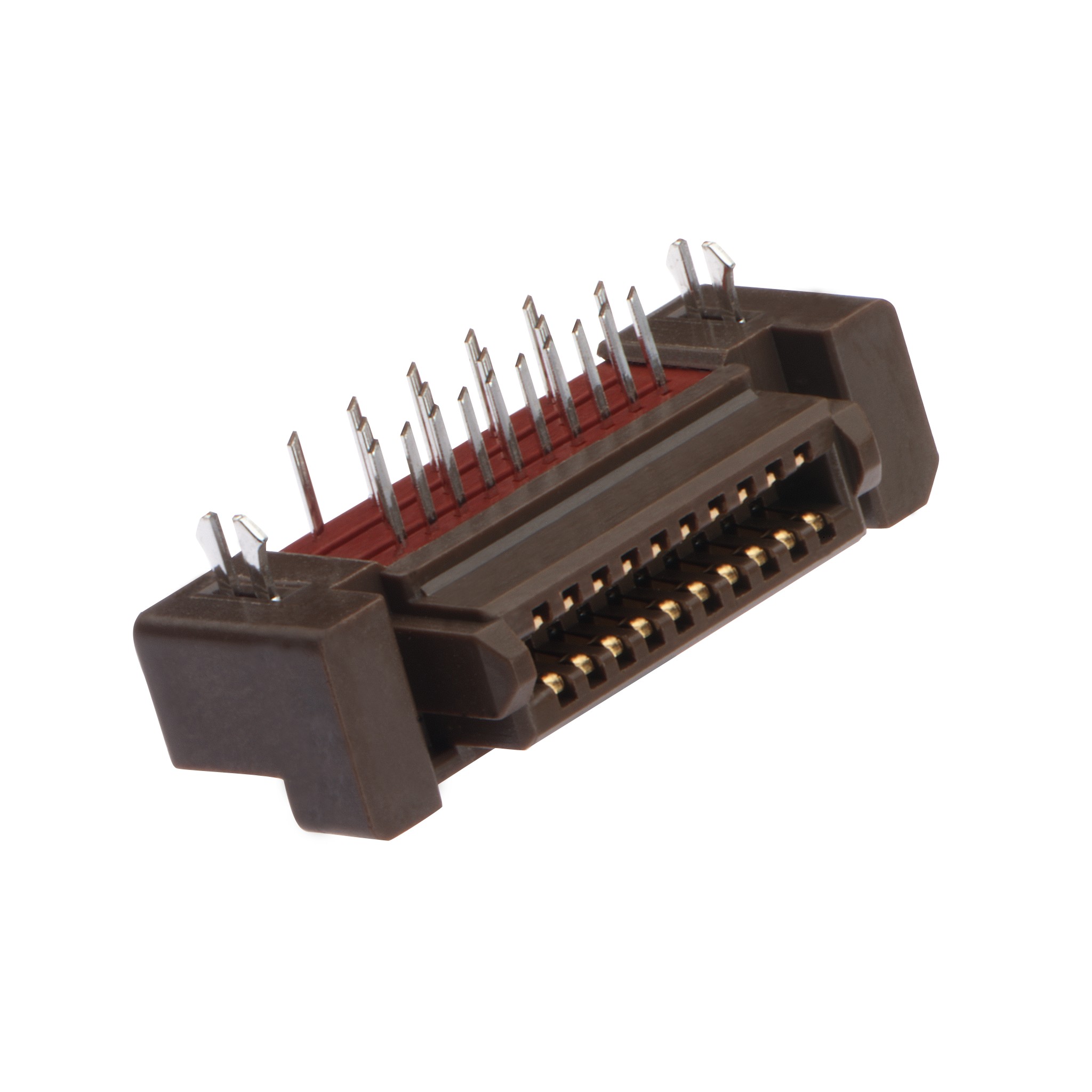

3M Electronic Specialty P50L-080S-RR1-DA	80	Right Angle Through Hole	2	Socket Outer Shroud Contacts	6.99 mm	0.275 in	Gold	Board Lock			0.05 in	1.27 mm	Flash
3M Electronic Specialty P50L-060S-A-DA	60	Through Hole	2	Socket Outer Shroud Contacts	5.4 mm	0.213 in	Gold	Board Lock Flange			0.05 in	1.27 mm	Flash	9 mm	7 mm
3M Electronic Specialty P50L-080S-A-DA	80	Through Hole	2	Socket Outer Shroud Contacts	5.4 mm	0.213 in	Gold	Board Lock Flange			0.05 in	1.27 mm	Flash	9 mm	7 mm
3M Electronic Specialty P50L-100S-RR1-DA	100	Right Angle Through Hole	2	Socket Outer Shroud Contacts	6.99 mm	0.275 in	Gold	Board Lock			0.05 in	1.27 mm	Flash
3M Electronic Specialty P50L-120S-B-TGF	120	Through Hole	2	Socket Outer Shroud Contacts	6.4 mm	0.252 in	Gold	Board Lock Flange			0.05 in	1.27 mm				8 mm 10 mm
3M Electronic Specialty P50L-060P-AS-DA	60	Surface Mount	2				Gold	Board Guide Solder Retention			0.05 in	1.27 mm	Flash			7 mm 8 mm	5 mm	0.197 in
3M Electronic Specialty P50L-060S-B-TGF	60	Through Hole	2	Socket Outer Shroud Contacts	6.4 mm	0.252 in	Gold	Board Lock Flange			0.05 in	1.27 mm				8 mm 10 mm
3M Electronic Specialty P50L-060P-RR1-DA	60	Right Angle Through Hole	2		6.99 mm	0.275 in	Gold	Board Lock Flange			0.05 in	1.27 mm	Flash
3M Electronic Specialty P50L-020S-RR1-TGF	20	Right Angle Through Hole	2	Socket Outer Shroud Contacts	6.99 mm	0.275 in	Gold	Board Lock	3 µin	0.076 Ám	0.05 in	1.27 mm
