NRPN112 Series

Catalog

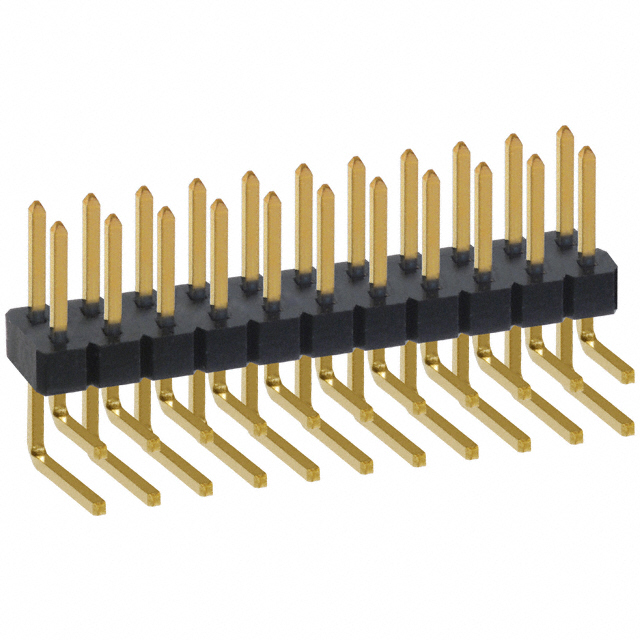

CONN HEADER R/A 22POS 2MM

Part	Contact Finish Thickness - Post	Insulation Material	Material Flammability Rating	Number of Rows [custom]	Current Rating (Amps)	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Voltage Rating	Contact Finish - Mating	Number of Positions Loaded	Insulation Color	Contact Shape	Number of Positions	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Contact Length - Post [custom]	Contact Length - Post	Shrouding	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Type	Pitch - Mating	Pitch - Mating	Termination	Style	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions NRPN112PARN-RC	Flash	Nylon 6T Polyamide (PA6T)	UL94 V-0	2	2 A	Push-Pull	Right Angle Through Hole	Flash	150 VDC	Gold	All	Black	Square	22	Brass	-40 C	105 ░C	2 mm	0.079 in	Header	0.11 in	2.79 mm	Unshrouded	Gold	4 mm	0.157 in	Male Pin	0.079 "	2 mm	Solder	Board to Board Cable	0.141 in	3.6 mm
Sullins Connector Solutions NRPN112PAEN-RC	Flash	Nylon 6T Polyamide (PA6T)	UL94 V-0	2	2 A	Push-Pull	Through Hole	Flash	150 VDC	Gold	All	Black	Square	22	Brass	-40 C	105 ░C	2 mm	0.079 in	Header	0.11 in	2.79 mm	Unshrouded	Gold	2 mm	0.079 in	Male Pin	0.079 "	2 mm	Solder	Board to Board Cable	0.141 in	3.6 mm	0.33 in	8.38 mm
