F120 Series

Catalog

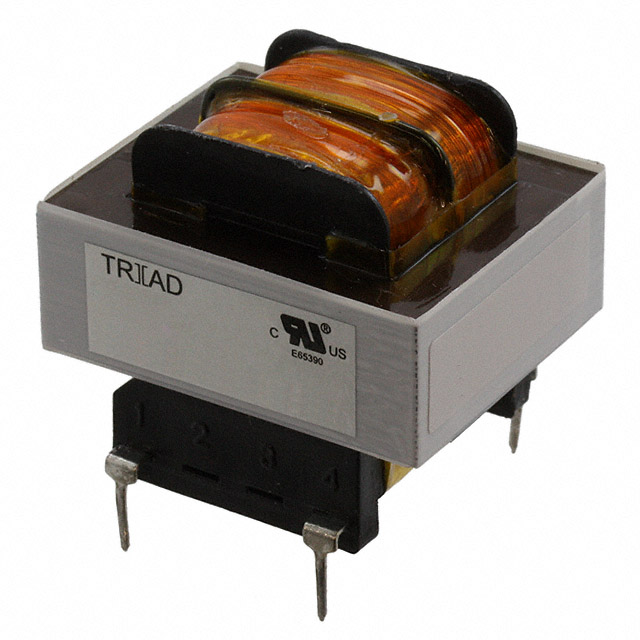

POWER XFMR 120.0VCT@0.010A UL/CUL 115V SPLIT PACK PCB MOUNT/F120-010 ROHS COMPLIANT: YES

Part	Voltage - Primary	Current - Output (Max) [Max] [custom]	Current - Output (Max) [Max] [custom]	Height - Seated (Max) [Max] [z]	Center Tap	Secondary Winding(s)	Weight	Weight	Voltage - Isolation	Power - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Primary Winding(s)	Type	Termination Style	Voltage - Secondary (Full Load)
Triad Magnetics F120-010	115 V	10 mA	20 mA	23.8 mm		Dual	0.17 lb	77.11 g	2500 Vrms	1.1 VA	34.93 mm	28.58 mm	Through Hole	Single	Laminated Core	PC Pin	60 V 120 V
