TDS Series
Manufacturer: Semtech Corporation
Beta
⌘K

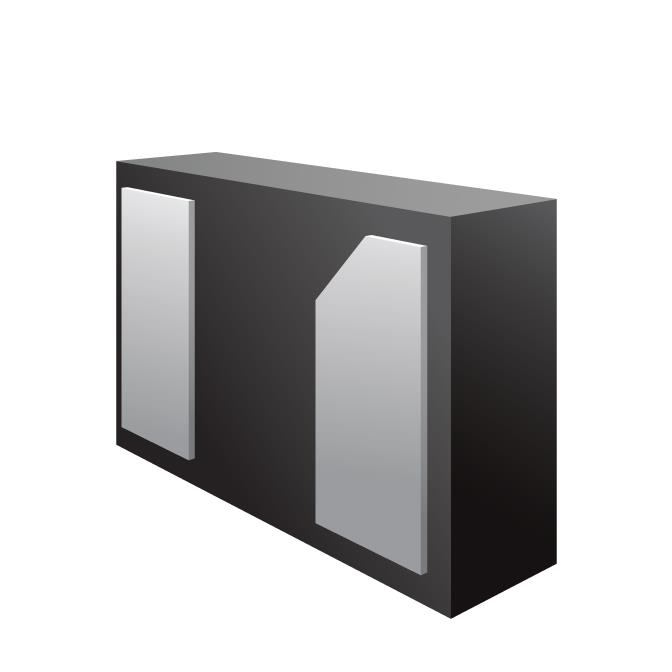

ESD PROTECTION DIODES / TVS DIODES TDS, 14V 22A EOS SLP1006P2X3F
| Part | Voltage - Breakdown (Min) [Min] | Unidirectional Channels [custom] | Package / Case | Voltage - Reverse Standoff (Typ) | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Power Line Protection | Capacitance @ Frequency | Type | Voltage - Clamping (Max) @ Ipp [Max] | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Number of Circuits | Voltage - Clamping | Technology | Voltage - Reverse Standoff (Typ) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Semtech Corporation | 17.7 V | 1 | 0402 (1006 Metric) | 14 V | General Purpose | 85 °C | -40 C | Surface Mount | 1 MHz 80 pF | Zener | 20.5 V | 22 A | 451 W | ||||||||
 Semtech Corporation | 6-UFDFN | USB | Surface Mount | 6-DFN | 1.6 | 1.6 | 1 | 28 V | Internal Switch | ||||||||||||
 Semtech Corporation | 25 V | 1 | 0402 (1006 Metric) | 22 V | USB | 85 °C | -40 C | Surface Mount | 1 MHz 58 pF | Zener | 28 V | 16 A | 450 W | 22 V |
