9504-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

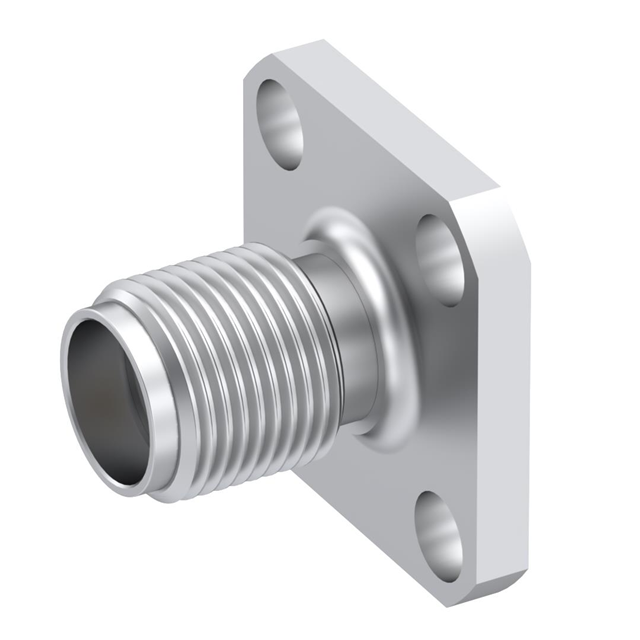

SMA / STRAIGHT JACK FEMALE PASSI
| Part | Body Material | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Mating Cycles | Connector Style | Mounting Type | Number of Ports | Contact Termination | Center Contact Material | Frequency - Max [Max] | Shield Termination | Housing Color | Connector Type | Mounting Feature | Impedance | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 335 V | 500 | SMA | Panel Mount | 1 | Compression | Beryllium Copper | 26 GHz | Screw | Silver | Female Socket Jack | Flange | 50 Ohms | Threaded |
