3253 Series

Catalog

CONN TERM RECT 1/0 AWG #1/2

Part	Insulation	Termination	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Terminal Style	Tab Thickness	Tab Thickness [custom]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Terminal Type	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Contact Material	Stud/Tab Size	Wire Gauge	Mounting Type	Stud/Tab Size	Diameter - Ring ID [diameter]

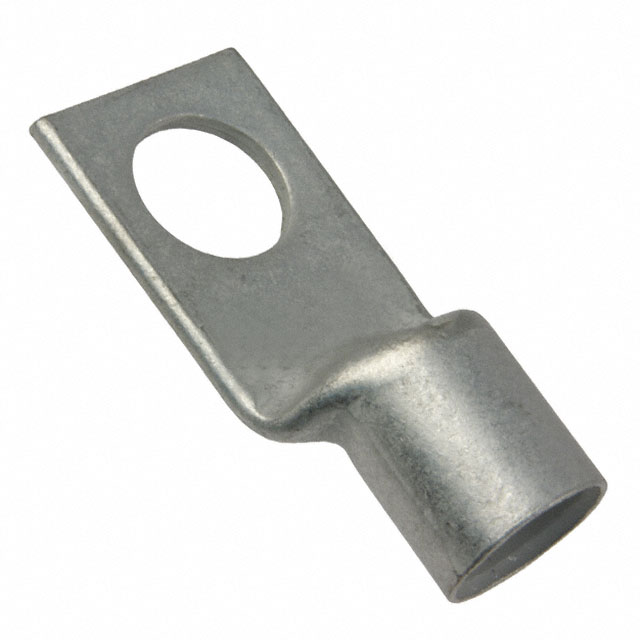

TE Connectivity Raychem Cable Protection 325305	Non-Insulated	Barrel Crimp	0.458 in	11.63 mm	0.581 in	14.76 mm	Single Stud Hole	2.54 mm	0.1 in	1.97 "	50.04 mm	Tin	0.87 in	22.1 mm	Standard	13.08 mm	0.515 in	Copper	1/2 Stud	44 AWG	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 325300	Non-Insulated	Barrel Crimp	0.458 in	11.63 mm	0.581 in	14.76 mm	No Stud Hole	2.54 mm	0.1 in	1.97 "	50.04 mm	Tin	0.87 in	22.1 mm	Rectangular Tongue			Copper		44 AWG	Free Hanging (In-Line)

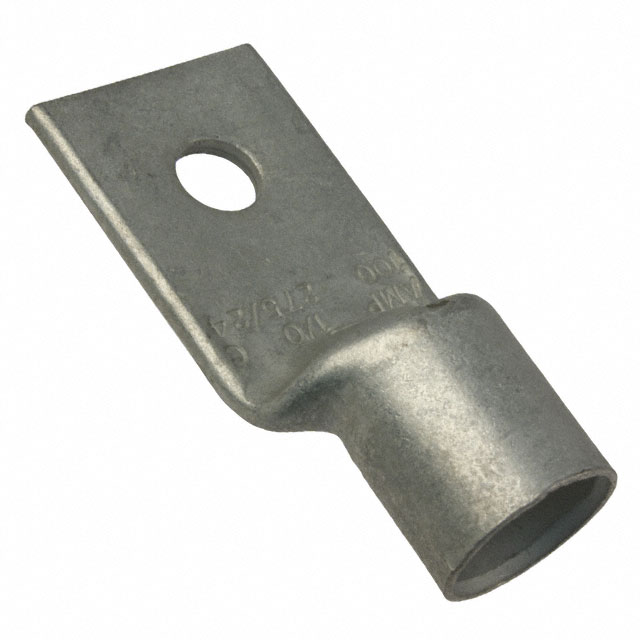

TE Connectivity Raychem Cable Protection 325301	Non-Insulated	Barrel Crimp	0.458 in	11.63 mm	0.581 in	14.76 mm	Single Stud Hole	2.54 mm	0.1 in	1.97 "	50.04 mm	Tin	0.87 in	22.1 mm	Standard		6.73 mm	Copper		44 AWG	Free Hanging (In-Line)	0.25 Stud	0.265 in
TE Connectivity Raychem Cable Protection 325302	Non-Insulated	Barrel Crimp	0.458 in	11.63 mm	0.581 in	14.76 mm	Single Stud Hole	2.54 mm	0.1 in	1.97 "	50.04 mm	Tin	0.87 in	22.1 mm	Standard		8.33 mm	Copper		44 AWG	Free Hanging (In-Line)	0.3125 Stud	0.328 in
