ADP2386 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
CONV DC-DC 4.5V TO 20V SYNCHRONOUS STEP DOWN SINGLE-OUT 0.6V TO 18V 6A 24-PIN LFCSP EP T/R
| Part | Voltage - Output (Max) | Output Configuration | Frequency - Switching (Min) | Frequency - Switching (Max) | Current - Output | Voltage - Output (Min/Fixed) | Output Type | Package / Case | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Input (Max) | Number of Outputs | Synchronous Rectifier | Topology | Package Width | Package Name | Package Length | Voltage - Input (Min) | Function | Supplied Contents | Board Type | Total Output Count | Non-Isolated Output Count | Voltage - Input (Minimum) | Voltage - Input (Maximum) | Regulator Topology | Utilized IC / Part | Contents | Main Purpose | Voltage - Output (Min) | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 18 V | Positive | 200 kHz | 1.4 MHz | 6 A | 0.6 V | Adjustable | 24-WFQFN Exposed Pad CSP | Surface Mount | 125 °C | -40 °C | 20 V | 1 | Yes | Buck | 4 mm | 24-LFCSP | 4 mm | 4.5 V | Step-Down | ||||||||||||

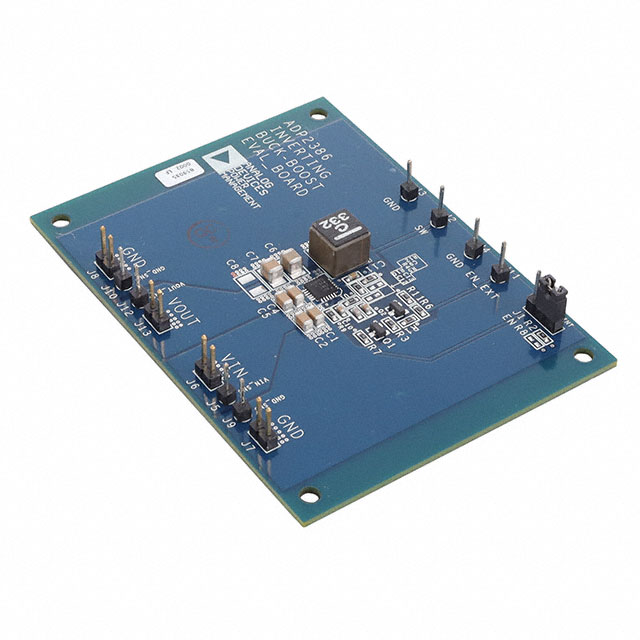

 Analog Devices Inc./Maxim Integrated | 18 V | 6 A | Non-Isolated | Board(s) | Fully Populated | 1 | 1 count | 4.5 V | 20 V | Buck | ADP2386 | Board | DC/DC Step Down | 0.6 V | 600 kHz |
