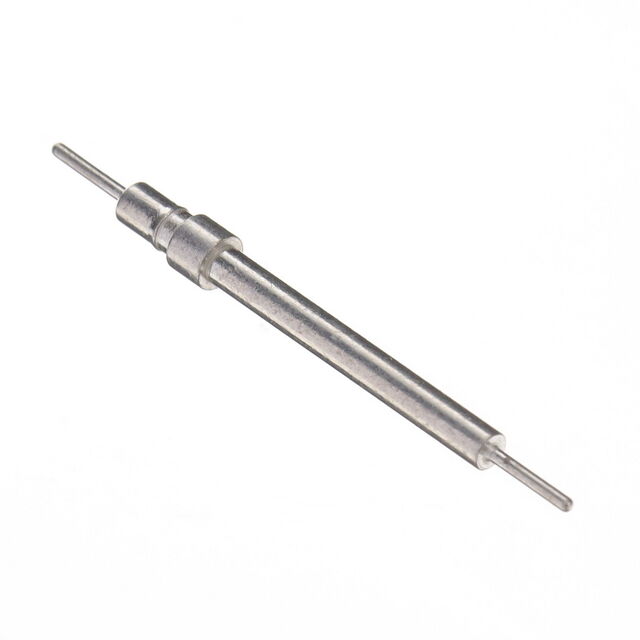

4259-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Insulation | Termination | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall | Length - Overall | Contact Material | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | Press-Fit | 0.018 in | 0.46 mm | Double End | 0.072 " | 1.83 mm | Tin | 0.46 mm | 0.018 in | 14.22 mm | 0.56 in | 1.45 mm | 0.057 in | 0.835 in | 21.21 mm | Brass Alloy | PC Pin | 200 Áin | 5.08 Ám | Through Hole | 6.48 mm | 0.255 " |
Mill-Max Manufacturing Corp. | Non-Insulated | Press-Fit | 0.018 in | 0.46 mm | Double End | 0.072 " | 1.83 mm | Gold | 0.46 mm | 0.018 in | 14.22 mm | 0.56 in | 1.45 mm | 0.057 in | 0.835 in | 21.21 mm | Brass Alloy | PC Pin | 50 µin | 1.27 µm | Through Hole | ||
 Mill-Max Manufacturing Corp. | Non-Insulated | Press-Fit | 0.018 in | 0.46 mm | Double End | 0.072 " | 1.83 mm | Tin-Lead | 0.46 mm | 0.018 in | 14.22 mm | 0.56 in | 1.45 mm | 0.057 in | 0.835 in | 21.21 mm | Brass Alloy | PC Pin | 200 Áin | 5.08 Ám | Through Hole |
