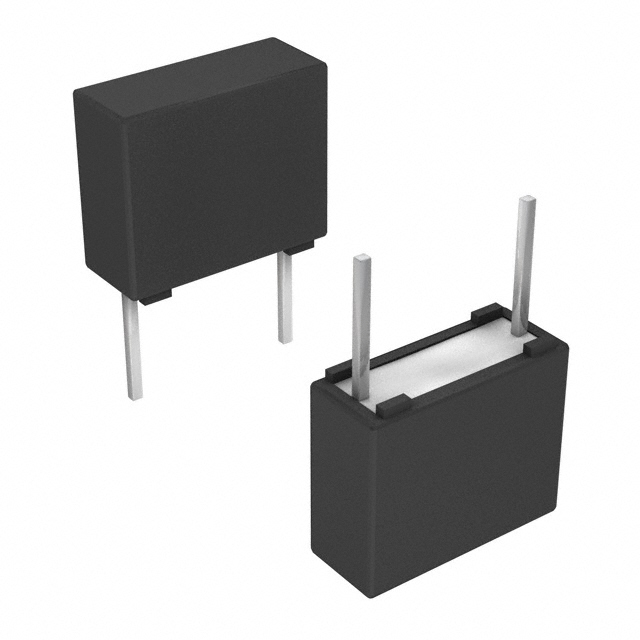

BFC2383 Series

Catalog

FILM CAPACITORS .01UF 5% 1400VOLTS

...

Part	Height - Seated (Max)	Voltage Rating - AC	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Length	Size / Dimension Width	Dielectric Material	Capacitance	Voltage Rating - DC	Lead Spacing	Termination	Package / Case	Applications	Mounting Type	Tolerance
Vishay Dale BFC238344103	0.591 in	500 V	-55 °C	105 °C	0.689 in	0.335 in	Metallized Polypropylene (PP)	1000 pF	1400 V	0.591 in	PC Pins	Radial	DV/DT High Pulse	Through Hole	5 %
Vishay Dale BFC238340243	0.709 in	500 V	-55 °C	105 °C	1.024 in	0.335 in	Metallized Polypropylene (PP)	0.024 µF	1400 V	0.886 in	PC Pins	Radial	DV/DT High Pulse	Through Hole	5 %
Vishay Dale BFC238362512	0.591 in	700 V	-55 °C	105 °C	0.689 in	0.335 in	Metallized Polypropylene (PP)	5100 pF	2 kVDC	0.591 in	PC Pins	Radial	DV/DT High Pulse	Through Hole	5 %
Vishay Dale BFC238341124	1.102 in	500 V	-55 °C	105 °C	1.22 in	0.709 in	Metallized Polypropylene (PP)	0.12 µF	1400 V	1.083 in	PC Pins	Radial	DV/DT High Pulse	Through Hole	5 %
Vishay Dale BFC238312104	0.532 in	200 Vpk	-55 °C	105 °C	0.689 in	0.276 in	Metallized Polypropylene (PP)	0.1 µF	400 V	0.591 in	PC Pins	Radial	DV/DT High Pulse	Through Hole	5 %
Vishay Dale BFC238334433	0.591 in	350 VAC	-55 °C	105 °C	0.689 in	0.335 in	Metallized Polypropylene (PP)	0.043 µF	1 kV	0.591 in	PC Pins	Radial	DV/DT High Pulse	Through Hole	5 %
Vishay Dale BFC238300823	0.433 in	125 V	-55 °C	105 °C	0.689 in	0.197 in	Metallized Polypropylene (PP)	0.082 µF	250 VDC	0.591 in	PC Pins	Radial	DV/DT High Pulse	Through Hole	5 %
Vishay Dale BFC238301134	0.472 in	125 V	-55 °C	105 °C	0.689 in	0.236 in	Metallized Polypropylene (PP)	0.13 µF	250 VDC	0.591 in	PC Pins	Radial	DV/DT High Pulse	Through Hole	5 %
Vishay Dale BFC238304334	16.51 mm	125 V	-55 °C	105 °C	0.689 in	0.394 in	Metallized Polypropylene (PP)	0.33 µF	250 VDC	0.591 in	PC Pins	Radial	DV/DT High Pulse	Through Hole	5 %
Vishay Dale BFC238344243	0.709 in	500 V	-55 °C	105 °C	1.024 in	0.335 in	Metallized Polypropylene (PP)	0.024 µF	1400 V	0.886 in	PC Pins	Radial	DV/DT High Pulse	Through Hole	5 %
