9390 Series
Manufacturer: Belden Inc.
Beta
⌘K

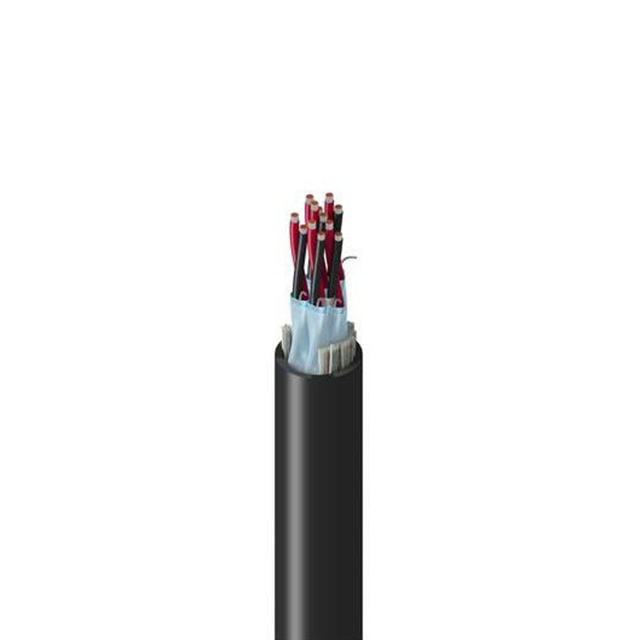

MULTI-PAIR 18COND 18AWG
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Conductor Insulation | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Length | Length | Jacket (Insulation) Material | Cable Type | Features | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Number of Conductors [custom] | Wire Gauge | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 30 AWG | 19 | Chrome | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 1.6 mm | 0.063 in | Audio Control Instrumentation | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Multi-Pair | Direct Burial Drain Wire Ripcord UV Resistant | Foil | -30 ░C | 105 ░C | 0.649 in | 16.49 mm | 18 | 9 | 18 AWG | Copper Tinned |
Belden Inc. | Aluminum | 100 % | 30 AWG | 19 | Chrome | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 1.6 mm | 0.063 in | Audio Control Instrumentation | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Multi-Pair | Direct Burial Drain Wire Ripcord UV Resistant | Foil | -30 ░C | 105 ░C | 0.649 in | 16.49 mm | 18 | 9 | 18 AWG | Copper Tinned |
