NCH-RSL10 Series
Manufacturer: ON Semiconductor
Beta
⌘K

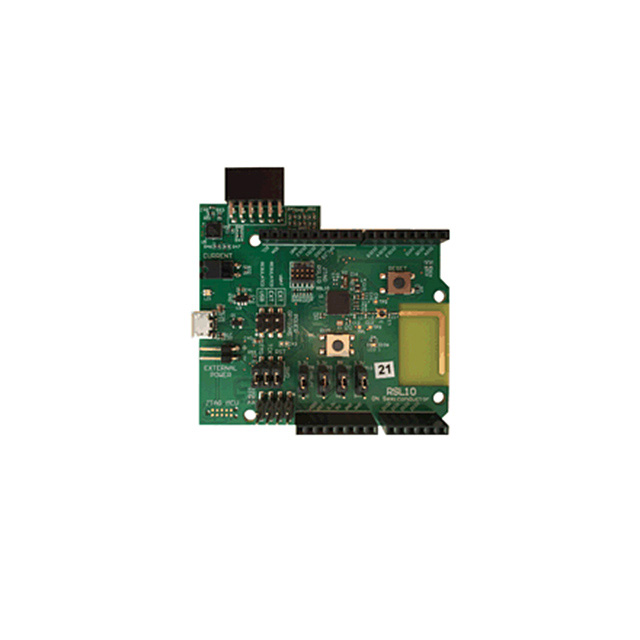

IOT IDK BLE RSL10 EVALUAT
| Part | For Use With/Related Products | Supplied Contents | Type | Frequency | Package / Case | Power - Output | Modulation | Voltage - Supply | Mounting Type | Serial Interfaces | Protocol | Supplier Device Package [x] | Supplier Device Package | Supplier Device Package [y] | RF Family/Standard | Operating Temperature [Max] | Operating Temperature [Min] | Data Rate (Max) | Current - Transmitting [Max] | Current - Transmitting [Min] | Sensitivity | Current - Receiving [Min] | Current - Receiving [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Memory Size [custom] | Memory Size [custom] | Frequency [Max] | Frequency [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

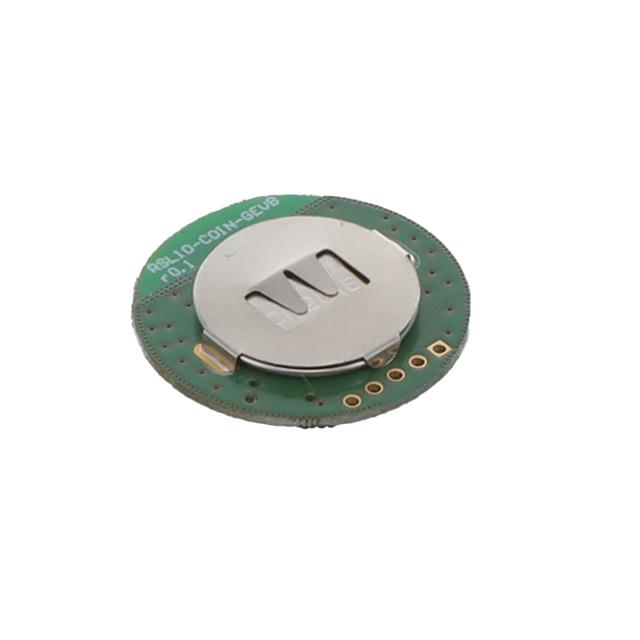

 ON Semiconductor | RSL10 | Board(s) | Bluetooth® 5.x (BLE) Transceiver | 2.4 GHz | |||||||||||||||||||||||||

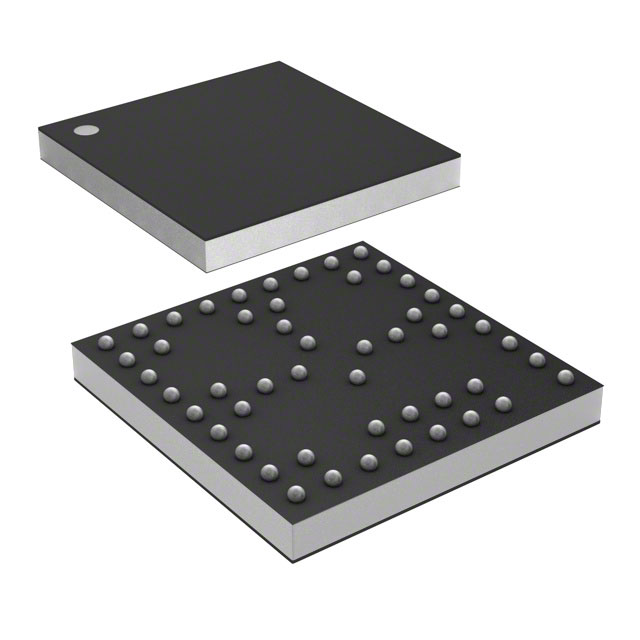

 ON Semiconductor | TxRx + MCU | 2.4 GHz | 51-XFBGA WLCSP | 6 dBm | FSK GFSK | 3.3 V | Surface Mount | I2C SPI UART | Bluetooth v5.0 | 2.33 | 51-WLCSP | 2.36 | Bluetooth | 85 °C | -40 °C | 2 Mbps | 25 mA | 12 mA | -94 dBm | 3 mA | 6.2 mA | ||||||||

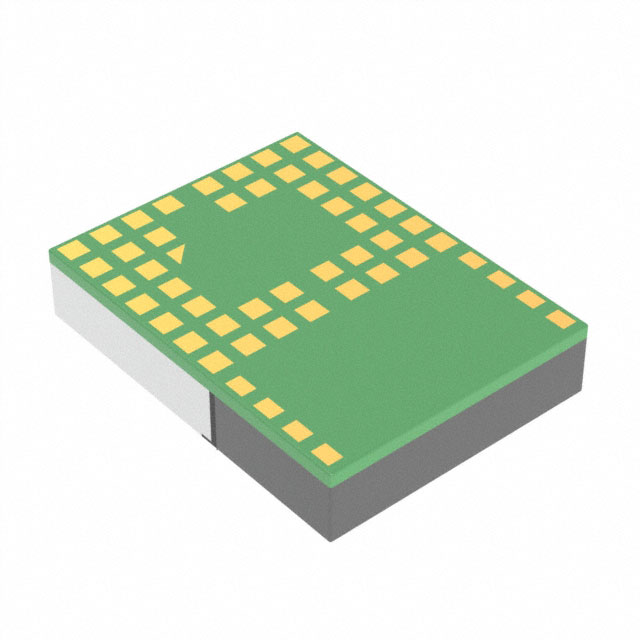

 ON Semiconductor | TxRx + MCU | 51-SMD Module | 6 dBm | 4FSK FSK GFSK MSK OQPSK | Surface Mount | PCM SPI UART | Bluetooth v5.0 | 51-SIP (8x6) | Bluetooth | 85 °C | -40 °C | 4 Mbps | 8.9 mA | 4.6 mA | 3 mA | 6.2 mA | 3.3 V | 1.18 V | 76 kB 88 kB | 384 kB | 2.5 GHz | 2.36 GHz | |||||||

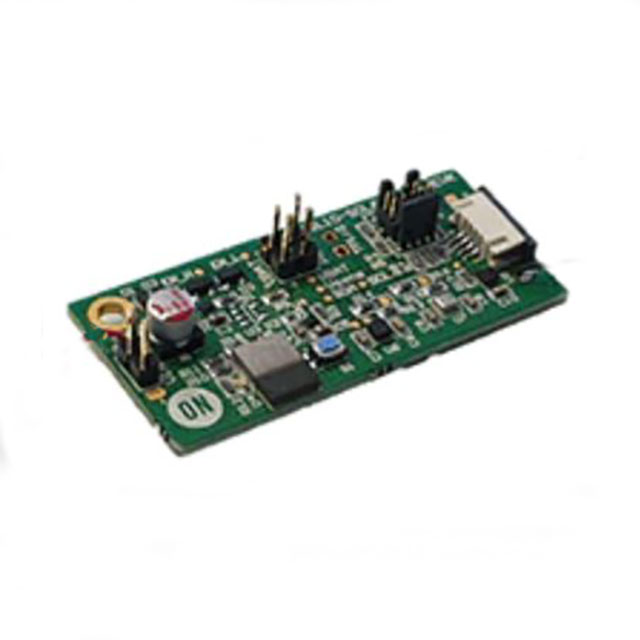

 ON Semiconductor | RSL10 | Board(s) | Bluetooth® 5.x (BLE) Transceiver | 2.4 GHz | |||||||||||||||||||||||||
 ON Semiconductor | RSL10 | Board(s) | Bluetooth® 5.x (BLE) Transceiver | 2.4 GHz |
