EVAL12 Series
Manufacturer: INFINEON
Beta
⌘K

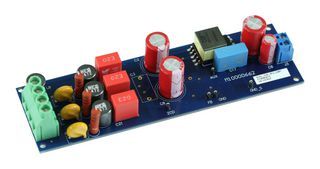

THIS 12W AC/DC POWER SUPPLY IS DESIGNED SPECIFICALLY TO POWER A 3 PHASE SMART ELECTRICITY METER, SHOWCASING THE LATEST 950V COOLMOS™ P7 SJ MOSFET. THIS EVALUATION BOARD IS ALSO EQUIPPED WITH OTHER INFINEON COMPONENTS SUCH AS QR PWM CONTROLLER AND NPN SILICON AF TRANSISTOR.
| Part | Power - Output | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Main Purpose | Contents | Current - Output | Voltage - Output | Regulator Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 12 W | Board(s) | 1 Isolated Output Isolated | 1 | Fully Populated | 460 VAC | 185 VAC | ICE5QSAG IPD95R1K2P7 | AC/DC Primary Side | Board(s) | 1 A | 12 V | Flyback |
