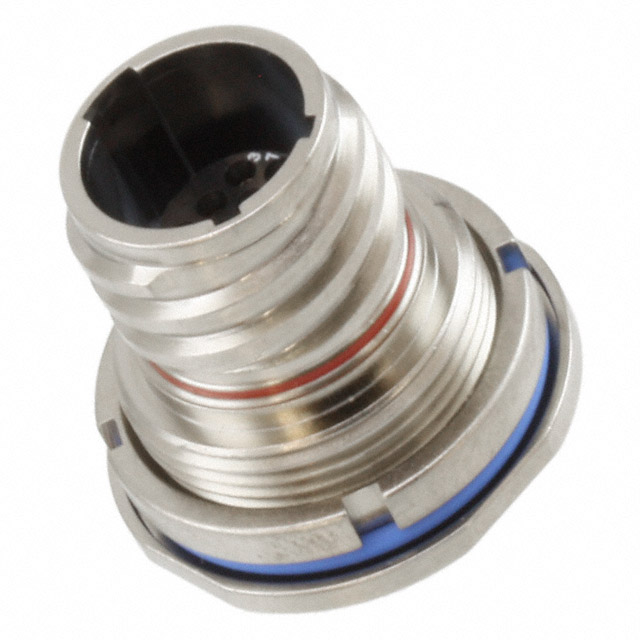

MKJ5C Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CIRCULAR
| Part | Connector Type | Termination | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Mounting Feature | Shielding | Primary Material | Mounting Type | Insert Material | Orientation | Number of Positions | Contact Finish - Mating | Color | Applications | Voltage Rating | Shell Material | Contact Material | Fastening Type | Shell Size - Insert | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Receptacle Female Sockets | Solder | 11 | 19 | 5 A | -55 C | 150 °C | Electroless Nickel | Bulkhead - Front Side Nut | Shielded | Metal | Panel Mount Through Hole | Thermoplastic | B | 19 | Gold | Silver | Aerospace Communication Systems Industrial Instrumentation Medical | 500 VAC | Aluminum Alloy | Copper Alloy | Threaded | |||
ITT Cannon, LLC | Receptacle Male Pins | Solder | 5 A | -55 C | 150 °C | Electroless Nickel | Flange | Shielded | Metal | Panel Mount Through Hole | Thermoplastic | C | 4 | Gold | Silver | Aerospace Communication Systems Industrial Instrumentation Medical | 500 VAC | Aluminum Alloy | Copper Alloy | Threaded | 8-4 | ||||
ITT Cannon, LLC | Receptacle Female Sockets | Solder | 10 | 13 | 5 A | -55 C | 150 °C | Electroless Nickel | Bulkhead - Front Side Nut | Shielded | Metal | Panel Mount Through Hole | Thermoplastic | C | 13 | Gold | Silver | Aerospace Communication Systems Industrial Instrumentation Medical | 500 VAC | Aluminum Alloy | Copper Alloy | Threaded | |||
ITT Cannon, LLC | Receptacle Female Sockets | Solder | 15 | 37 | 5 A | -55 C | 150 °C | Olive Drab Cadmium | Bulkhead - Front Side Nut | Shielded | Metal | Panel Mount Through Hole | Thermoplastic | B | 37 | Gold | Olive Drab | Aerospace Communication Systems Industrial Instrumentation Medical | 500 VAC | Aluminum Alloy | Copper Alloy | Threaded | |||
ITT Cannon, LLC | Receptacle Female Sockets | Solder | 10 | 13 | 5 A | -55 C | 150 °C | Electroless Nickel | Bulkhead - Front Side Nut | Shielded | Metal | Panel Mount Through Hole | Thermoplastic | D | 13 | Gold | Silver | Aerospace Communication Systems Industrial Instrumentation Medical | 500 VAC | Aluminum Alloy | Copper Alloy | Threaded | |||
ITT Cannon, LLC | Receptacle Male Pins | Solder | 15 | 37 | 5 A | -55 C | 150 °C | Olive Drab Cadmium | Bulkhead - Front Side Nut | Shielded | Metal | Panel Mount Through Hole | Thermoplastic | B | 37 | Gold | Olive Drab | Aerospace Communication Systems Industrial Instrumentation Medical | 500 VAC | Aluminum Alloy | Copper Alloy | Threaded | |||
ITT Cannon, LLC | Receptacle Female Sockets | Solder | 5 A | -55 C | 150 °C | Electroless Nickel | Flange | Shielded | Metal | Panel Mount Through Hole | Thermoplastic | C | 4 | Gold | Silver | Aerospace Communication Systems Industrial Instrumentation Medical | 500 VAC | Aluminum Alloy | Copper Alloy | Threaded | 8-4 | ||||
ITT Cannon, LLC | Receptacle Female Sockets | Solder | 8 | 7 | 5 A | -55 C | 150 °C | Electroless Nickel | Flange | Shielded | Metal | Panel Mount Through Hole | Thermoplastic | C | 7 | Gold | Silver | Aerospace Communication Systems Industrial Instrumentation Medical | 500 VAC | Aluminum Alloy | Copper Alloy | Threaded | |||
 ITT Cannon, LLC | Receptacle Female Sockets | Solder | 9 | 10 | 5 A | -55 C | 150 °C | Electroless Nickel | Bulkhead | Shielded | Metal | Panel Mount Through Hole | A | 10 | Gold | 500 VAC | Aluminum Alloy | Threaded | 50 µin | 1.27 µm | |||||
ITT Cannon, LLC | Receptacle Male Pins | Solder | 15 | 37 | 5 A | -55 C | 150 °C | Olive Drab Cadmium | Bulkhead - Front Side Nut | Shielded | Metal | Panel Mount Through Hole | Thermoplastic | D | 37 | Gold | Olive Drab | Aerospace Communication Systems Industrial Instrumentation Medical | 500 VAC | Aluminum Alloy | Copper Alloy | Threaded |
