ECW-F2274 Series

Catalog

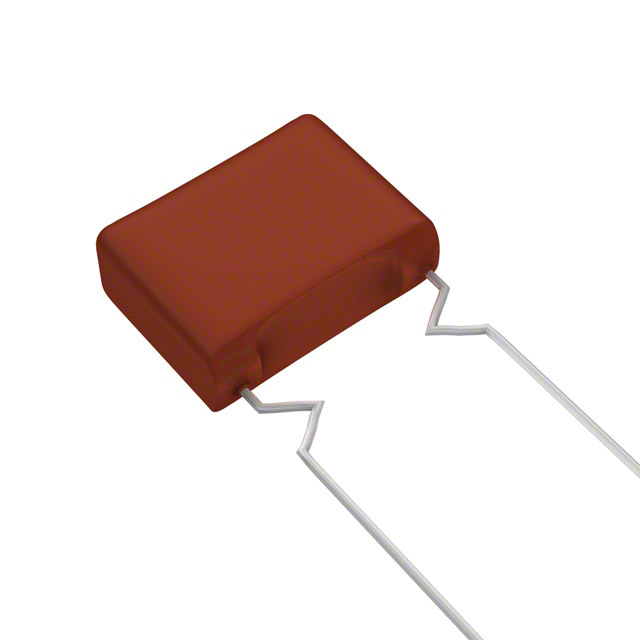

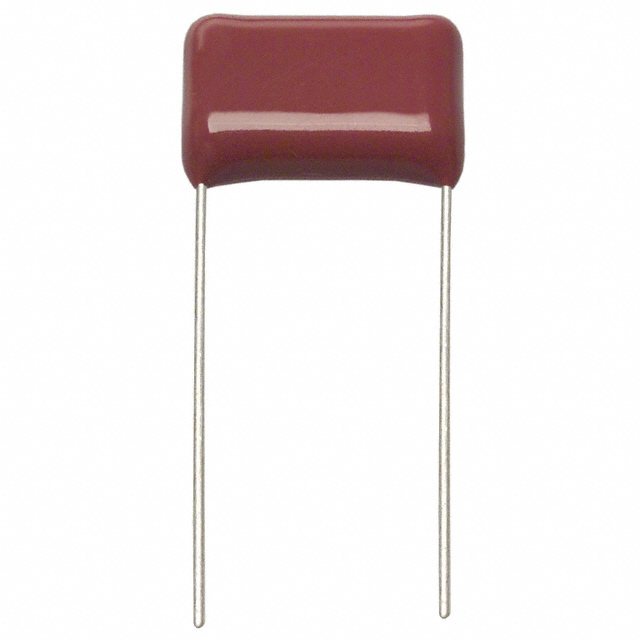

ECWF(A), MET POLYPROP FILM CAP, RAD LEAD ROHS COMPLIANT: YES

Part	Lead Spacing	Lead Spacing	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Termination	Applications	Dielectric Material	Capacitance	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC
Panasonic Electronic Components ECW-F2274HAB	0.295 in	7.5 mm	3 %	17.4 mm	0.685 in	Radial	PC Pins	High Frequency Switching	Polypropylene (PP) Metallized	0.27 µF	Through Hole	6.8 mm	0.512 "	0.268 "	13 mm	250 V	-40 C	105 ░C
Panasonic Electronic Components ECW-F2274JB	0.591 in	15 mm	5 %	16 mm	0.63 in	Radial	PC Pins	High Frequency Switching	Polypropylene (PP) Metallized	0.27 µF	Through Hole	8 mm	0.709 in	0.315 in	18 mm	250 V	-25 °C	85 °C
Panasonic Electronic Components ECW-F2274RJA	0.295 in	7.5 mm	5 %			Radial	PC Pins	High Frequency Switching	Polypropylene (PP) Metallized	0.27 µF	Through Hole	6.8 mm	0.512 "	0.268 "	13 mm	250 V	-40 C	105 ░C
Panasonic Electronic Components ECW-F2274JAQ	0.394 in	10 mm	5 %	17.4 mm	0.685 in	Radial	PC Pins	High Frequency Switching	Polypropylene (PP) Metallized	0.27 µF	Through Hole	6.8 mm	0.512 "	0.268 "	13 mm	250 V	-40 C	105 ░C	125 V
