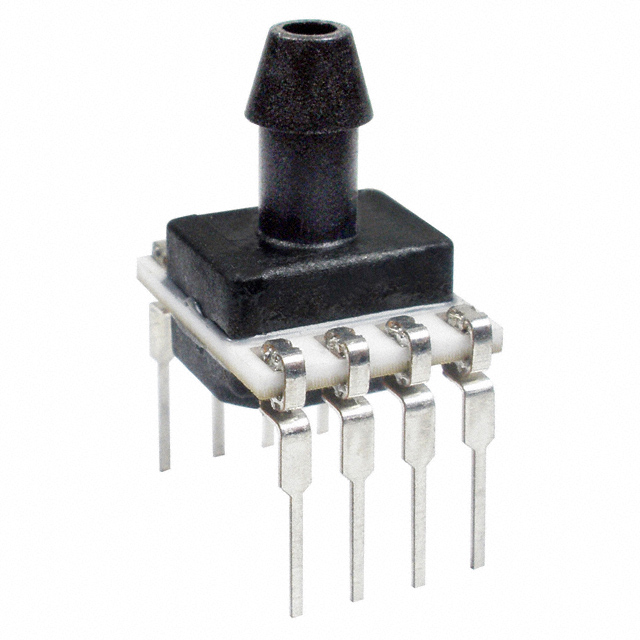

TSCDANN Series

Catalog

SENSOR 100PSIG 0.19" .0305V 8DIP

Part	Supplier Device Package	Package / Case	Package / Case	Output Type	Port Style	Output [Max]	Output	Maximum Pressure [Max]	Maximum Pressure	Voltage - Supply [Max]	Voltage - Supply [Min]	Port Size	Port Size	Port Size	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Features	Termination Style	Pressure Type	Accuracy	Mounting Type	Operating Pressure	Operating Pressure	Maximum Pressure [Max]
Honeywell Sensing and Productivity Solutions TSCDANN100PGUCV	8-DIP	8-DIP Top Port	0.524 in 13.3 mm	Wheatstone Bridge	Barbed	30.5 mV	5V	245 PSI	1689.22 kPa	12 V	1.5 V	Male Tube	0.19 in	4.93 mm	Board Mount	85 °C	-40 C	Temperature Compensated	PC Pin	Vented Gauge	0.15 %	Through Hole	689.48 kPa	100 PSI
Honeywell Sensing and Productivity Solutions TSCDANN005PGUCV	8-DIP	8-DIP Top Port	0.524 in 13.3 mm	Wheatstone Bridge	Barbed	25 mV		30 PSI		12 V	1.5 V	Male Tube	0.19 in	4.93 mm	Board Mount	85 °C	-40 C	Temperature Compensated	PC Pin	Vented Gauge	0.15 %	Through Hole	34.47 kPa	5 PSI	206.84 kPa
Honeywell Sensing and Productivity Solutions TSCDANN015PGUCV	8-DIP	8-DIP Top Port	0.524 in 13.3 mm	Wheatstone Bridge	Barbed	26.25 mV		60 PSI		12 V	1.5 V	Male Tube	0.19 in	4.93 mm	Board Mount	85 °C	-40 C	Temperature Compensated	PC Pin	Vented Gauge	0.15 %	Through Hole	103.42 kPa	15 PSI	413.69 kPa
