EN2C6M Series

Catalog

CONN PLUG MALE 6POS GOLD CRIMP

Part	Connector Type	Orientation	Voltage Rating	Termination	Insert Material	Features	Ingress Protection	Contact Finish - Mating	Shielding	Mounting Type	Applications	Material Flammability Rating	Fastening Type	Contact Material	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Number of Positions	Backshell Material, Plating	Color	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]

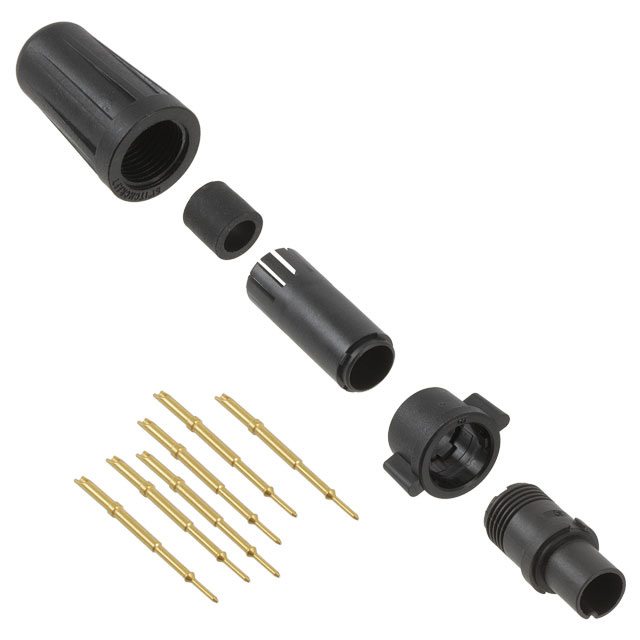

Switchcraft Inc. EN2C6M26G2W	Male Pins Plug	Keyed	125 VAC	Crimp Solder Cup	Elastomer	Backshell Coupling Nut Winged	IP66 IP67 IP68	Gold	Unshielded	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical	UL94 V-0	Bayonet Lock	Copper Alloy	Plastic	85 °C	-40 °C	4.57 mm	3.56 mm	0.14 in	0.18 in	6	Thermoplastic	Black

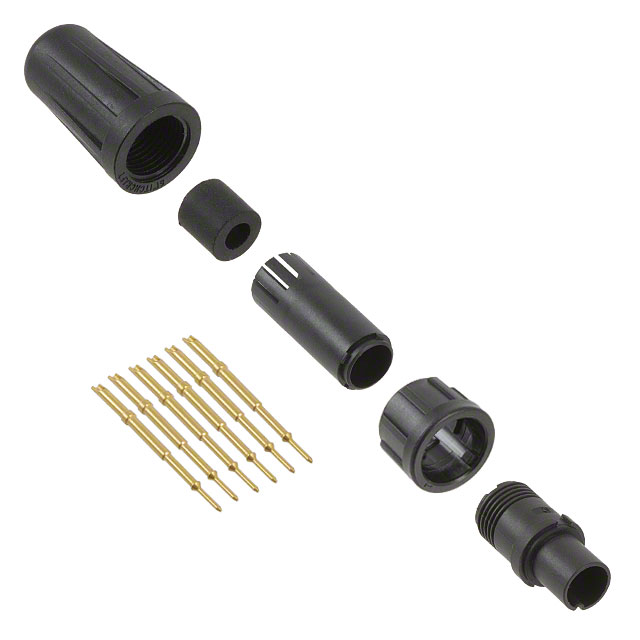

Switchcraft Inc. EN2C6M26G1	Male Pins Plug	Keyed	125 VAC	Crimp Solder Cup	Elastomer	Backshell Coupling Nut	IP66 IP67 IP68	Gold	Unshielded	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical	UL94 V-0	Bayonet Lock	Copper Alloy	Plastic	85 °C	-40 °C					6	Thermoplastic	Black	2.54 mm 3.56 mm	0.1 in 0.14 in

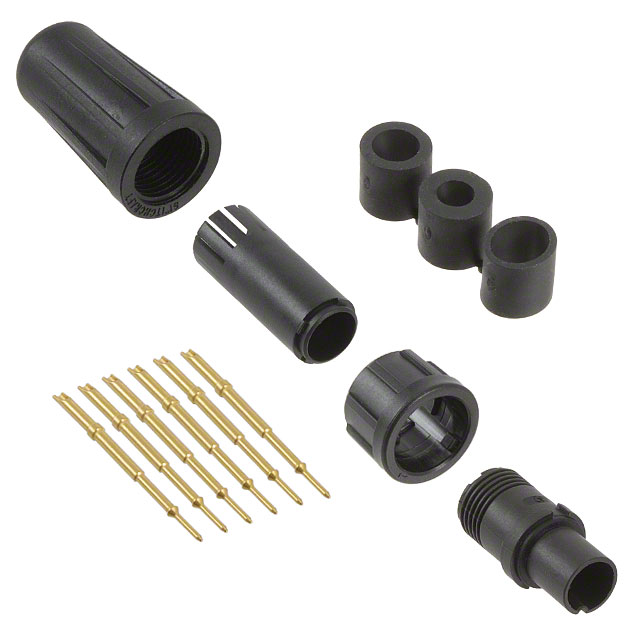

Switchcraft Inc. EN2C6M26DC	Male Pins Plug	Keyed	125 VAC	Crimp Solder Cup	Elastomer	Backshell Coupling Nut	IP66 IP67 IP68	Gold	Unshielded	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical	UL94 V-0	Bayonet Lock	Copper Alloy	Plastic	85 °C	-40 °C					6	Thermoplastic	Black

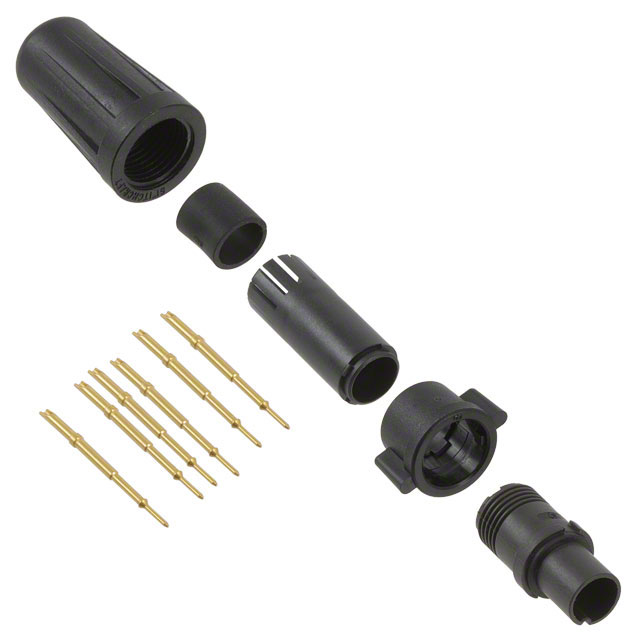

Switchcraft Inc. EN2C6M26G3W	Male Pins Plug	Keyed	125 VAC	Crimp Solder Cup	Elastomer	Backshell Coupling Nut Winged	IP66 IP67 IP68	Gold	Unshielded	Free Hanging (In-Line)	Communication Systems Industrial Marine Medical	UL94 V-0	Bayonet Lock	Copper Alloy	Plastic	85 °C	-40 °C					6	Thermoplastic	Black			0.18 in	0.22 in	4.57 mm	5.59 mm
