FIC-M Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K
CONN RCPT MALE 3P WIRE LEADS
| Part | Applications | Mounting Type | Voltage Rating | Shielding | Contact Finish - Mating | Shell Finish | Backshell Material, Plating | Ingress Protection | Current Rating (Amps) | Primary Material | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shell Material | Features | Shell Size - Insert | Termination | Color | Orientation | Fastening Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

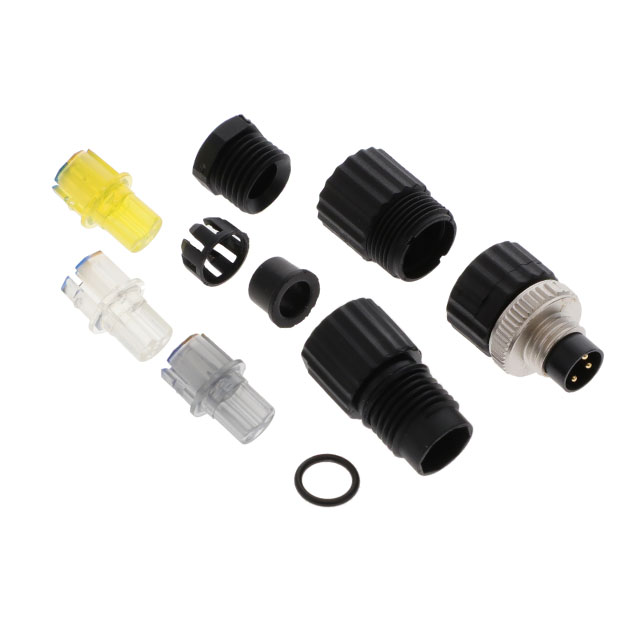

 BANNER ENGINEERING | Automotive Industrial | Free Hanging (In-Line) | 60 VAC | Unshielded | Gold | Nickel | Plastic | IP67 - Dust Tight Waterproof | 4 A | Metal | 0.197 in | 4 mm | 0.157 in | 5 mm | Plastic | -25 °C | 70 °C | Receptacle Male Pins | Zinc Aluminum Alloy | Backshell | M8-5 | Wire Leads | Black Silver | Keyed | Threaded | |

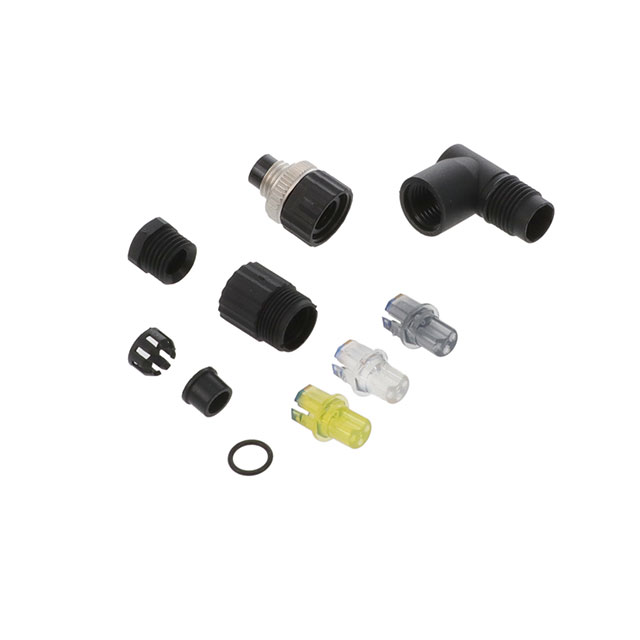

 BANNER ENGINEERING | Automotive Industrial | Free Hanging (In-Line) Right Angle | 60 VAC | Unshielded | Gold | Nickel | Plastic | IP67 - Dust Tight Waterproof | 4 A | Metal | 0.197 in | 4 mm | 0.157 in | 5 mm | Plastic | -25 °C | 70 °C | Receptacle Male Pins | Zinc Aluminum Alloy | Backshell | M8-3 | Wire Leads | Beige Silver | Keyed | Threaded | |

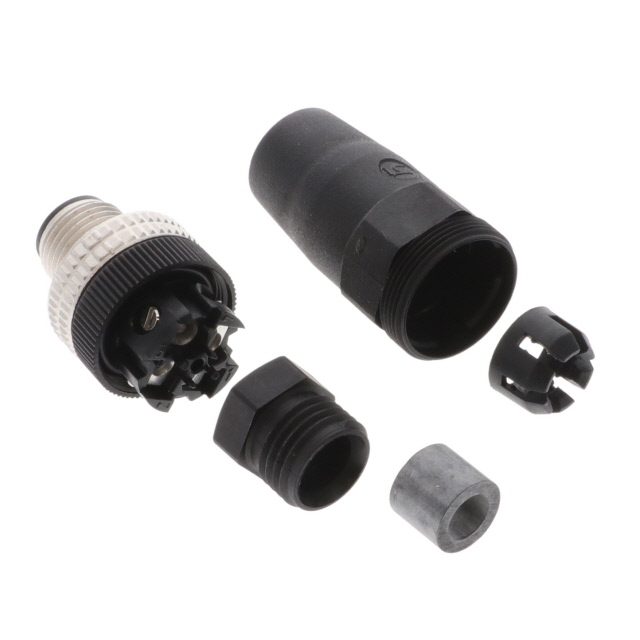

 BANNER ENGINEERING | Automotive Industrial | Free Hanging (In-Line) | 250 VAC | Unshielded | Gold | Nickel | Plastic | IP67 - Dust Tight Waterproof | 4 A | Metal | 0.197 in | 4 mm | 0.157 in | 5 mm | Plastic | -25 °C | 90 °C | Receptacle Male Pins | Zinc Aluminum Alloy | Backshell | M12-4 | Wire Leads | Black Silver | Keyed | Threaded | 4 |

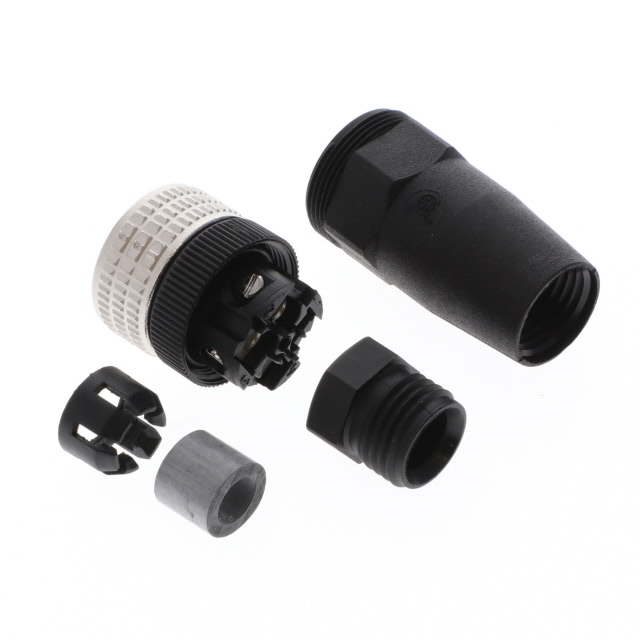

 BANNER ENGINEERING | Automotive Industrial | Free Hanging (In-Line) | 250 VAC | Unshielded | Gold | Nickel | Plastic | IP67 - Dust Tight Waterproof | 4 A | Metal | 0.197 in | 4 mm | 0.157 in | 5 mm | Plastic | -25 °C | 90 °C | Plug Female Sockets | Zinc Aluminum Alloy | Backshell Coupling Nut | M12-4 | Wire Leads | Black Silver | Keyed | Threaded | 4 |

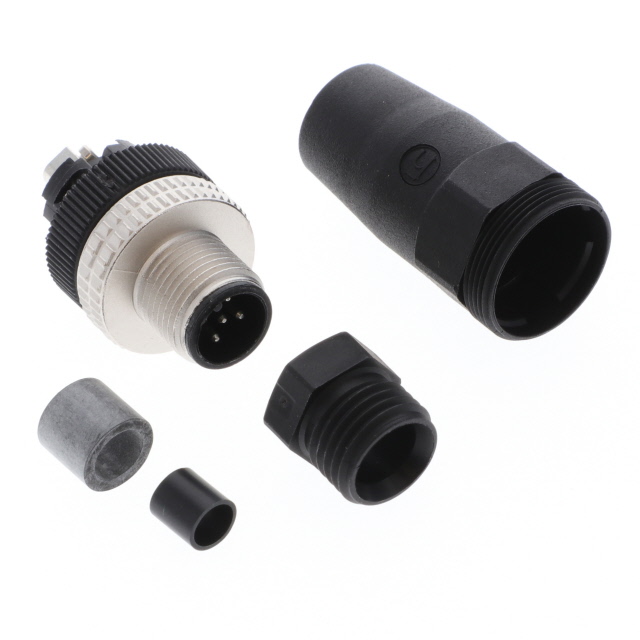

 BANNER ENGINEERING | Automotive Industrial | Free Hanging (In-Line) | 250 VAC | Unshielded | Gold | Nickel | Plastic | IP67 - Dust Tight Waterproof | 4 A | Metal | 0.197 in | 4 mm | 0.157 in | 5 mm | Plastic | -25 °C | 90 °C | Receptacle Male Pins | Zinc Aluminum Alloy | Backshell | M12-5 | Wire Leads | Black Silver | Keyed | Threaded | 5 |

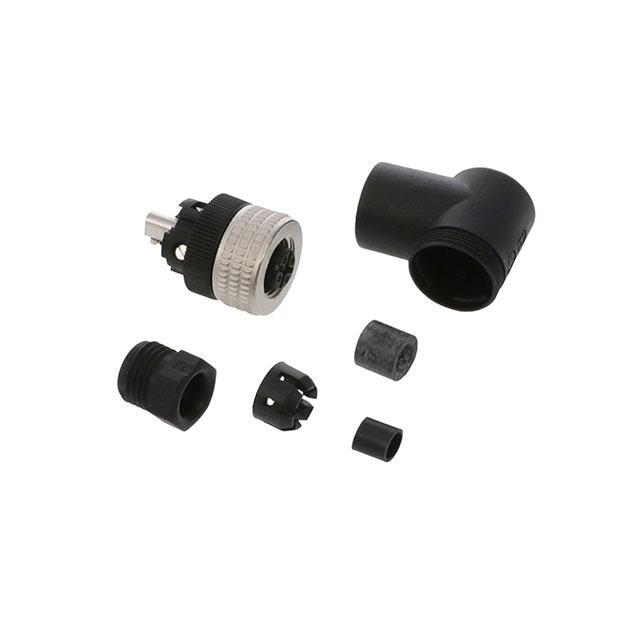

 BANNER ENGINEERING | Automotive Industrial | Free Hanging (In-Line) Right Angle | 50 VAC | Unshielded | Gold | Nickel | Plastic | IP67 - Dust Tight Waterproof | 4 A | Metal | 0.2 " | 4.06 mm | 0.16 " | 5.08 mm | Plastic | -25 °C | 90 °C | Plug Female Sockets | Zinc Aluminum Alloy | Backshell Coupling Nut | M12-5 | Wire Leads | Beige Silver | Keyed | Threaded | 5 |
