DV18 Series

Catalog

CONN QC RCPT 18-22AWG 0.187

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Tab Thickness	Tab Thickness	Insulation	Contact Material	Features	Terminal Type	Length - Overall [x]	Length - Overall [x]	Color	Termination	Gender	Wire Gauge [Max]	Wire Gauge [Min]	Tab Width [x]	Tab Width [x]	Mounting Type	Contact Finish	Length - Overall	Length - Overall	Tab Width	Tab Width

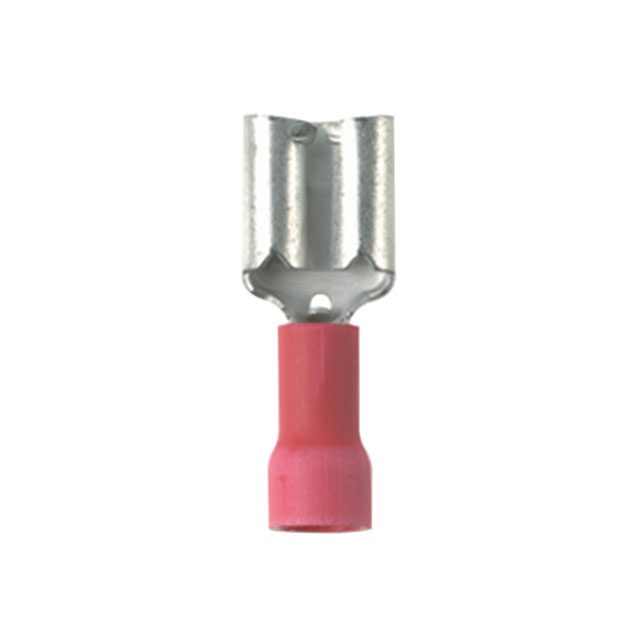

Panduit Corp DV18-187B-CY	0.15 in	3.81 mm	0.81 mm	0.032 in	Non-Mating End Insulated	Brass	Butted Seam	Standard	0.75 in	19.05 mm	Red	Crimp	Female	22 AWG	17.5 AWG	0.187 in	4.75 mm	Free Hanging (In-Line)	Tin
Panduit Corp DV18-188B-CY	0.15 in	3.81 mm	0.51 mm	0.02 in	Non-Mating End Insulated	Brass	Butted Seam Serrated Termination	Standard	0.76 "	19.3 mm	Red	Crimp	Female	22 AWG	17.5 AWG	0.187 in	4.75 mm	Free Hanging (In-Line)	Tin

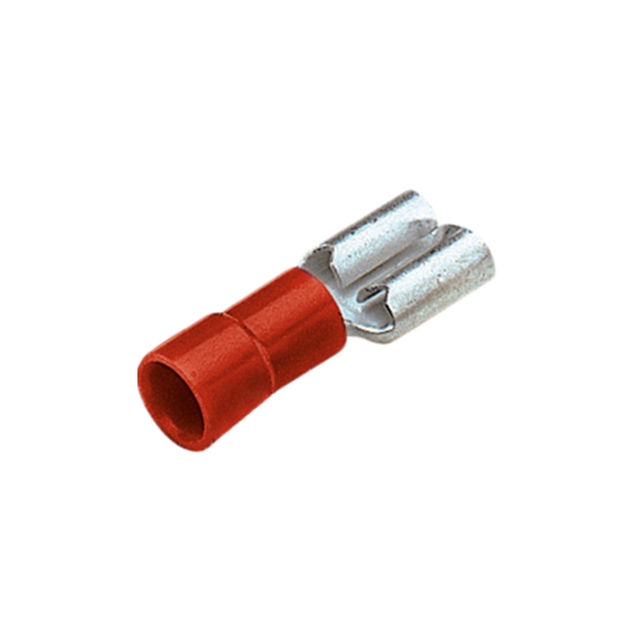

Panduit Corp DV18-187B-3K	0.15 in	3.81 mm	0.81 mm	0.032 in	Non-Mating End Insulated	Brass	Butted Seam Serrated Termination	Standard			Red	Crimp	Female	22 AWG	17.5 AWG	0.187 in	4.75 mm	Free Hanging (In-Line)	Tin	0.77 in	19.56 mm
Panduit Corp DV18-205B-3K	0.15 in	3.81 mm	0.81 mm	0.032 in	Non-Mating End Insulated	Brass	Butted Seam Serrated Termination	Standard			Red	Crimp	Female	22 AWG	17.5 AWG			Free Hanging (In-Line)	Tin	0.77 in	19.56 mm	0.187 " 0.205 in	4.75 mm 5.21 mm
Panduit Corp DV18-206B-MY	0.15 in	3.81 mm	0.51 mm	0.02 in	Non-Mating End Insulated	Brass	Butted Seam	Standard			Red	Crimp	Female	22 AWG	17.5 AWG			Free Hanging (In-Line)	Tin			0.187 " 0.205 in	4.75 mm 5.21 mm

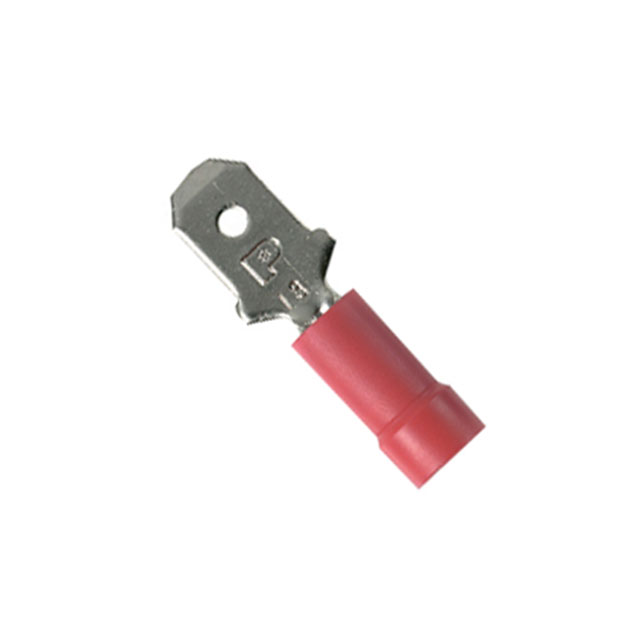

Panduit Corp DV18-250MB-CY	0.154 "	3.91 mm	0.81 mm	0.032 in	Non-Mating End Insulated	Copper	Butted Seam	Standard	0.98 in	24.89 mm	Red	Crimp	Male	22 AWG	17.5 AWG	0.25 in	6.35 mm	Free Hanging (In-Line)	Nickel

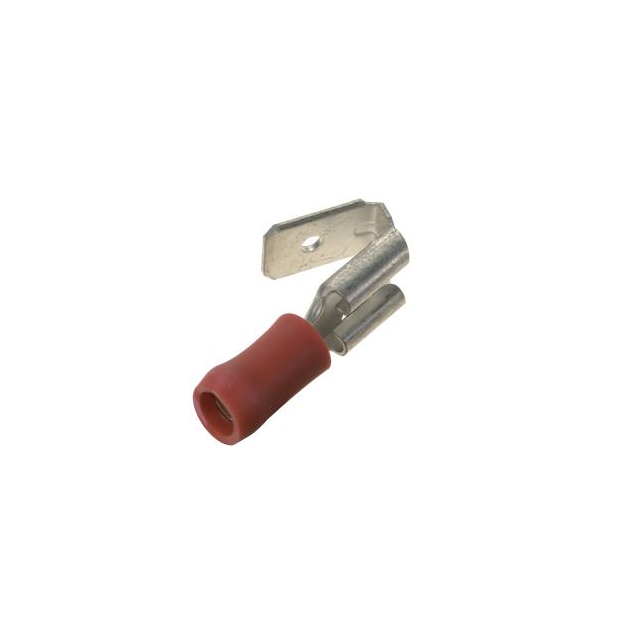

Panduit Corp DV18-250P-MYY	0.13 in	3.3 mm	0.81 mm	0.032 in	Non-Mating End Insulated	Brass	Serrated Termination	Stacked	0.88 in	22.35 mm	Red	Crimp	Female Male	22 AWG	17.5 AWG	0.25 in	6.35 mm	Free Hanging (In-Line)	Tin

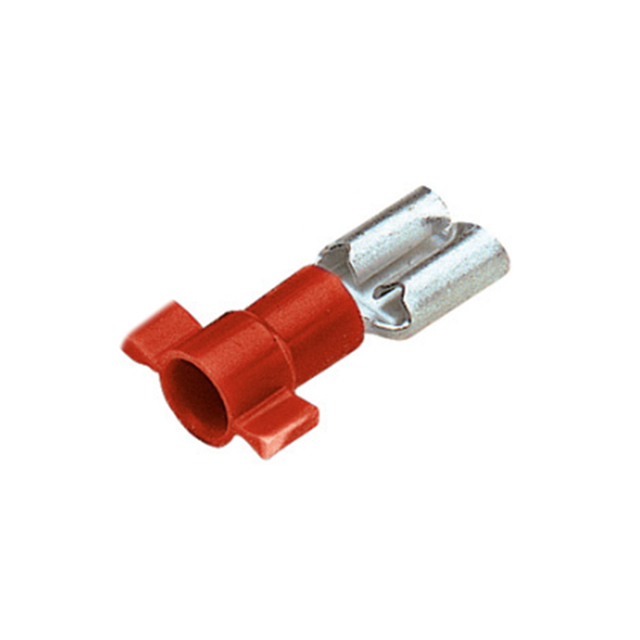

Panduit Corp DV18-250B-3K	0.15 in	3.81 mm	0.81 mm	0.032 in	Non-Mating End Insulated	Brass	Butted Seam Serrated Termination	Standard	0.83 in	21.08 mm	Red	Crimp	Female	22 AWG	17.5 AWG	0.25 in	6.35 mm	Free Hanging (In-Line)	Tin
Panduit Corp DV18-250MB-MY	0.154 "	3.91 mm	0.81 mm	0.032 in	Non-Mating End Insulated	Copper	Butted Seam	Standard	0.98 in	24.89 mm	Red	Crimp	Male	22 AWG	17.5 AWG	0.25 in	6.35 mm	Free Hanging (In-Line)	Nickel
Panduit Corp DV18-250B-CY	0.15 in	3.81 mm	0.81 mm	0.032 in	Non-Mating End Insulated	Brass	Butted Seam Serrated Termination	Standard	0.81 "	20.57 mm	Red	Crimp	Female	22 AWG	17.5 AWG	0.25 in	6.35 mm	Free Hanging (In-Line)	Tin
