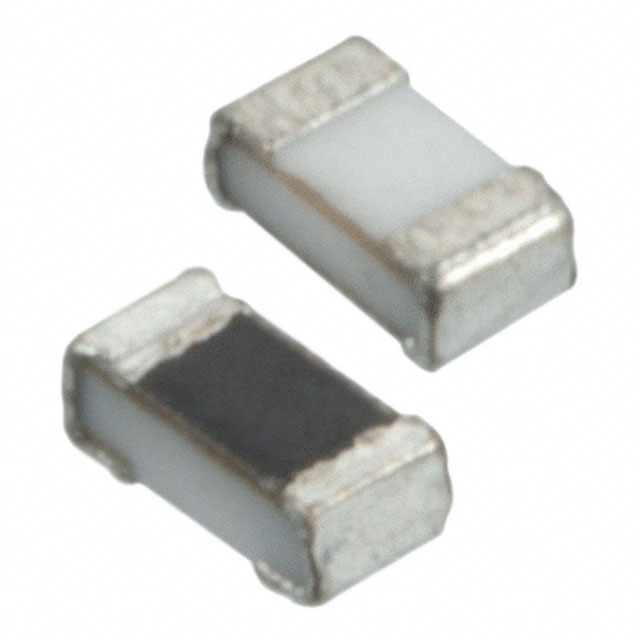

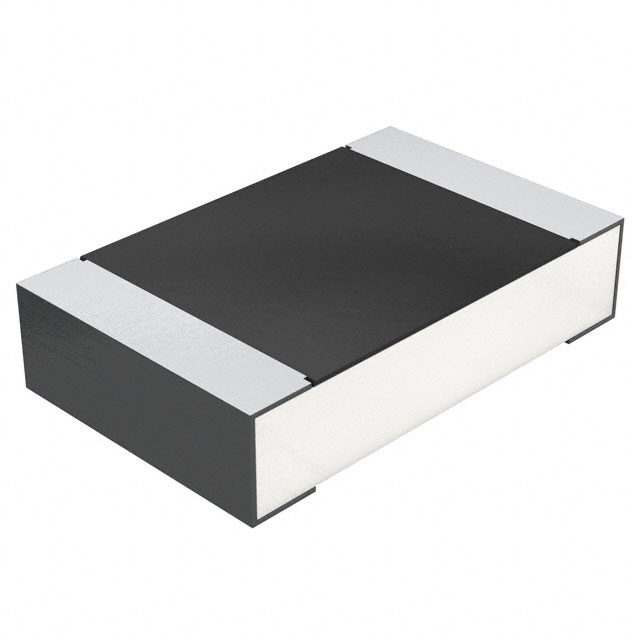

URG Series

Manufacturer: Susumu

Catalog

THIN FILM CHIP RESISTORS 0805 SIZE, 1/10W, 10 KOHM, 0.01%, 2PPM

Part	Ratings	Temperature Coefficient	Features	Power (Watts)	Power (Watts)	Package / Case	Resistance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Number of Terminations [custom]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Composition	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Size / Dimension [y]
Susumu URG2012L-103-L-T05	AEC-Q200	2 ppm/°C	Anti-Sulfur Automotive AEC-Q200	0.1 W	0.1 W	0805	10000 Ohms	0.55 mm	0.022 in	0.01 %	2	2 mm	1.25 mm	0.049 "	0.079 in	Thin Film	0805	155 C	-55 C
Susumu URG1608L-331-L-T05	AEC-Q200	2 ppm/°C	Anti-Sulfur Automotive AEC-Q200	0.063 W	0.0625 W	0603	330 Ohms	0.55 mm	0.022 in	0.01 %	2	1.6 mm		0.031 in	0.063 "	Thin Film		155 C	-55 C	1608 Metric	0.8 mm
Susumu URG1608L-151-L-T05	AEC-Q200	2 ppm/°C	Anti-Sulfur Automotive AEC-Q200	0.063 W	0.0625 W	0603	150 Ohms	0.55 mm	0.022 in	0.01 %	2	1.6 mm		0.031 in	0.063 "	Thin Film		155 C	-55 C	1608 Metric	0.8 mm
Susumu URG3216L-103-L-T05		2 ppm/°C	Anti-Sulfur Automotive AEC-Q200	0.25 W	0.25 W	1206 (3216 Metric)	10000 Ohms	0.55 mm	0.022 in	0.01 %	2	3.2 mm	1.6 mm	0.063 "	0.126 "	Thin Film	1206	155 C	-55 C
