ED790 Series

Catalog

TERM BLK 4POS SIDE ENTRY 5MM PCB

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating	Torque - Screw	Torque - Screw	Housing Material	Clamp Material - Plating	Screw Thread	Color	Mating Orientation	Number of Levels	Wire Gauge [Max]	Wire Gauge [Min]	Positions Per Level	Mounting Type	Current	Voltage	Wire Termination	Pitch	Pitch	Positions Per Level [custom]

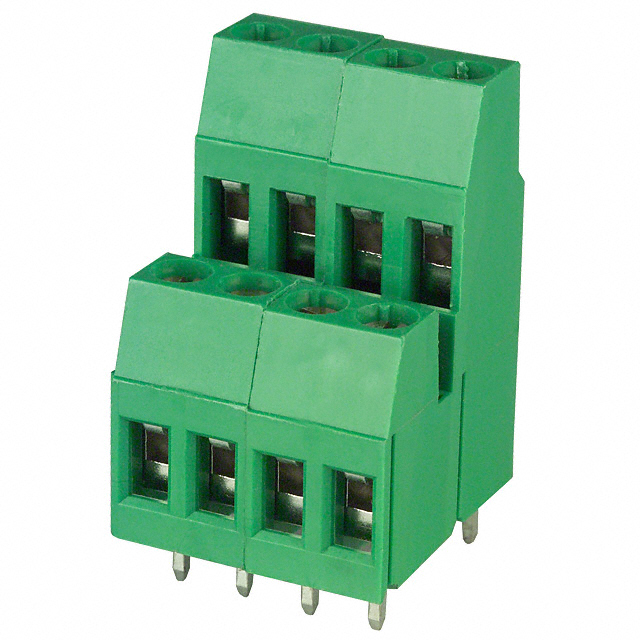

On Shore Technology Inc. ED790/4	-30 ░C	105 ░C	Brass	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Copper	M3	Green	Horizontal with Board	2	30 AWG	12 AWG	4	Through Hole	20 A	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm

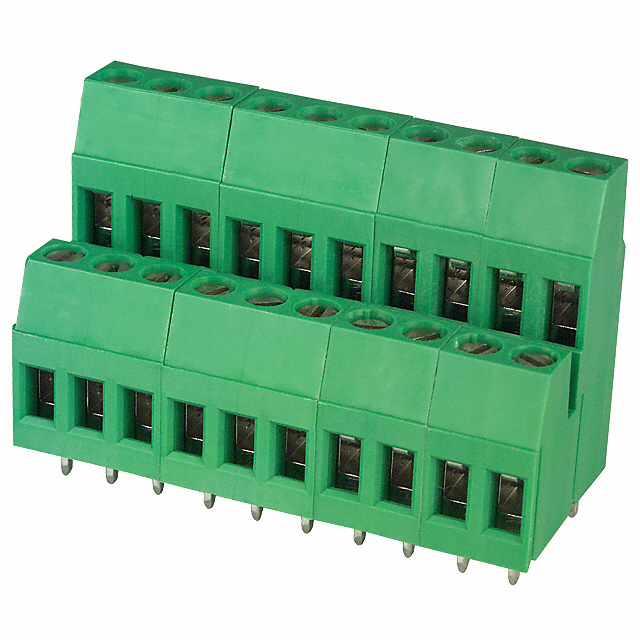

On Shore Technology Inc. ED790/10	-30 ░C	105 ░C	Brass	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Copper	M3	Green	Horizontal with Board	2	30 AWG	12 AWG	10	Through Hole	20 A	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm

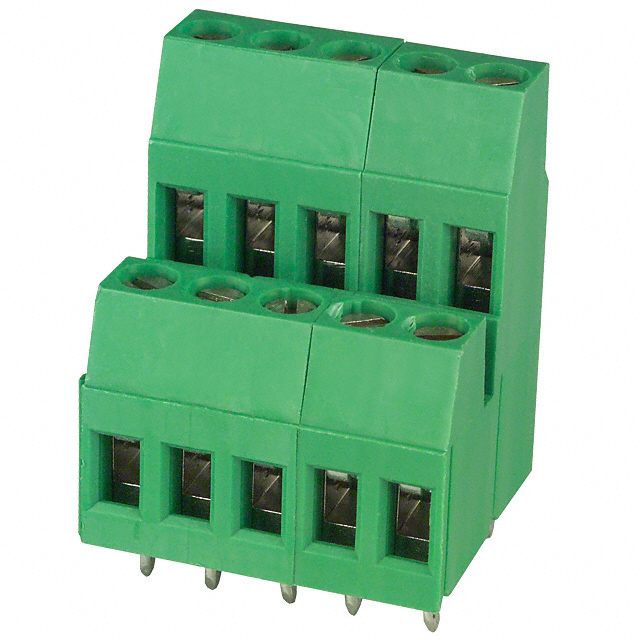

On Shore Technology Inc. ED790/5	-30 ░C	105 ░C	Brass	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Copper	M3	Green	Horizontal with Board	2	30 AWG	12 AWG	5	Through Hole	20 A	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm

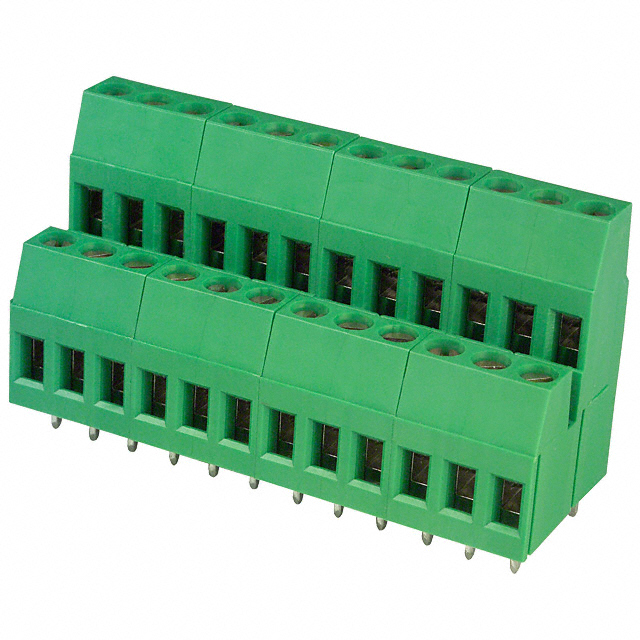

On Shore Technology Inc. ED790/12	-30 ░C	105 ░C	Brass	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Copper	M3	Green	Horizontal with Board	2	30 AWG	12 AWG	12	Through Hole	20 A	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm

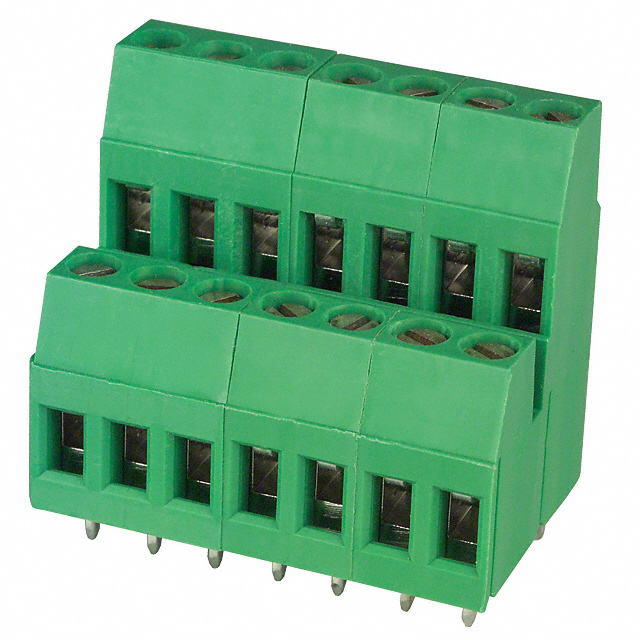

On Shore Technology Inc. ED790/7	-30 ░C	105 ░C	Brass	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Copper	M3	Green	Horizontal with Board	2	30 AWG	12 AWG		Through Hole	20 A	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm	7

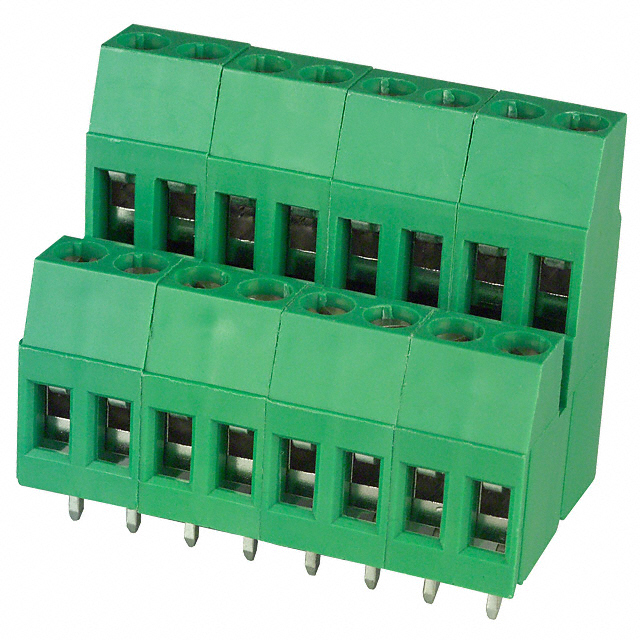

On Shore Technology Inc. ED790/8	-30 ░C	105 ░C	Brass	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Copper	M3	Green	Horizontal with Board	2	30 AWG	12 AWG	8	Through Hole	20 A	300 VDC	Screw - Rising Cage Clamp	0.197 in	5 mm
