HMC504 Series

Catalog

RF AMPLIFIER, 14GHZ TO 27GHZ, 19 DB GAIN, LCC-EP-24, -40 °C TO 85 °C

Part	Mounting Type	Current - Supply	P1dB	Gain	Supplier Device Package	RF Type	Package / Case	Noise Figure	Frequency [Min]	Frequency [Max]	Voltage - Supply	Test Frequency [Max]	Test Frequency [Min]	For Use With/Related Products	Supplied Contents	Utilized IC / Part	Contents	Type
Analog Devices Inc./Maxim Integrated HMC504LC4B	Surface Mount	90 mA	17 dBm	19 dB	24-CLCC (3.9x3.9)	General Purpose	24-TFCQFN Exposed Pad	2.2 dB	14 GHz	27 GHz	4 V
Analog Devices Inc./Maxim Integrated HMC504LC4BTR-R5	Surface Mount	90 mA	17 dBm	19 dB	24-CLCC (3.9x3.9) 24-QFN (4x4)		24-TFCQFN Exposed Pad 24-TFQFN Exposed Pad	4.5 dB	14 GHz	27 GHz	4 V	27 GHz	14 GHz

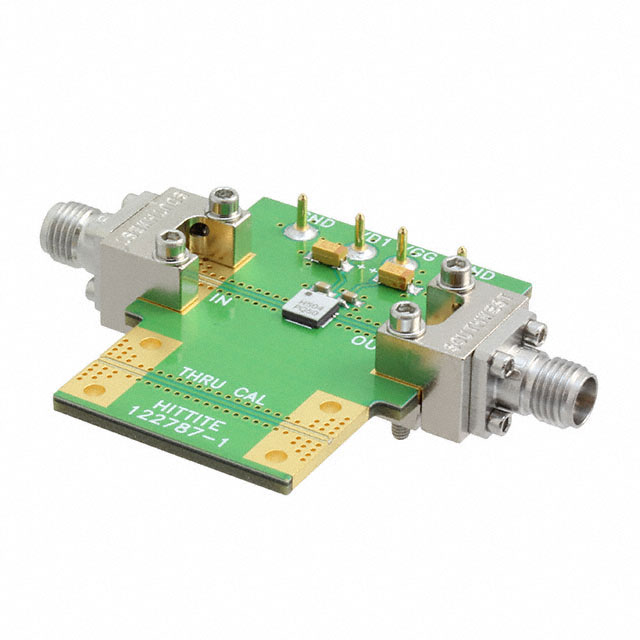

Analog Devices Inc./Maxim Integrated 122789-HMC504LC4B									14 GHz	27 GHz				HMC504LC4B	Board(s)	HMC504LC4B	Board(s)	Amplifier
Analog Devices Inc./Maxim Integrated HMC504LC4BTR	Surface Mount	90 mA	17 dBm	19 dB	24-CLCC (3.9x3.9) 24-QFN (4x4)	General Purpose	24-TFCQFN Exposed Pad 24-TFQFN Exposed Pad	2.2 dB	14 GHz	27 GHz	4 V
