AFL22A Series
Manufacturer: Delta Electronics
Beta
⌘K

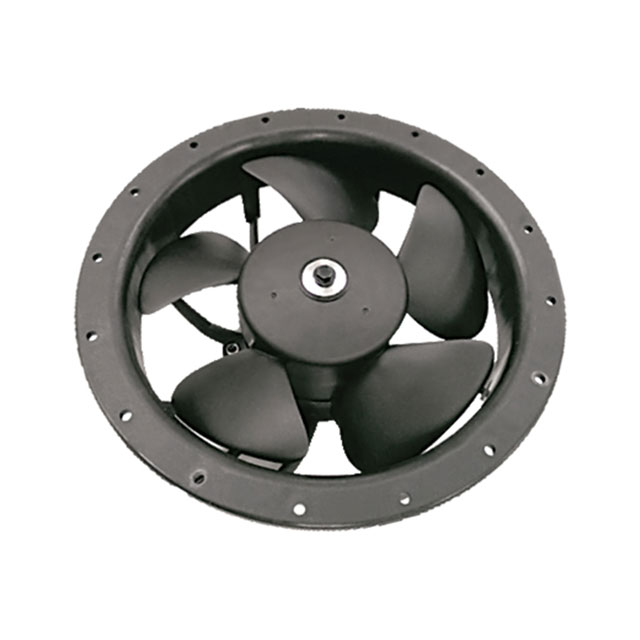

222X222X78MM 115 / 230V AC FAN W
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Material - Blade | Features | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated [Max] | Voltage - Rated [Min] | Ingress Protection | Air Flow | Air Flow | Noise | Size / Dimension [diameter] | Size / Dimension | Power (Watts) | Termination | RPM [Min] | RPM [Max] | Static Pressure | Static Pressure | Fan Type | Width [x] | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 100 VAC | 240 VAC | Plastic | Plastic | Dual Speed Dual Voltage Electronic Commutation (EC) Locked Rotor Protection Thermal Overload Protector (TOP) | -40 °C | 55 °C | -40 C | 55 °C | 230 VAC | 115 VAC | IP56 - Dust Protected Water Resistant | 9.07 m³/min | 323.9 CFM | 57 dB | 222 mm | Round | 8 W 17 W | 3 Wire Leads | 1800 RPM | 2500 RPM | 156.9 Pa | 0.63 in H2O | Tubeaxial | 85.7 mm | Ball |
