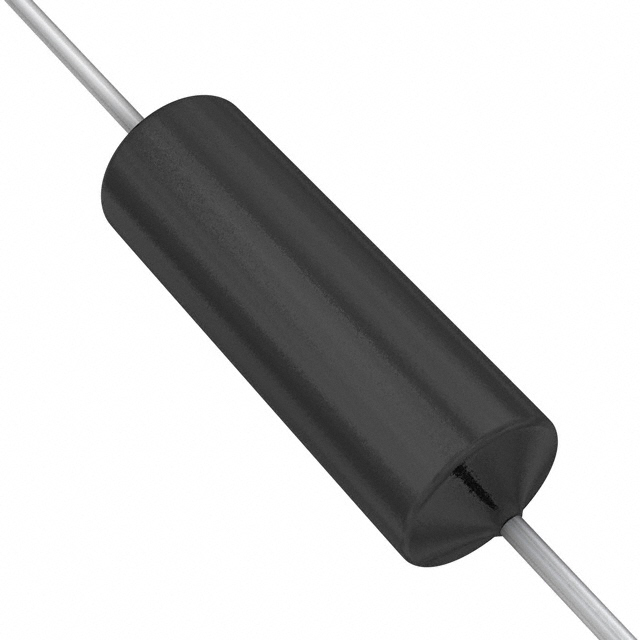

CW-High Energy Series

Catalog

WIREWOUND RESISTORS - THROUGH HOLE CW-10-HE 16 5% E73 E3

Part	Composition	Power (Watts)	Package Name	Temperature Coefficient	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Diameter	Tolerance	Resistance	Package / Case	Number of Terminations
Vishay Dale CW01016R00JE73HE	Wirewound	13 W	Axial	30 ppm/¯C	350 °C	-65 °C	1.781 in	0.375 in	5 %	16 Ohm	Axial	2
Vishay Dale CW010270R0JE73HE	Wirewound	13 W	Axial	30 ppm/¯C	350 °C	-65 °C	1.781 in	0.375 in	5 %	270 Ohm	Axial	2
Vishay Dale CW005120R0JE12HE	Wirewound	6.5 W	Axial	30 ppm/¯C	350 °C	-65 °C	0.875 in	0.312 in	5 %	120 Ohm	Axial	2
Vishay Dale CW005160R0JE73HE	Wirewound	6.5 W	Axial	30 ppm/¯C	350 °C	-65 °C	0.875 in	0.312 in	5 %	160 Ohm	Axial	2
Vishay Dale CW005250R0JE73HE	Wirewound	6.5 W	Axial	30 ppm/¯C	350 °C	-65 °C	0.875 in	0.312 in	5 %	250 Ohm	Axial	2
Vishay Dale CW005150R0JE73HE	Wirewound	6.5 W	Axial	30 ppm/¯C	350 °C	-65 °C	0.875 in	0.312 in	5 %	150 Ohm	Axial	2
Vishay Dale CW00520R00JE73HE	Wirewound	6.5 W	Axial	30 ppm/¯C	350 °C	-65 °C	0.875 in	0.312 in	5 %	20 Ohm	Axial	2
Vishay Dale CW01043R00JE73HE	Wirewound	13 W	Axial	30 ppm/¯C	350 °C	-65 °C	1.781 in	0.375 in	5 %	43 Ohm	Axial	2
Vishay Dale CW010110R0JE12HE	Wirewound	13 W	Axial	30 ppm/¯C	350 °C	-65 °C	1.781 in	0.375 in	5 %	110 Ohm	Axial	2
Vishay Dale CW00533R00JE73HE	Wirewound	6.5 W	Axial	30 ppm/¯C	350 °C	-65 °C	0.875 in	0.312 in	5 %	33 Ohms	Axial	2
