08K118 Series
Manufacturer: Rosenberger
Beta
⌘K

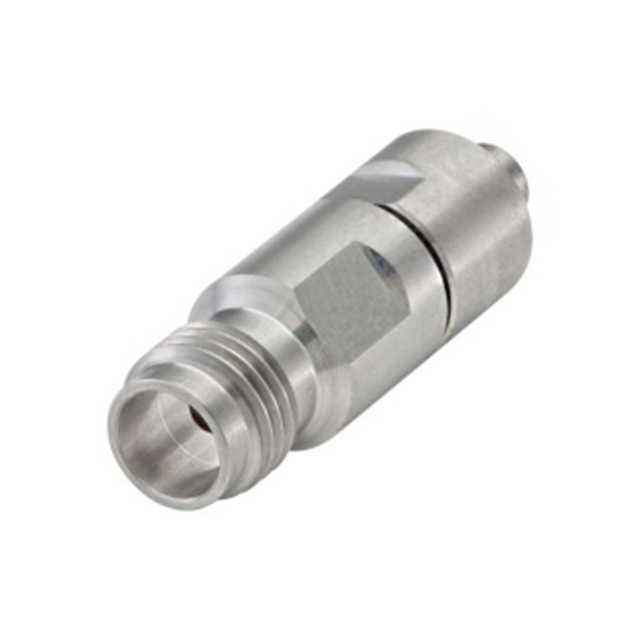

PRECISION 1.85 ADAPTER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Body Material | Dielectric Material | Insertion Loss | Center Contact Material | Conversion Type | Mounting Type | Impedance | Style | Convert From (Adapter End) | Frequency - Max [Max] | Adapter Series | Convert To (Adapter End) | Adapter Type | Fastening Type | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 85 °C | -40 C | 500 | Stainless Steel | Polyetheretherketone (PEEK) | 0.4 dB | Beryllium Copper | Between Series | Free Hanging (In-Line) | 50 Ohms | Straight | 1.85mm Jack Female Socket | 65 GHz | Mini RPC-1.85 SMP | SMP Mini Plug Male Pin | Plug to Jack | Snap-On Threaded | Gold |
