10-473 Series
Manufacturer: Coax Connectors Ltd
Beta
⌘K

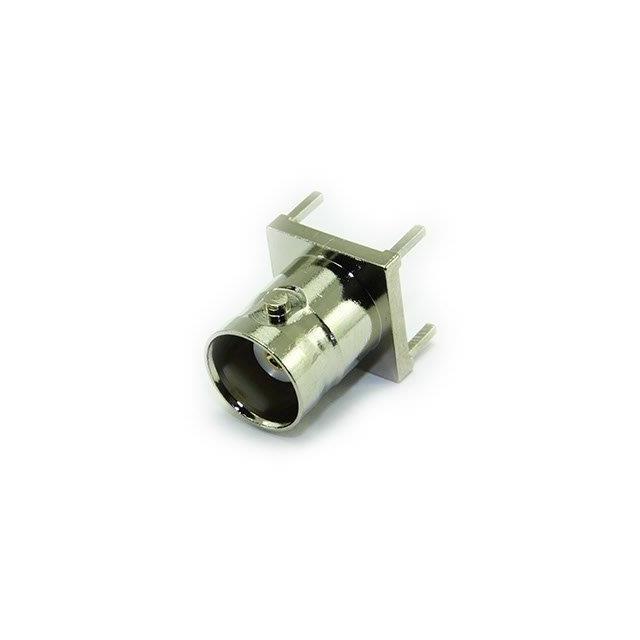

BNC PCB RECEPTACLE,50 OHM,SQUARE
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Body Material | Center Contact Plating | Mating Cycles | Body Finish | Dielectric Material | Center Contact Material | Contact Termination | Connector Type | Mounting Type | Impedance | Fastening Type | Shield Termination | Frequency - Max | Housing Color | Ingress Protection Description | Ingress Protection IP Rating | Number of Ports | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Coax Connectors Ltd | 155 °C | -55 °C | Brass | Gold | 500 cycles | Nickel | Polytetrafluoroethylene (PTFE) | Phosphor Bronze | Solder | Female Socket Jack | Through Hole | 50 Ohm | Bayonet Lock | Solder | 3 GHz | Silver | Dust Tight Water Resistant | IP64 | 1 | BNC |
