045985 Series

Manufacturer: Molex

Catalog

Catalog

CONN PLUG LPHPOWER 24POS PCB

...

Part	Number of Rows	Number of Positions	Connector Style	Pitch [x]	Pitch [x]	Termination	Material Flammability Rating	Contact Finish	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Finish Thickness	Contact Finish Thickness	Features	Color	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Molex 0459854333	2	24	LPHPower	0.05 in	1.27 mm	Solder	UL94 V-0	Gold	20	4	0.76 Ám	30 Áin	Board Guide	Black	All	-40 °C	105 ░C	Through Hole Right Angle
Molex 0459854141	2	28	LPHPower	0.05 in	1.27 mm	Solder	UL94 V-0	Gold	24	4	0.76 Ám	30 Áin		Black	All	-40 °C	105 ░C	Through Hole Right Angle

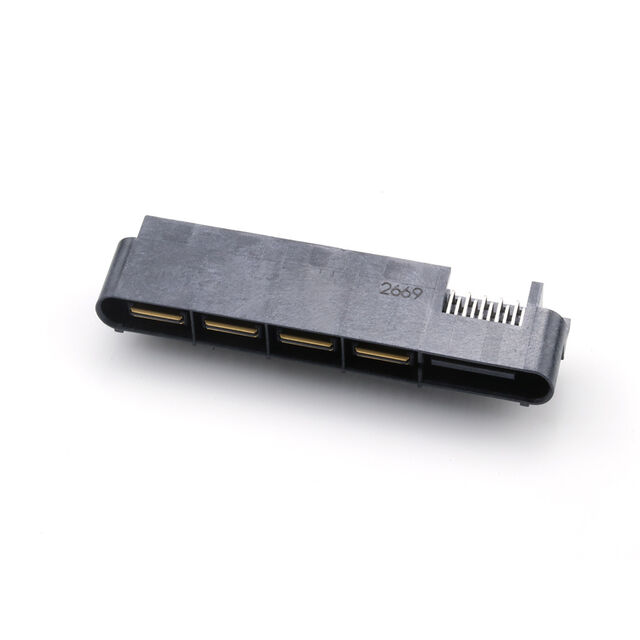

Molex 0459858232	2	28	LPHPower	0.05 in	1.27 mm	Solder	UL94 V-0	Gold	20	8	0.76 Ám	30 Áin	Mating Guide	Black	All	-40 °C	105 ░C	Through Hole Right Angle
Molex 0459854352	2		LPHPower	0.05 in	1.27 mm	Solder	UL94 V-0	Gold	28	4	0.76 Ám	30 Áin	Board Guide	Black	All	-40 °C	105 ░C	Through Hole Right Angle
Molex 0459851172	2	46	LPHPower	0.05 in	1.27 mm	Solder	UL94 V-0	Gold	36	10	0.76 Ám	30 Áin		Black	All	-40 °C	105 ░C	Through Hole Right Angle
Molex 0459851373	2	46	LPHPower	0.05 in	1.27 mm	Solder	UL94 V-0	Gold	36	10	0.76 Ám	30 Áin	Board Guide	Black	All	-40 °C	105 ░C	Through Hole Right Angle
Molex 0459854241	2	28	LPHPower	0.05 in	1.27 mm	Solder	UL94 V-0	Gold	24	4	0.76 Ám	30 Áin	Mating Guide	Black	All	-40 °C	105 ░C	Through Hole Right Angle
Molex 0459851273	2	46	LPHPower	0.05 in	1.27 mm	Solder	UL94 V-0	Gold	36	10	0.76 Ám	30 Áin	Mating Guide	Black	All	-40 °C	105 ░C	Through Hole Right Angle
Molex 0459854233	2	24	LPHPower	0.05 in	1.27 mm	Solder	UL94 V-0	Gold	20	4	0.76 Ám	30 Áin	Mating Guide	Black	All	-40 °C	105 ░C	Through Hole Right Angle
Molex 0459858451	2	36	LPHPower	0.05 in	1.27 mm	Solder	UL94 V-0	Gold	28	8	0.76 Ám	30 Áin	Board Guide Mating Guide	Black	All	-40 °C	105 ░C	Through Hole Right Angle
