ISPLSI 2096A Series

Manufacturer: Lattice Semiconductor Corporation

Catalog

IC CPLD 96MC 7.5NS 128QFP

Part	Supplier Device Package	Number of Logic Elements/Blocks	Programmable Type	Delay Time tpd(1) Max [Max]	Number of I/O	Package / Case	Number of Gates	Mounting Type	Number of Macrocells	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]
Lattice Semiconductor Corporation ISPLSI 2096A-125LQ128	128-PQFP (28x28)	24	In System Programmable	7.5 ns	96	128-BQFP	4000	Surface Mount	96	0 °C	70 °C	4.75 V	5.25 V
Lattice Semiconductor Corporation ISPLSI 2096A-100LQN128	128-PQFP (28x28)	24	In System Programmable	10 ns	96	128-BQFP	4000	Surface Mount	96	0 °C	70 °C	4.75 V	5.25 V
Lattice Semiconductor Corporation ISPLSI 2096A-80LQN128I	128-PQFP (28x28)	24	In System Programmable	15 ns	96	128-BQFP	4000	Surface Mount	96	-40 ¯C	85 C	4.5 V	5.5 V

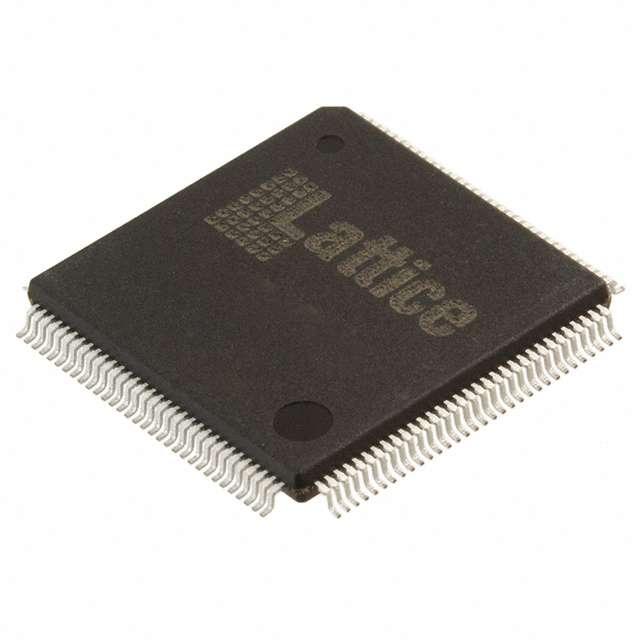

Lattice Semiconductor Corporation ISPLSI 2096A-100LTN128	128-TQFP (14x14)	24	In System Programmable	10 ns	96	128-LQFP	4000	Surface Mount	96	0 °C	70 °C	4.75 V	5.25 V
Lattice Semiconductor Corporation ISPLSI 2096A-80LTN128I	128-TQFP (14x14)	24	In System Programmable	15 ns	96	128-LQFP	4000	Surface Mount	96	-40 ¯C	85 C	4.5 V	5.5 V
Lattice Semiconductor Corporation ISPLSI 2096A-80LQN128	128-PQFP (28x28)	24	In System Programmable	15 ns	96	128-BQFP	4000	Surface Mount	96	0 °C	70 °C	4.75 V	5.25 V
Lattice Semiconductor Corporation ISPLSI 2096A-125LTN128	128-TQFP (14x14)	24	In System Programmable	7.5 ns	96	128-LQFP	4000	Surface Mount	96	0 °C	70 °C	4.75 V	5.25 V
Lattice Semiconductor Corporation ISPLSI 2096A-100LQ128	128-PQFP (28x28)	24	In System Programmable	10 ns	96	128-BQFP	4000	Surface Mount	96	0 °C	70 °C	4.75 V	5.25 V
