2904 Series

Catalog

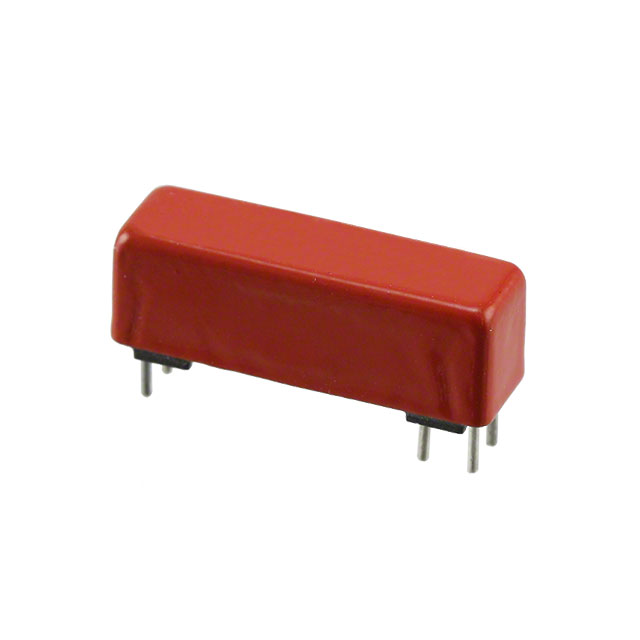

RELAY REED SPST 500MA 12V

Part	Coil Resistance	Contact Form	Mounting Type	Operate Time	Switching Voltage [Max]	Must Release Voltage	Contact Rating (Current)	Release Time	Coil Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Coil Voltage	Coil Current
COTO TECHNOLOGY 2904-12-301	1.5 kOhms	SPST-NO (1 Form A)	Through Hole	500 µs	200 VDC 200 VAC	1 VDC	0.5 A	0.1 ms	Non Latching	PC Pin	85 °C	-20 ░C	9 VDC	12 VDC
COTO TECHNOLOGY 2904-05-411	370 Ohms	SPST-NO (1 Form A)	Through Hole	500 µs	200 VDC 200 VAC	0.4 VDC	0.5 A	0.1 ms	Non Latching	PC Pin	85 °C	-20 ░C	3.8 VDC	5 VDC	13.5 mA
COTO TECHNOLOGY 2904-05-421	370 Ohms	SPST-NO (1 Form A)	Through Hole	500 µs	200 VDC 200 VAC	0.4 VDC	0.5 A	0.1 ms	Non Latching	PC Pin	85 °C	-20 ░C	3.8 VDC	5 VDC	13.5 mA
COTO TECHNOLOGY 2904-12-311	1.5 kOhms	SPST-NO (1 Form A)	Through Hole	500 µs	200 VDC 200 VAC	1 VDC	0.5 A	0.1 ms	Non Latching	PC Pin	85 °C	-20 ░C	9 VDC	12 VDC
COTO TECHNOLOGY 2904-05-401	370 Ohms	SPST-NO (1 Form A)	Through Hole	500 µs	200 VDC 200 VAC	0.4 VDC	0.5 A	0.1 ms	Non Latching	PC Pin	85 °C	-20 ░C	3.8 VDC	5 VDC	13.5 mA
COTO TECHNOLOGY 2904-12-321	1.5 kOhms	SPST-NO (1 Form A)	Through Hole	500 µs	200 VDC 200 VAC	1 VDC	0.5 A	0.1 ms	Non Latching	PC Pin	85 °C	-20 ░C	9 VDC	12 VDC
