310 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Contact Finish Thickness	Contact Finish Thickness	Card Type	Read Out	Contact Type	Number of Rows	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Gender	Mounting Type	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Contact Material	Contact Finish	Color	Number of Rows [custom]

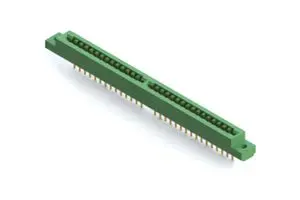

EDAC Inc. 310-030-527-104	0.25 Ám	10 Áin	Non Specified - Dual Edge	Single	Semi Bellows	1	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	30	-40 C	105 ░C	Solder	30	Copper Alloy	Gold	Green
EDAC Inc. 310-030-501-108	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening			3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	30	-40 C	105 ░C	Solder Eyelet(s)	60	Copper Alloy	Gold	Green	2
EDAC Inc. 310-030-531-102	0.25 Ám	10 Áin	Non Specified - Dual Edge	Single	Semi Bellows	1	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	30	-40 C	105 ░C	Solder	30	Copper Alloy	Gold	Green
EDAC Inc. 310-030-501-102	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Semi Bellows		Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	30	-40 C	105 ░C	Solder Eyelet(s)	60	Copper Alloy	Gold	Green	2
EDAC Inc. 310-030-541-107	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Semi Bellows		Flush Mount M3 Threaded Insert Top Opening			3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	30	-40 C	105 ░C	Wire Wrap	60	Copper Alloy	Gold	Green	2
