XR79 Series

Catalog

NON-ISOLATED DC/DC CONVERTERS 15A POWER MODULE IN 12X12X4MM PACKAGE USING PATENTED EMULATED CURRENT MODE COT CONTROL

Part	Current - Output (Max) [Max]	Efficiency	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Voltage - Input (Min) [Min]	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Mounting Type	Number of Outputs	Voltage - Input (Max) [Max]	Type	Applications

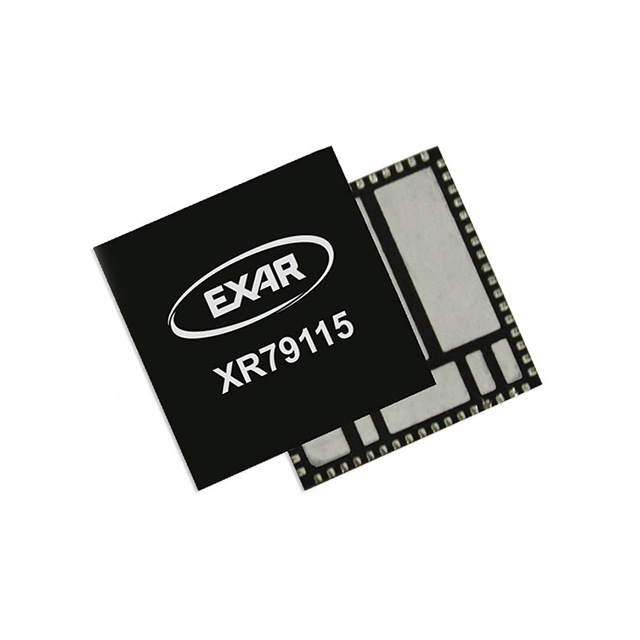

MaxLinear, Inc. XR79115EL-F	15 A	96 %	68-PowerBQFN Module	68-QFN (12x12)	125 °C	-40 C	4 mm	0.47 "	0.47 in	12 mm	0.16 in	12 mm	OCP OTP SCP UVLO	4.5 V	0.6 V	5.5 V	Surface Mount	1	22 V	Non-Isolated PoL Module	ITE (Commercial)
MaxLinear, Inc. XR79106EL-F	6 A	95 %	56-PowerBFQFN Module	56-QFN (8x8)	125 °C	-40 C	4 mm	0.31 in	0.31 "	8 mm	0.16 in	8 mm	OCP OTP SCP UVLO	3 V	0.6 V	5.5 V	Surface Mount	1	22 V	Non-Isolated PoL Module	ITE (Commercial)
