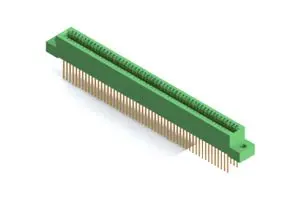

325-106 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 106POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Pitch | Pitch | Contact Material | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Card Type | Flange Feature | Color | Card Thickness | Card Thickness | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Positions/Bay/Row | Termination | Number of Positions | Gender | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | Copper Alloy | 2 | -65 ░C | 125 °C | Dual | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 3.18 mm | 0.125 in | Through Hole | 0.25 Ám | 10 Áin | Gold | 53 | Solder Eyelet(s) | 106 | Female | Cantilever | ||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | Copper Alloy | 2 | -65 ░C | 125 °C | Dual | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Green | 3.18 mm | 0.125 in | Through Hole | 0.25 Ám | 10 Áin | Gold | 53 | Solder Eyelet(s) | 106 | Female | Cantilever | 0.16 " | 4.06 mm |
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | Copper Alloy | 2 | -65 ░C | 125 °C | Dual | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Green | 3.18 mm | 0.125 in | Through Hole | 0.25 Ám | 10 Áin | Gold | 53 | Wire Wrap | 106 | Female | Cantilever |
