TDS05 Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Electrical Life	Length [x]	Length [x]	Circuit	Mechanical Life	Body Material	Mounting Type	Voltage Rating	Actuator Level	Contact Material	Contact Finish	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Height Above Board [z]	Height Above Board [z]	Washable	Actuator Type	Number of Positions	Current Rating (Amps)

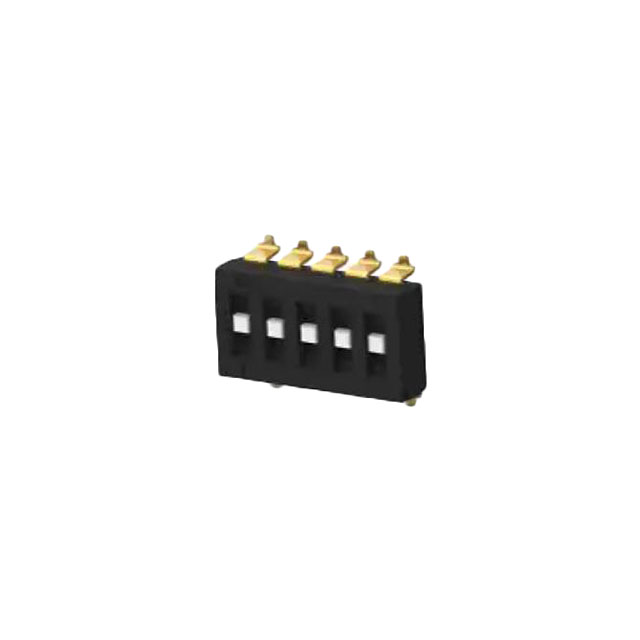

TE Connectivity AMP Connectors TDS05SGRNTU04	2000 Steps	0.546 in	13.87 mm	SPDT SPST	2000 Cycles	Polyamide (PA) Nylon	Surface Mount	24 VDC	Flush Recessed	Copper Alloy	Gold	2.54 mm	0.1 "	85 °C	-20 ░C	Gull Wing	3.7 mm	0.146 in		Slide (Standard)	5	25 mA
