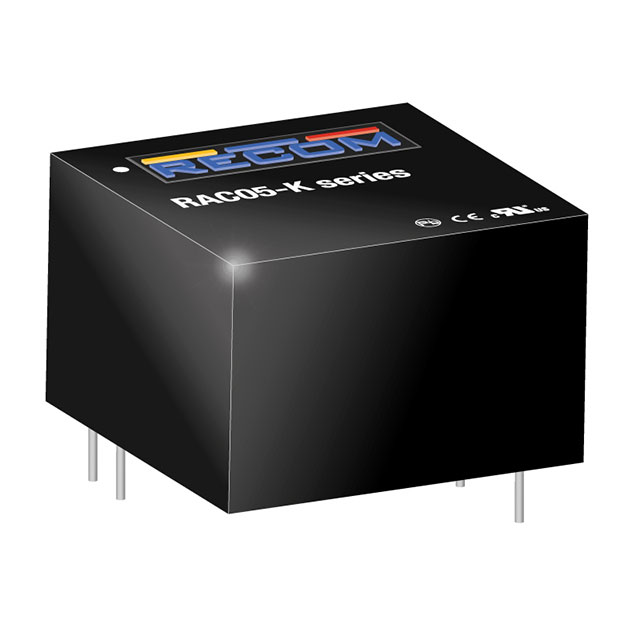

RAC05-K Series
Manufacturer: Recom Power
Beta
⌘K
AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 5 W, 12 V, 416 MA
| Part | Weight [custom] | Weight [custom] | Load Regulation | Line Regulation | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Applications | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Efficiency | Approval Agency | Type | Current - Output (Max) [Max] | Features | Voltage - Output 1 | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 0.044 lb | 19.96 g | ±1% | 0.5 % | 5 W | 85 VAC 120 VDC | 264 VAC 370 VDC | ITE (Commercial) | Through Hole | 1 in | 0.65 in | 25.4 mm | 25.4 mm | 1 " | 16.5 mm | 70 °C | -25 °C | 5-DIP Module | 81 % | CE cURus | Enclosed | 416 mA | Universal Input | 12 V | 1 |
 Recom Power | 0.044 lb | 19.96 g | ±1% | 0.5 % | 5 W | 85 VAC 120 VDC | 264 VAC 370 VDC | ITE (Commercial) | Through Hole | 1 in | 0.65 in | 25.4 mm | 25.4 mm | 1 " | 16.5 mm | 70 °C | -25 °C | 5-DIP Module | 76 % | CE cURus | Enclosed | 1.515 A | Universal Input | 3.3 V | 1 |
 Recom Power | 5 W | 85 VAC 120 VDC | 264 VAC 370 VDC | ITE (Commercial) | Through Hole | 1 in | 0.65 in | 25.4 mm | 25.4 mm | 1 " | 16.5 mm | 70 °C | -25 °C | 5-DIP Module | CE cURus | Enclosed | 333 mA | Universal Input | 15 V | 1 | |||||

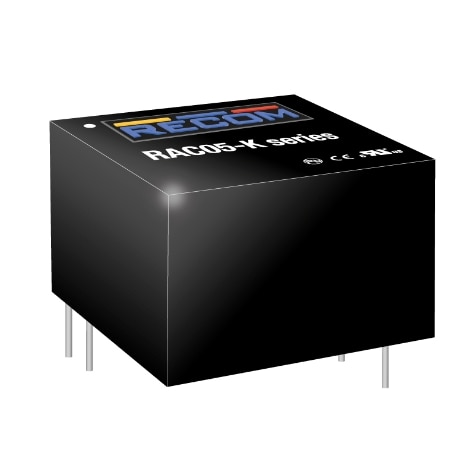

 Recom Power | 5 W | 85 VAC 120 VDC | 264 VAC 370 VDC | ITE (Commercial) | Through Hole | 1 in | 0.65 in | 25.4 mm | 25.4 mm | 1 " | 16.5 mm | 70 °C | -25 °C | 5-DIP Module | 80 % | CE cURus | Enclosed | 1 A | Universal Input | 5 V | 1 | ||||
 Recom Power | 0.044 lb | 19.96 g | ±1% | 0.5 % | 5 W | 85 VAC 120 VDC | 264 VAC 370 VDC | ITE (Commercial) | Through Hole | 1 in | 0.65 in | 25.4 mm | 25.4 mm | 1 " | 16.5 mm | 70 °C | -25 °C | 5-DIP Module | 84 % | CE cURus | Enclosed | 210 mA | Universal Input | 24 V | 1 |
