CR1104S Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 48V

Part	Switch Travel	Actuator Material	Contact Rating @ Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Outline [y]	Outline [x]	Circuit	Termination Style	Mounting Type	Actuator Type	Switch Function	Illumination	Operating Force

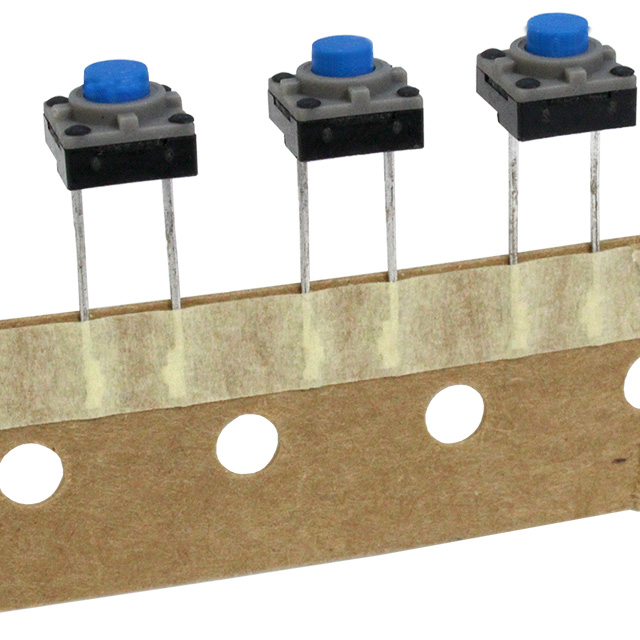

CIT Relay and Switch CR1104S7.0LF200	0.3 mm	Polybutylene Terephthalate (PBT)	0.05 A 48 VDC	85 °C	-40 C	7 mm	Top Actuated	7.2 mm	7.2 mm	SPST-NO	PC Pin	Through Hole	Standard	Off-Mom	Non-Illuminated	0.2 kgf
CIT Relay and Switch CR1104S5.0LF200	0.3 mm	Polybutylene Terephthalate (PBT)	0.05 A 48 VDC	85 °C	-40 C	5 mm	Top Actuated	7.2 mm	7.2 mm	SPST-NO	PC Pin	Through Hole	Standard	Off-Mom	Non-Illuminated	0.2 kgf
CIT Relay and Switch CR1104S7.0LF260	0.3 mm	Polybutylene Terephthalate (PBT)	0.05 A 48 VDC	85 °C	-40 C	7 mm	Top Actuated	7.2 mm	7.2 mm	SPST-NO	PC Pin	Through Hole	Standard	Off-Mom	Non-Illuminated	260 gf

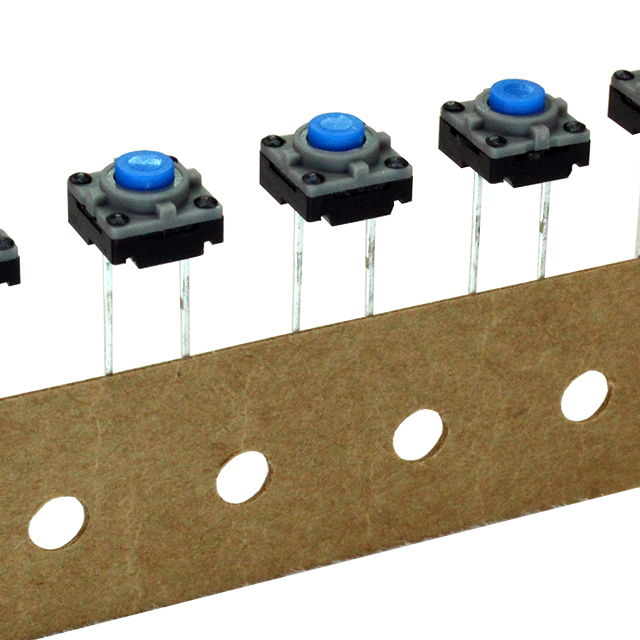

CIT Relay and Switch CR1104S4.3LF260	0.3 mm	Polybutylene Terephthalate (PBT)	0.05 A 48 VDC	85 °C	-40 C	4.3 mm	Top Actuated	7.2 mm	7.2 mm	SPST-NO	PC Pin	Through Hole	Standard	Off-Mom	Non-Illuminated	260 gf
