887-084 Series
Manufacturer: EDAC Inc.
Beta
⌘K

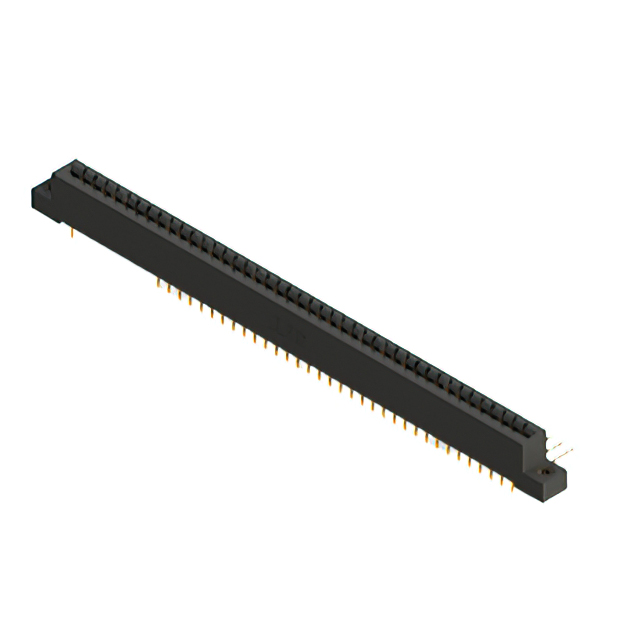

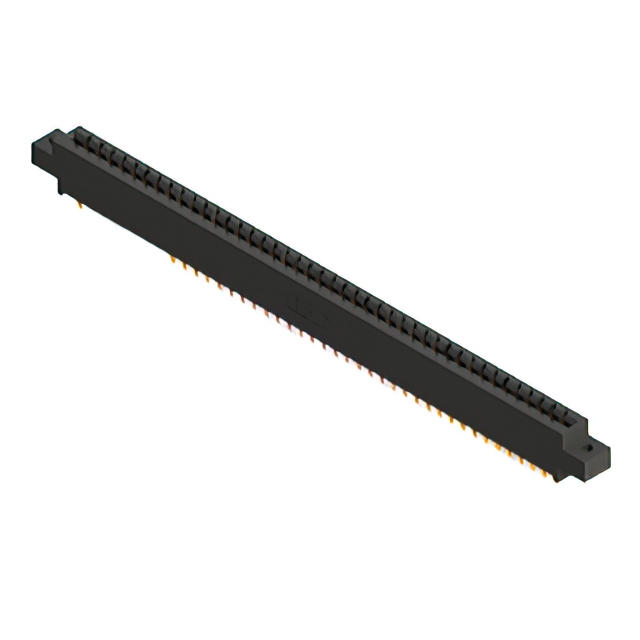

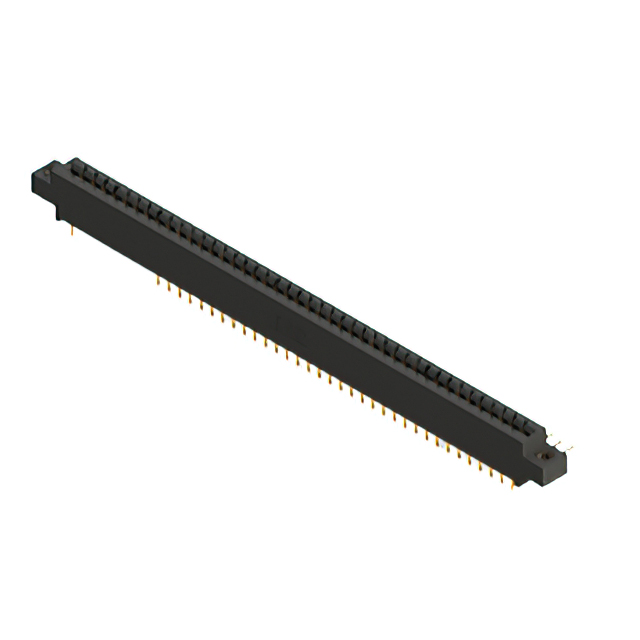

CONN EDGE DUAL FMALE 84POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Flange Feature | Card Type | Number of Rows [custom] | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Gender | Pitch | Pitch | Number of Positions/Bay/Row | Read Out | Card Thickness [Max] | Card Thickness [Min] | Features | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Mounting Type | Color | Contact Type | Number of Positions [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | Gold | 125 °C | -40 C | Solder | Female | 3.96 mm | 0.156 in | 42 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | 0.25 Ám | 10 Áin | Copper Alloy | Board Edge Straddle Mount | Black | Cantilever | 84 | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 2 | Gold | 125 °C | -40 C | Solder | Female | 3.96 mm | 0.156 in | 42 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Black | Cantilever | 84 | 0.156 " | 3.96 mm | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 2 | Gold | 125 °C | -40 C | Solder | Female | 3.96 mm | 0.156 in | 42 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Right Angle Through Hole | Black | Cantilever | 84 | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 2 | Gold | 125 °C | -40 C | Solder | Female | 3.96 mm | 0.156 in | 42 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | 0.25 Ám | 10 Áin | Copper Alloy | Board Edge Straddle Mount | Black | Cantilever | 84 | 0.156 " | 3.96 mm | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | Gold | 125 °C | -40 C | Solder | Female | 3.96 mm | 0.156 in | 42 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | 0.25 Ám | 10 Áin | Copper Alloy | Board Edge Straddle Mount | Black | Cantilever | 84 | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 2 | Gold | 125 °C | -40 C | Solder | Female | 3.96 mm | 0.156 in | 42 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | 0.25 Ám | 10 Áin | Copper Alloy | Board Edge Straddle Mount | Black | Cantilever | 84 | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Side Mount Opening Unthreaded | Non Specified - Dual Edge | 2 | Gold | 125 °C | -40 C | Solder | Female | 3.96 mm | 0.156 in | 42 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Black | Cantilever | 84 | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | Gold | 125 °C | -40 C | Wire Wrap | Female | 3.96 mm | 0.156 in | 42 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Through Hole | Black | Cantilever | 84 | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 2 | Gold | 125 °C | -40 C | Solder | Female | 3.96 mm | 0.156 in | 42 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Right Angle Through Hole | Black | Cantilever | 84 | 0.156 " | 3.96 mm | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | Gold | 125 °C | -40 C | Solder | Female | 3.96 mm | 0.156 in | 42 | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | Right Angle Through Hole | Black | Cantilever | 84 |
