PD200 Series

Catalog

DIODE MODULE GP 800V 200A

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Speed [Min]	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Diode Configuration	Technology	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Package / Case	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If
KYOCERA AVX PD200KN8	800 V	200 mA 500 ns	Chassis Mount	1.4 V	Module	17 mA	1 Pair Series Connection	Standard	-40 °C	150 °C	Module	200 A

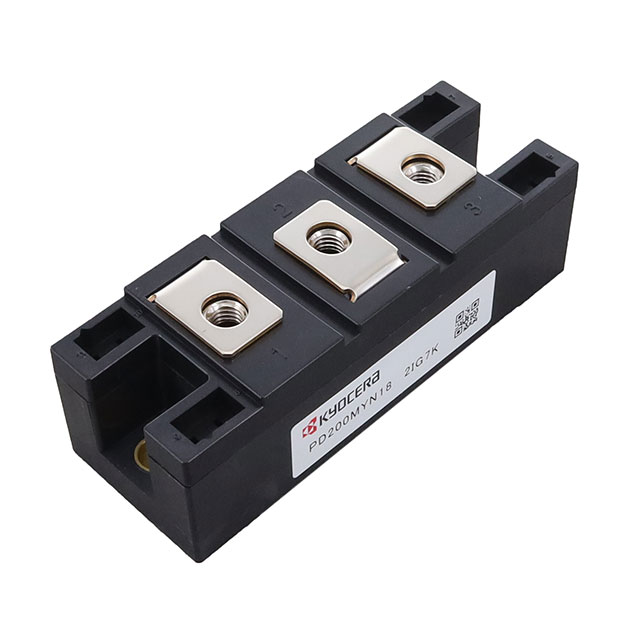

KYOCERA AVX PD200MYN18	1800 V	200 mA 500 ns	Chassis Mount		Module	10 mA	1 Pair Series Connection	Standard	-40 °C	150 °C	Module	200 A	1.5 V
