N3433 Series

Catalog

CONN EJECTOR HEADER HDR 50 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BOX

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Shape	Insulation Color	Fastening Type	Mounting Type	Contact Finish - Mating	Current Rating (Amps)	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Length - Mating [x]	Contact Length - Mating [x]	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Number of Rows [custom]	Insulation Material	Contact Material	Shrouding	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]
3M Electronic Specialty N3433-2303RB	200 µin	5.08 µm	3.94 mm	0.155 "	All	Tin	17.27 mm	0.68 in	Square	Black	Latch Lock/Eject Hooks Long	Through Hole	Gold	1.75 A	Board to Board Cable	0.1 in	2.54 mm	-55 C	105 ░C	Male Pin	Solder	50	0.76 Ám	30 Áin	UL94 V-0	0.24 in	6.1 mm	0.1 "	2.54 mm	0.695 in	17.65 mm	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Shrouded - 3 Wall	Header
3M Electronic Specialty N3433-6303	200 µin	5.08 µm	3.94 mm	0.155 "	All	Tin-Lead	17.27 mm	0.68 in	Square	Black	Latch Lock/Eject Hooks Long	Through Hole	Gold	1.75 A	Board to Board Cable	0.1 in	2.54 mm	-55 C	105 ░C	Male Pin	Solder	50	0.76 Ám	30 Áin	UL94 V-0	0.24 in	6.1 mm	0.1 "	2.54 mm	0.695 in	17.65 mm	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Shrouded - 4 Wall	Header
3M Electronic Specialty N3433-6202RB	200 µin	5.08 µm			All	Tin	17.27 mm	0.68 in	Square	Black	Latch Lock/Eject Hooks	Through Hole	Gold	1.75 A	Board to Board Cable	0.1 in	2.54 mm	-55 C	105 ░C	Male Pin	Solder	50	0.76 Ám	30 Áin	UL94 V-0	0.24 in	6.1 mm	0.1 "	2.54 mm	0.652 in	16.56 mm	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Shrouded - 4 Wall	Header	0.112 in	2.84 mm
3M Electronic Specialty N3433-6305EB			15.49 mm	0.61 in	All		17.27 mm	0.68 in	Square	Black	Latch Lock/Eject Hooks Long	Through Hole	Gold	1.75 A	Board to Board Cable	0.1 in	2.54 mm	-55 C	105 ░C	Male Pin	Wire Wrap	50	0.76 Ám	30 Áin	UL94 V-0	0.24 in	6.1 mm	0.1 "	2.54 mm	1.15 in	29.21 mm	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Shrouded - 4 Wall	Header

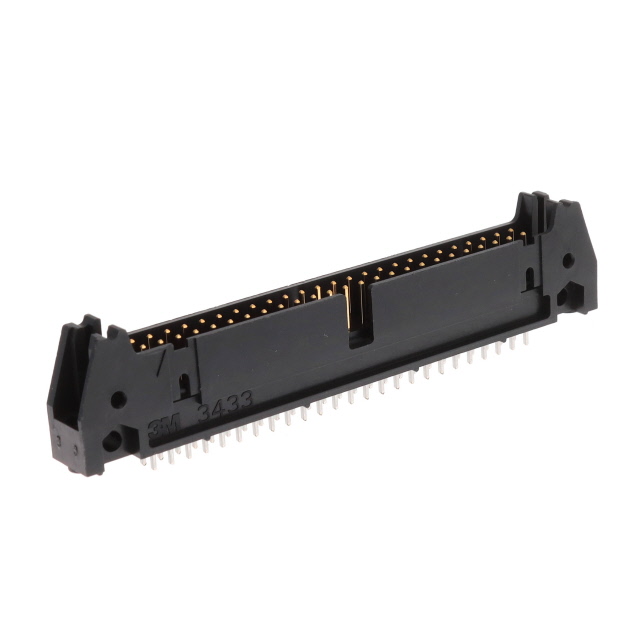

3M Electronic Specialty N3433-6002RB	200 µin	5.08 µm			All	Tin	17.27 mm	0.68 in	Square	Black	Push-Pull	Through Hole	Gold	1.75 A	Board to Board Cable	0.1 in	2.54 mm	-55 C	105 ░C	Male Pin	Solder	50	0.76 Ám	30 Áin	UL94 V-0	0.24 in	6.1 mm	0.1 "	2.54 mm	0.652 in	16.56 mm	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Shrouded - 4 Wall	Header	0.112 in	2.84 mm
3M Electronic Specialty N3433-620T02RB	300 µin	7.62 µm	4.45 mm	0.175 in	All	Tin	17.27 mm	0.68 in	Square	Black	Latch Lock/Eject Hooks	Through Hole	Gold	1.75 A	Board to Board Cable	0.1 in	2.54 mm	-55 C	105 ░C	Male Pin	Press-Fit Solder	50	0.76 Ám	30 Áin	UL94 V-0	0.24 in	6.1 mm	0.1 "	2.54 mm	0.715 in	18.16 mm	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Shrouded - 4 Wall	Header
3M Electronic Specialty N3433-5003RB	200 µin	5.08 µm	3.94 mm	0.155 "	All	Tin	8.64 mm	0.34 in	Square	Black	Push-Pull	Right Angle Through Hole	Gold	1.75 A	Board to Board Cable	0.1 in	2.54 mm	-55 C	105 ░C	Male Pin	Solder	50	0.76 Ám	30 Áin	UL94 V-0	0.24 in	6.1 mm	0.1 "	2.54 mm			2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Shrouded - 4 Wall	Header
3M Electronic Specialty N3433-5002RB	200 µin	5.08 µm			All	Tin	8.64 mm	0.34 in	Square	Black	Push-Pull	Right Angle Through Hole	Gold	1.75 A	Board to Board Cable	0.1 in	2.54 mm	-55 C	105 ░C	Male Pin	Solder	50	0.76 Ám	30 Áin	UL94 V-0	0.24 in	6.1 mm	0.1 "	2.54 mm			2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Shrouded - 4 Wall	Header	0.112 in	2.84 mm
3M Electronic Specialty N3433-5203RB	200 µin	5.08 µm	3.94 mm	0.155 "	All	Tin	8.64 mm	0.34 in	Square	Black	Latch Lock/Eject Hooks	Right Angle Through Hole	Gold	1.75 A	Board to Board Cable	0.1 in	2.54 mm	-55 C	105 ░C	Male Pin	Solder	50	0.76 Ám	30 Áin	UL94 V-0	0.24 in	6.1 mm	0.1 "	2.54 mm			2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Shrouded - 4 Wall	Header
3M Electronic Specialty N3433-6005EB			15.49 mm	0.61 in	All		17.27 mm	0.68 in	Square	Black	Push-Pull	Through Hole	Gold	1.75 A	Board to Board Cable	0.1 in	2.54 mm	-55 C	105 ░C	Male Pin	Wire Wrap	50	0.76 Ám	30 Áin	UL94 V-0	0.24 in	6.1 mm	0.1 "	2.54 mm	1.15 in	29.21 mm	2	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Copper Alloy	Shrouded - 4 Wall	Header
