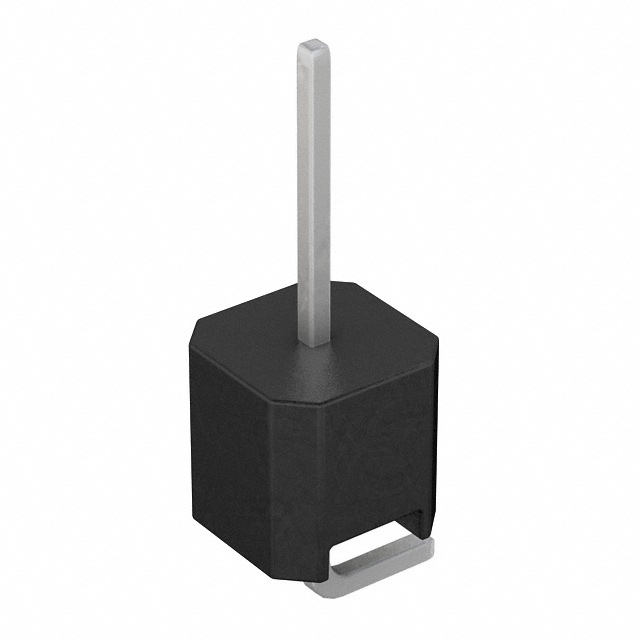

NREC001 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER SMD 1POS
| Part | Contact Shape | Termination | Fastening Type | Number of Positions Loaded | Shrouding | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Material Flammability Rating | Number of Rows | Contact Material | Current Rating (Amps) | Mounting Type | Contact Length - Mating | Contact Length - Mating | Style | Insulation Material | Contact Type | Contact Finish - Post | Insulation Color | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Solder | Push-Pull | All | Unshrouded | 1 | -40 C | 105 ░C | Header | UL94 V-0 | 1 | Brass | 3 A | Surface Mount | 0.23 in | 5.84 mm | Board to Board Cable | Nylon 6T Polyamide (PA6T) | Male Pin | Tin | Black | 0.098 " | 2.5 mm |
