TPS4000 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 4 KW, 24 V, 166 A
| Part | Minimum Load Required | Power (Watts) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Current - Output 1 | Type | Voltage - Isolation | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Output 1 | Approval Agency | Efficiency | Features | Applications | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

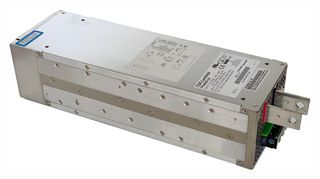

 TDK Corporation | 4000 W | Chassis Mount | 70 °C | -10 °C | 1 | 166 A | Enclosed | 3000 V | 3.32 in | 107 mm | 13.03 " | 4.21 in | 331 mm | 84.4 mm | 24 V | CE | 92 % | Adjustable Output PMBus™ Remote On/Off Remote Sense | ITE (Commercial) | 350 VAC | 528 VAC | |

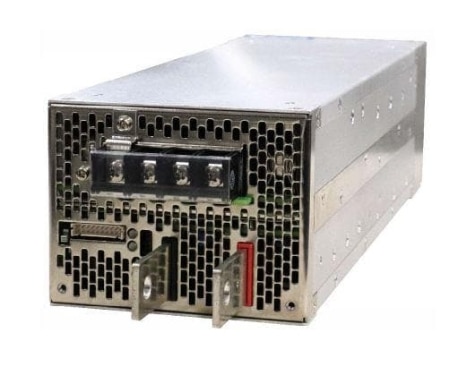

 TDK Corporation | 4000 W | Chassis Mount | 70 °C | -10 °C | 1 | 83.3 A | Enclosed | 3000 V | 3.32 in | 107 mm | 13.03 " | 4.21 in | 331 mm | 84.4 mm | 48 V | CE | 92 % | Adjustable Output PMBus™ Remote On/Off Remote Sense | ITE (Commercial) | 350 VAC | 528 VAC |
