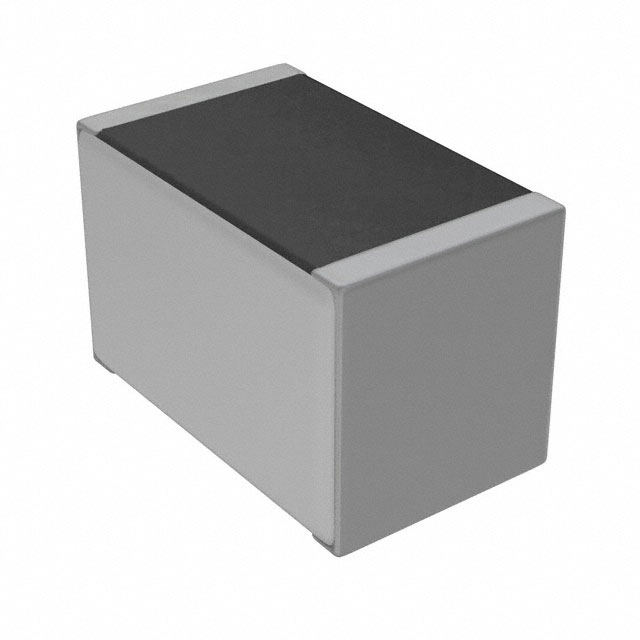

TYC0805 Series

Catalog

CAP CER 22PF 50V NP0 0805

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Voltage - Rated	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Capacitance	Applications	Temperature Coefficient	Tolerance	Thickness (Max) [Max]	Thickness (Max) [Max]	Thickness (Max)	Tolerance [Max]	Tolerance [Min]	Thickness (Max) [Max] [z]
TE Connectivity AMP Connectors TYC0805A220JGT	2 mm	1.25 mm	0.049 "	0.079 in	0805	50 VDC	MLCC Surface Mount	-55 C	125 °C	Low Dissipation Factor	22 pF	General Purpose	C0G NP0	5 %	0.7 mm	0.028 in
TE Connectivity AMP Connectors TYC0805B102KJT	2 mm	1.25 mm	0.049 "	0.079 in	0805	200 VDC	MLCC Surface Mount	-55 C	125 °C	Low Dissipation Factor	0.001 µF	General Purpose	X7R	10 %		0.031 "	0.8 mm
TE Connectivity AMP Connectors TYC0805B105KEP	2 mm	1.25 mm	0.049 "	0.079 in	0805	16 V	MLCC Surface Mount	-55 C	125 °C	Low Dissipation Factor	1 µF	General Purpose	X7R	10 %	1.25 mm	0.049 in
TE Connectivity AMP Connectors TYC0805D225ZEP	2 mm	1.25 mm	0.049 "	0.079 in	0805	16 V	MLCC Surface Mount	-30 ░C	85 °C	Low Dissipation Factor	2.2 µF	General Purpose	Y5V (F)		1.35 mm	0.053 in		80 %	-20 %
TE Connectivity AMP Connectors TYC0805B104KGP	2 mm	1.25 mm	0.049 "	0.079 in	0805	50 VDC	MLCC Surface Mount	-55 C	125 °C	Low Dissipation Factor	100000 pF	General Purpose	X7R	10 %	1.25 mm	0.049 in
TE Connectivity AMP Connectors TYC0805B222KGT	2 mm	1.25 mm	0.049 "	0.079 in	0805	50 VDC	MLCC Surface Mount	-55 C	125 °C	Low Dissipation Factor	2200 pF	General Purpose	X7R	10 %			0.9 mm			0.035 in
