895-128 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 128POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Card Type	Pitch	Pitch	Read Out	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Gender	Color	Contact Material	Mounting Type	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]	Features
EDAC Inc. 895-128-544-803	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Gold	128	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Female	Black	Copper Alloy	Through Hole	Wire Wrap	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	2
EDAC Inc. 895-128-521-804	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Gold	128	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Female	Black	Copper Alloy	Through Hole	Solder		0.156 "	3.96 mm	2
EDAC Inc. 895-128-558-203	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Gold	128	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Female	Black	Copper Alloy	Right Angle Through Hole	Solder	Floating Bobbin Flush Mount	0.116 "	2.95 mm	2

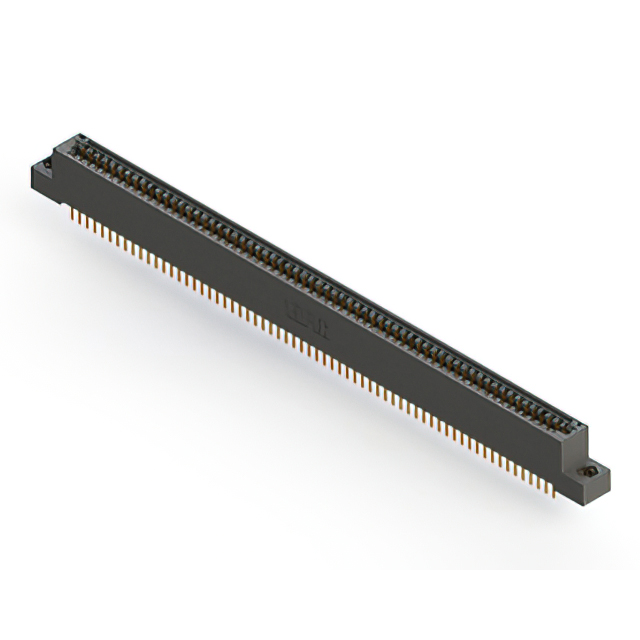

EDAC Inc. 895-128-520-207	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Gold	128	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Female	Black	Copper Alloy	Through Hole	Solder	Flush Mount M3 Threaded Insert Top Opening			2
EDAC Inc. 895-128-523-803	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Gold	128	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Female	Black	Copper Alloy	Through Hole	Solder	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	2

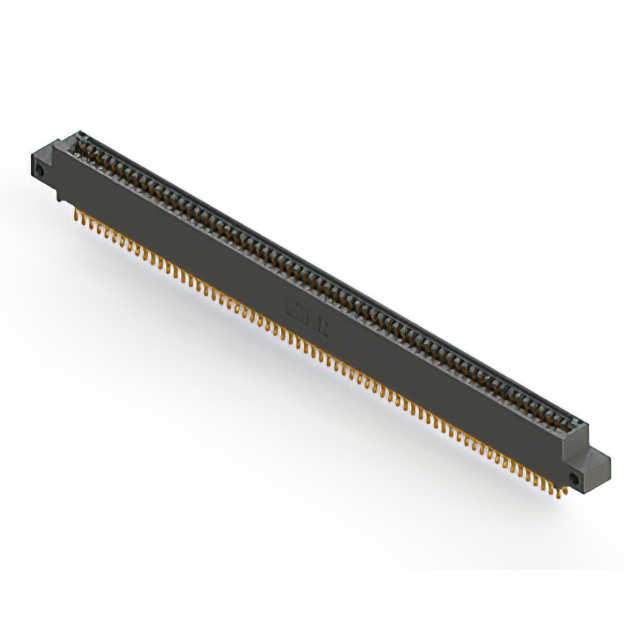

EDAC Inc. 895-128-555-512	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Gold	128	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Female	Black	Copper Alloy	Board Edge Straddle Mount	Solder	Side Mount Opening Unthreaded	0.128 "	3.25 mm	2	Card Extender
EDAC Inc. 895-128-500-507	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Gold	128	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Female	Black	Copper Alloy	Through Hole	Solder Eyelet(s)	M3 Threaded Insert Top Mount Opening			2

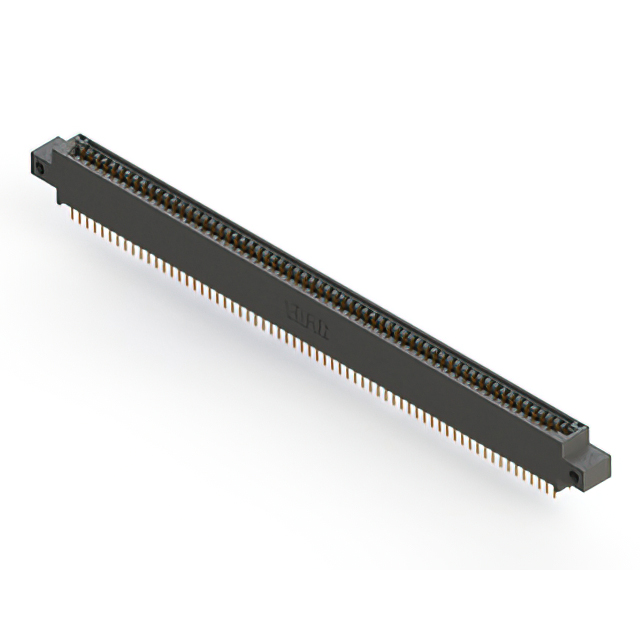

EDAC Inc. 895-128-524-812	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Gold	128	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Female	Black	Copper Alloy	Through Hole	Solder	Side Mount Opening Unthreaded	0.128 "	3.25 mm	2

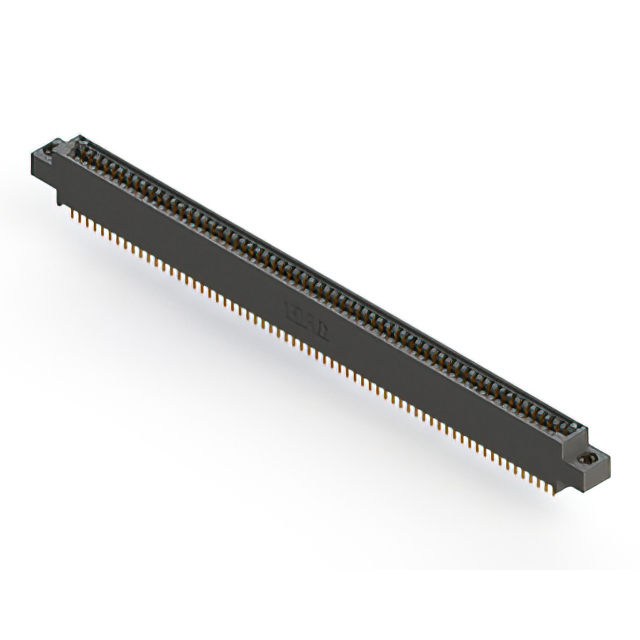

EDAC Inc. 895-128-521-808	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Gold	128	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Female	Black	Copper Alloy	Through Hole	Solder	4-40 Threaded Insert Top Mount Opening			2

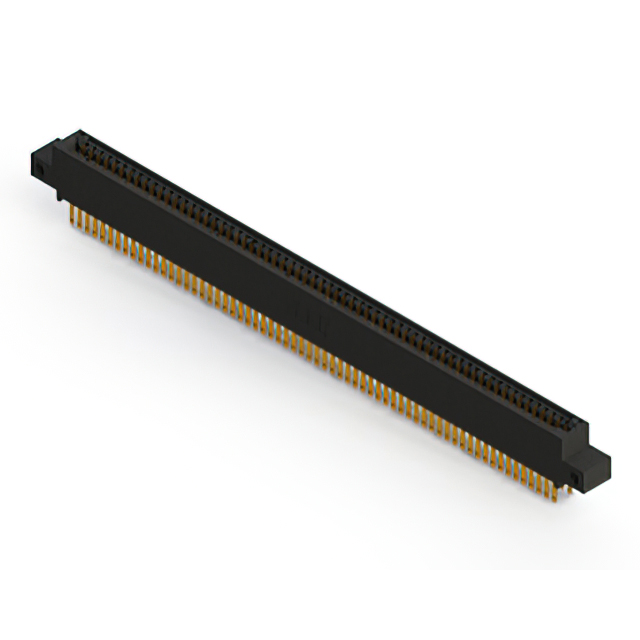

EDAC Inc. 895-128-500-512	Polyphenylene Sulfide (PPS)	2	0.25 Ám	10 Áin	Gold	128	Non Specified - Dual Edge	0.1 "	2.54 mm	Dual	Cantilever	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	64	Female	Black	Copper Alloy	Through Hole	Solder Eyelet(s)	Side Mount Opening Unthreaded	0.128 "	3.25 mm	2
