NKFPX1 Series

Catalog

NK 1-FIBER OM3 LC PIGTAIL, 900UM

Part	Insertion Loss	Return Loss	Operating Temperature [Min]	Operating Temperature [Max]	Color - Connectors	Fiber Type	Cable Diameter [diameter]	Cable Diameter [diameter]	2nd Connector	Cable Type	Type	Length - Overall [x]	Length - Overall [x]	1st Connector
Panduit Corp NKFPX1BN1NNM002	0.3 dB	26 dB	-10 °C	60 °C	Beige	50/125	0.04 in	1 mm	Cable	Buffered Fiber	Multimode OM3 Simplex	6.6 '	2 m

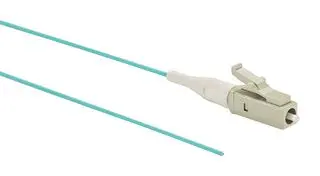

Panduit Corp NKFPX1BN1NNM001	0.3 dB	26 dB	-10 °C	60 °C	Beige	50/125	0.04 in	1 mm	Cable	Buffered Fiber	Multimode OM3 Simplex	3.3 ft	1 m

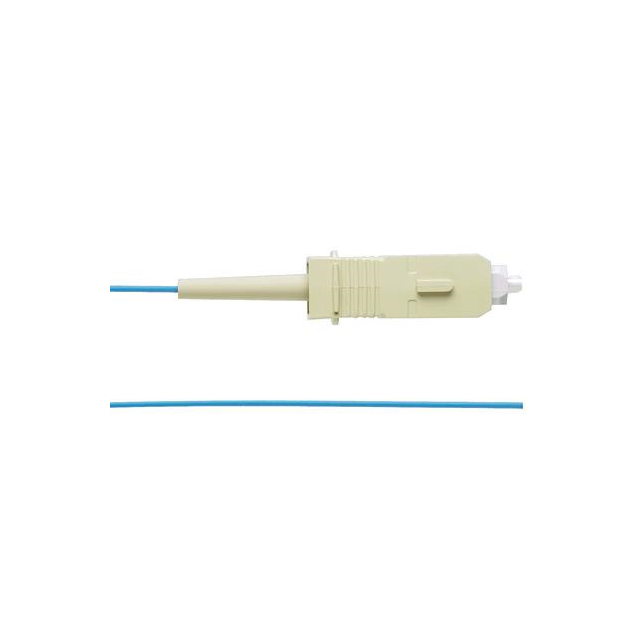

Panduit Corp NKFPX1BN3NNM001	0.3 dB	26 dB	-10 °C	60 °C	Beige	50/125	0.04 in	1 mm	Cable	Buffered Fiber	Multimode OM3 Simplex	3.3 ft	1 m	SC
Panduit Corp NKFPX1BN1NKM001	0.3 dB	26 dB	-10 °C	60 °C		50/125	0.04 in	1 mm	Cable	Buffered Fiber	Multimode OM3	3.3 ft	1 m
