PX0691 Series

Catalog

CONN POWER M 2 POS SOLDER LUG ST PANEL MOUNT 2 TERMINAL 1 PORT BULK

Part	Connector Type	Panel Thickness	Panel Thickness	Current Rating - Appliance Inlet	Termination	Approval Agency	Material Flammability Rating	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Voltage Rating - Appliance Inlet	Filter Type	Termination	Termination

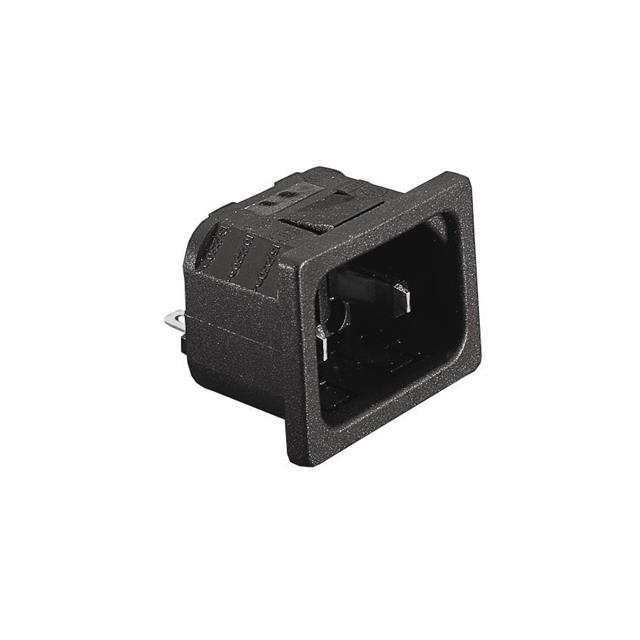

BULGIN LIMITED PX0691/20/28	Receptacle Male Blades	0.079 in	2 mm	10 A	Solder	CSA ENEC UL VDE	UL94 V-0	IEC 320-C18	19.8 mm	27.4 mm	Panel Mount Snap-In	250 VAC	Unfiltered - Commercial
BULGIN LIMITED PX0691/10/28	Receptacle Male Blades	0.039 in	1 mm	10 A	Solder	CSA ENEC UL VDE	UL94 V-0	IEC 320-C18	19.8 mm	27.4 mm	Panel Mount Snap-In	250 VAC	Unfiltered - Commercial
BULGIN LIMITED PX0691/15/63	Receptacle Male Blades	0.059 in	1.5 mm	10 A	Quick Connect	CSA ENEC UL VDE	UL94 V-0	IEC 320-C18	19.8 mm	27.4 mm	Panel Mount Snap-In	250 VAC	Unfiltered - Commercial	6.3 mm	0.25 "
BULGIN LIMITED PX0691/20/63	Receptacle Male Blades	0.079 in	2 mm	10 A	Quick Connect	CSA ENEC UL VDE	UL94 V-0	IEC 320-C18	19.8 mm	27.4 mm	Panel Mount Snap-In	250 VAC	Unfiltered - Commercial	6.3 mm	0.25 "
