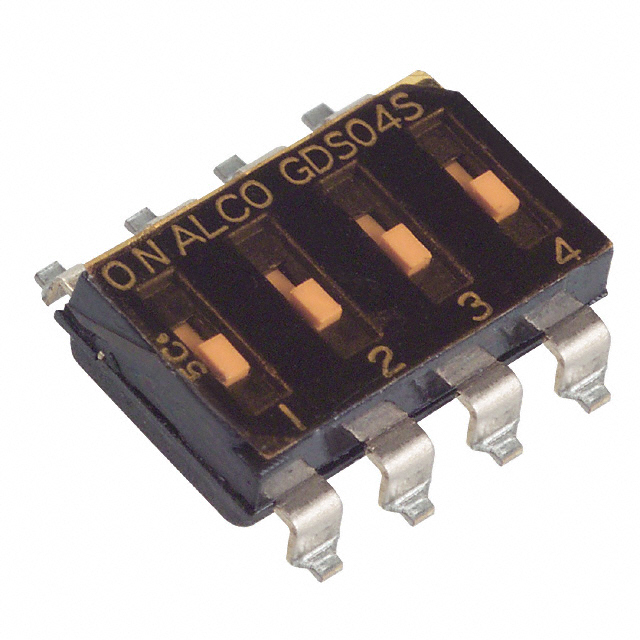

GDS04 Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mechanical Life	Body Material	Length	Length	Electrical Life	Actuator Type	Washable	Voltage Rating	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Height Above Board [z]	Height Above Board [z]	Contact Finish	Circuit	Number of Positions	Termination Style	Pitch	Pitch	Features	Mounting Type	Current Rating (Amps)
TE Connectivity AMP Connectors GDS04STR	1000 Cycles	Polyphenylene Sulfide (PPS)	0.394 in	10.01 mm	1000 Cycles	Slide (Standard)		24 VDC	Flush Recessed	85 °C	-30 ░C	Copper Alloy	2.9 mm	0.114 in	Gold	SPST	4	Gull Wing	2.54 mm	0.1 "	Tape Seal	Surface Mount	25 mA
TE Connectivity AMP Connectors GDS04S	1000 Cycles	Polyphenylene Sulfide (PPS)	0.394 in	10.01 mm	1000 Cycles	Slide (Standard)		24 VDC	Flush Recessed	85 °C	-30 ░C	Copper Alloy	2.9 mm	0.114 in	Gold	SPST	4	Gull Wing	2.54 mm	0.1 "	Tape Seal	Surface Mount	25 mA
