833-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K

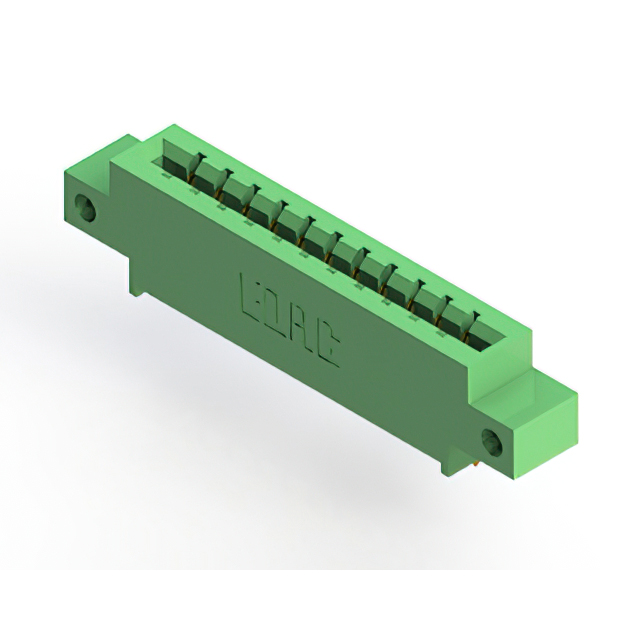

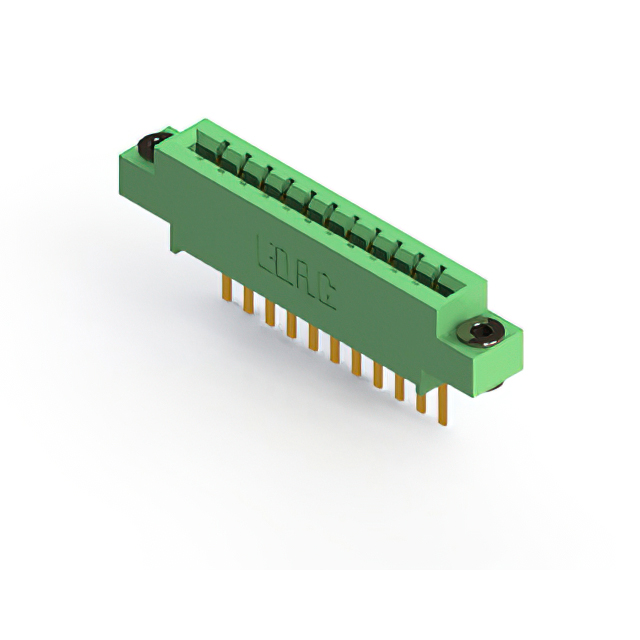

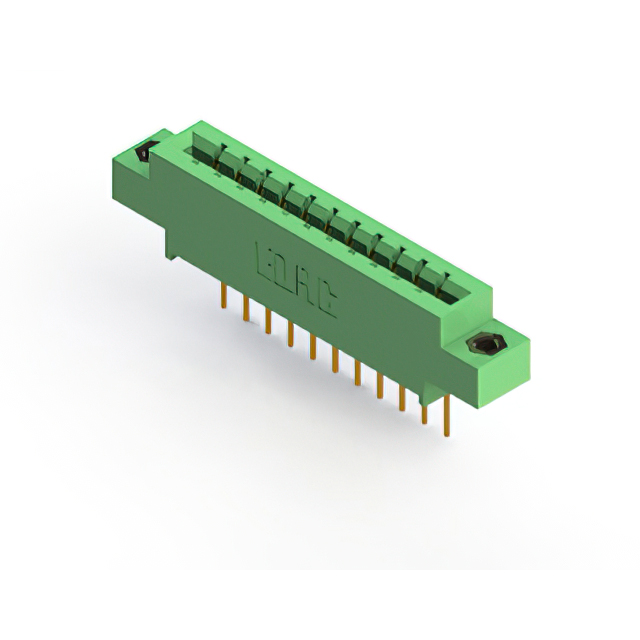

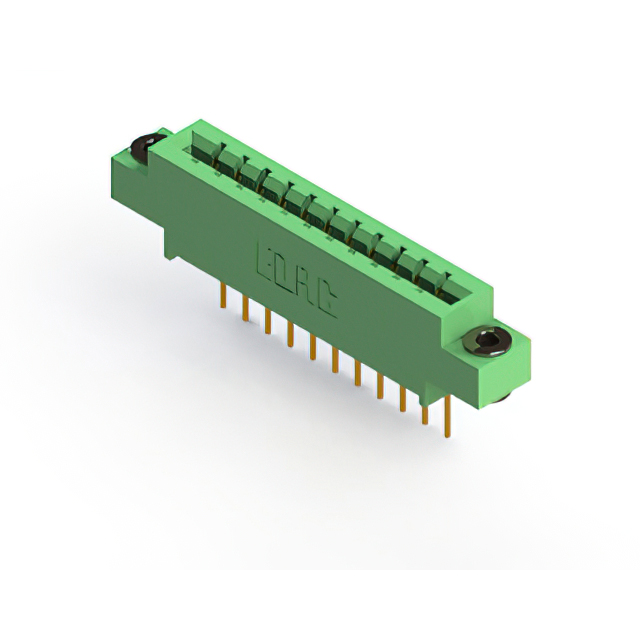

CONN EDGE SGL FMALE 11POS 0.156
| Part | Termination Rows | Material - Insulation | Gender | Read Out | Card Thickness [Max] | Card Thickness [Min] | Card Type | Contact Type | Mounting Type | Number of Positions/Bay/Row | Operating Temperature [Max] | Operating Temperature [Min] | Color | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Pitch | Pitch | Number of Rows | Contact Finish | Contact Material | Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Through Hole | 11 | 125 °C | -40 C | Green | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 11 | 3.96 mm | 0.156 in | 1 | Gold | Copper Alloy | Wire Wrap | 0.25 Ám | 10 Áin |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Through Hole | 11 | 125 °C | -40 C | Green | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 11 | 3.96 mm | 0.156 in | 1 | Gold | Copper Alloy | Solder | 0.25 Ám | 10 Áin |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Through Hole | 11 | 125 °C | -40 C | Green | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 11 | 3.96 mm | 0.156 in | 1 | Gold | Copper Alloy | Wire Wrap | 0.25 Ám | 10 Áin |

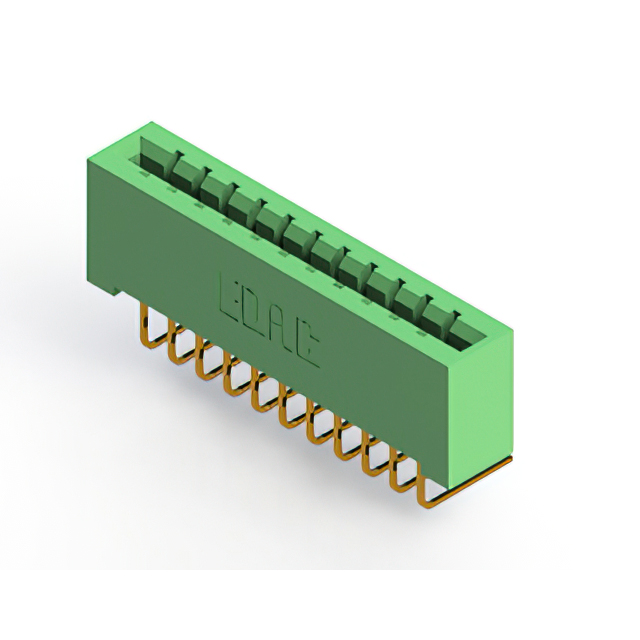

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Right Angle Through Hole | 11 | 125 °C | -40 C | Green | 11 | 3.96 mm | 0.156 in | 1 | Gold | Copper Alloy | Solder | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Through Hole | 11 | 125 °C | -40 C | Green | Flush Mount M3 Threaded Insert Top Opening | 11 | 3.96 mm | 0.156 in | 1 | Gold | Copper Alloy | Solder | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Through Hole | 11 | 125 °C | -40 C | Green | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 11 | 3.96 mm | 0.156 in | 1 | Gold | Copper Alloy | Wire Wrap | 0.25 Ám | 10 Áin |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Through Hole | 11 | 125 °C | -40 C | Green | 4-40 Flush Mount Threaded Insert Top Opening | 11 | 3.96 mm | 0.156 in | 1 | Gold | Copper Alloy | Solder | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Through Hole | 11 | 125 °C | -40 C | Green | 11 | 3.96 mm | 0.156 in | 1 | Gold | Copper Alloy | Wire Wrap | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Through Hole | 11 | 125 °C | -40 C | Green | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 11 | 3.96 mm | 0.156 in | 1 | Gold | Copper Alloy | Wire Wrap | 0.25 Ám | 10 Áin |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Through Hole | 11 | 125 °C | -40 C | Green | M3 Threaded Insert Top Mount Opening | 11 | 3.96 mm | 0.156 in | 1 | Gold | Copper Alloy | Wire Wrap | 0.25 Ám | 10 Áin |
