CKM12BTW Series

Catalog

SWITCH KEYLOCK 2POS SPDT 3A 250V

Part	Depth Behind Flange	Mechanical Life	Electrical Life	Contact Timing	Features	Circuit	Mounting Type	Key Removable Positions	Number of Positions	Contact Material	Voltage Rating - AC	Termination Style	Contact Finish	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Switch Function	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Angle of Throw
NKK Switches CKM12BTW01-001	31.2 mm	30000 Steps	10000 Cycles	Non-Shorting (BBM)	Epoxy Sealed Terminals	SPDT	Panel Mount	1	2	Silver (Ag)	250 V	Solder Lug	Silver	16 mm	3 A	On-On	Tubular Key	-25 °C	70 °C	90 °

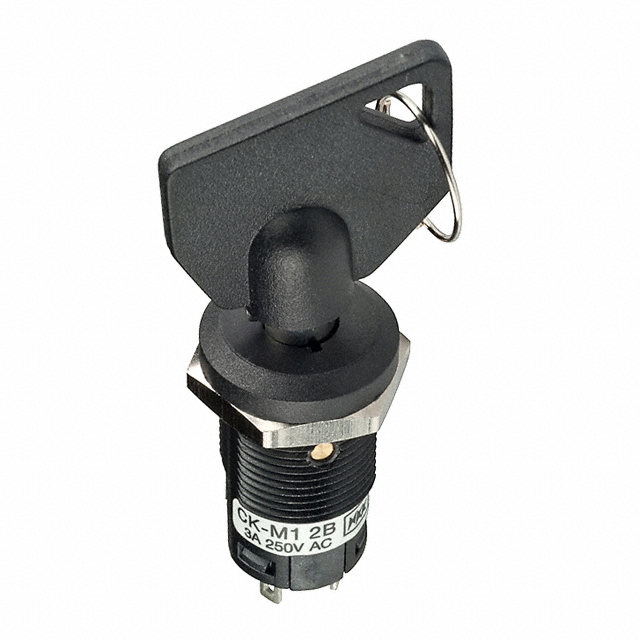

NKK Switches CKM12BTW01-020	31.2 mm	30000 Steps	10000 Cycles	Non-Shorting (BBM)	Epoxy Sealed Terminals	SPDT	Panel Mount	1	2	Silver (Ag)	250 V	Solder Lug	Silver	16 mm	3 A	On-On	Tubular Key	-25 °C	70 °C	90 °
NKK Switches CKM12BTW01-022	31.2 mm	30000 Steps	10000 Cycles	Non-Shorting (BBM)	Epoxy Sealed Terminals	SPDT	Panel Mount	1	2	Silver (Ag)	250 V	Solder Lug	Silver	16 mm	3 A	On-On	Tubular Key	-25 °C	70 °C	90 °
NKK Switches CKM12BTW01	31.2 mm	30000 Steps	10000 Cycles	Non-Shorting (BBM)	Epoxy Sealed Terminals	SPDT	Panel Mount	1	2	Silver (Ag)	250 V	Solder Lug	Silver	16 mm	3 A	On-On	Tubular Key	-25 °C	70 °C	90 °
NKK Switches CKM12BTW01-017	31.2 mm	30000 Steps	10000 Cycles	Non-Shorting (BBM)	Epoxy Sealed Terminals	SPDT	Panel Mount	1	2	Silver (Ag)	250 V	Solder Lug	Silver	16 mm	3 A	On-On	Tubular Key	-25 °C	70 °C	90 °
NKK Switches CKM12BTW01-005	31.2 mm	30000 Steps	10000 Cycles	Non-Shorting (BBM)	Epoxy Sealed Terminals	SPDT	Panel Mount	1	2	Silver (Ag)	250 V	Solder Lug	Silver	16 mm	3 A	On-On	Tubular Key	-25 °C	70 °C	90 °
NKK Switches CKM12BTW01-006	31.2 mm	30000 Steps	10000 Cycles	Non-Shorting (BBM)	Epoxy Sealed Terminals	SPDT	Panel Mount	1	2	Silver (Ag)	250 V	Solder Lug	Silver	16 mm	3 A	On-On	Tubular Key	-25 °C	70 °C	90 °

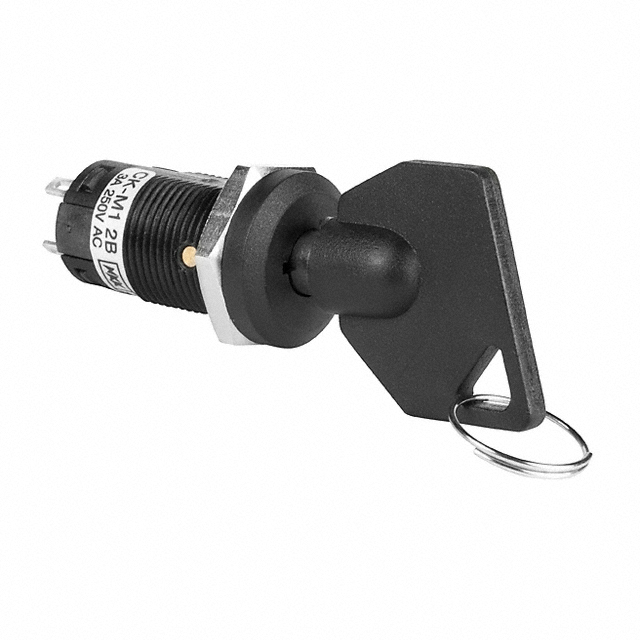

NKK Switches CKM12BTW01-025	31.2 mm	30000 Steps	10000 Cycles	Non-Shorting (BBM)	Epoxy Sealed Terminals	SPDT	Panel Mount	1	2	Silver (Ag)	250 V	Solder Lug	Silver	16 mm	3 A	On-On	Tubular Key	-25 °C	70 °C	90 °
NKK Switches CKM12BTW01-024	31.2 mm	30000 Steps	10000 Cycles	Non-Shorting (BBM)	Epoxy Sealed Terminals	SPDT	Panel Mount	1	2	Silver (Ag)	250 V	Solder Lug	Silver	16 mm	3 A	On-On	Tubular Key	-25 °C	70 °C	90 °
