71918 Series

Catalog

CONN HEADER VERT 26POS 2.54MM

Part	Shrouding	Contact Material	Insulation Color	Contact Finish - Mating	Number of Rows	Style	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Fastening Type	Connector Type	Termination	Contact Finish - Post	Number of Positions	Contact Length - Post	Contact Length - Post	Number of Positions

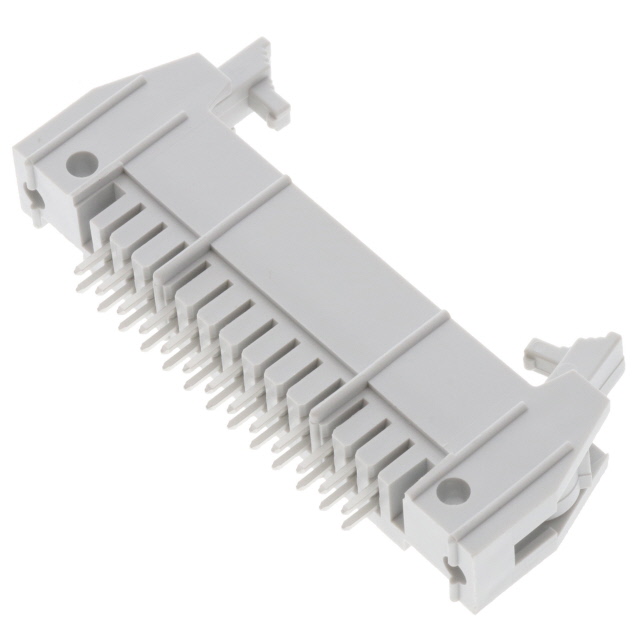

Amphenol ICC (FCI) 71918-226LF	Shrouded - 4 Wall	Phosphor Bronze	Natural	Gold GXT™	2	Board to Cable/Wire	0.685 "	17.4 mm	2.54 mm	0.1 in	Through Hole	Male Pin	30 Áin	0.76 Ám	0.228 in	5.8 mm	All	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Square	Latch Lock/Eject Hooks Short	Header	Solder	Tin	26	0.114 in	2.9 mm

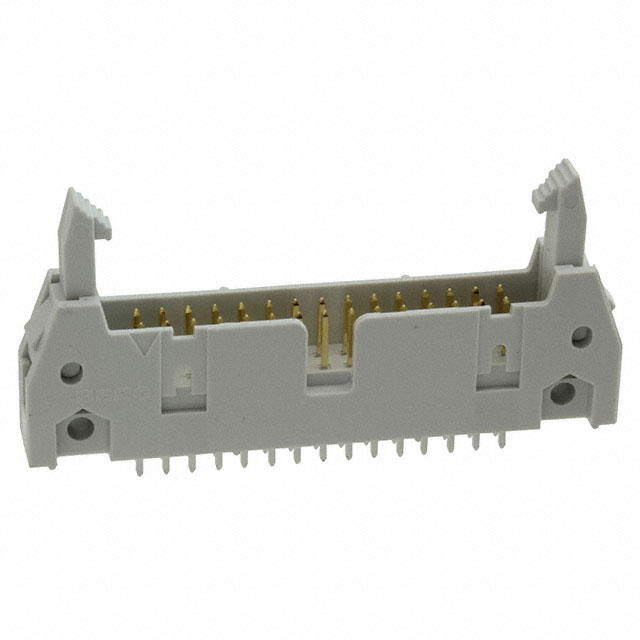

Amphenol ICC (FCI) 71918-130LF	Shrouded - 4 Wall	Phosphor Bronze	Gray	Gold GXT™	2	Board to Cable/Wire	0.685 "	17.4 mm	2.54 mm	0.1 in	Through Hole	Male Pin	30 Áin	0.76 Ám	0.228 in	5.8 mm	All	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Square	Latch Lock/Eject Hooks	Header	Solder	Tin	30	0.114 in	2.9 mm
Amphenol ICC (FCI) 71918-210RLF	Shrouded - 4 Wall	Phosphor Bronze	Natural	Gold GXT™	2	Board to Cable/Wire	0.685 "	17.4 mm	2.54 mm	0.1 in	Through Hole	Male Pin	30 Áin	0.76 Ám	0.228 in	5.8 mm	All	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Square	Latch Lock/Eject Hooks Short	Header	Solder	Tin	10	0.114 in	2.9 mm
Amphenol ICC (FCI) 71918-128LF	Shrouded - 4 Wall	Phosphor Bronze	Natural	Gold GXT™	2	Board to Cable/Wire	0.685 "	17.4 mm	2.54 mm	0.1 in	Through Hole	Male Pin	30 Áin	0.76 Ám	0.228 in	5.8 mm	All	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Square	Latch Lock/Eject Hooks	Header	Solder	Tin	28	0.114 in	2.9 mm
Amphenol ICC (FCI) 71918-230LF	Shrouded - 4 Wall	Phosphor Bronze	Natural	Gold GXT™	2	Board to Cable/Wire	0.685 "	17.4 mm	2.54 mm	0.1 in	Through Hole	Male Pin	30 Áin	0.76 Ám	0.228 in	5.8 mm	All	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Square	Latch Lock/Eject Hooks Short	Header	Solder	Tin	30	0.114 in	2.9 mm

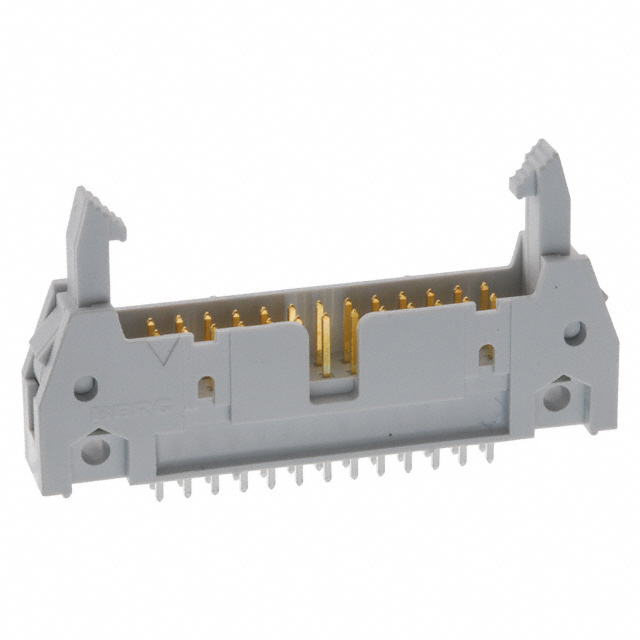

Amphenol ICC (FCI) 71918-126LF	Shrouded - 4 Wall	Phosphor Bronze	Natural	Gold GXT™	2	Board to Cable/Wire	0.685 "	17.4 mm	2.54 mm	0.1 in	Through Hole	Male Pin	30 Áin	0.76 Ám	0.228 in	5.8 mm	All	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Square	Latch Lock/Eject Hooks	Header	Solder	Tin	26	0.114 in	2.9 mm
Amphenol ICC (FCI) 71918-116BLF	Shrouded - 4 Wall	Phosphor Bronze	Natural	Gold GXT™	2	Board to Cable/Wire	0.685 "	17.4 mm	2.54 mm	0.1 in	Through Hole	Male Pin	30 Áin	0.76 Ám	0.228 in	5.8 mm	All	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Square	Latch Lock/Eject Hooks	Header	Solder	Tin		0.114 in	2.9 mm	16
Amphenol ICC (FCI) 71918-016	Shrouded - 4 Wall	Phosphor Bronze	Natural	Gold GXT™	2	Board to Cable/Wire	0.685 "	17.4 mm	2.54 mm	0.1 in	Through Hole	Male Pin	30 Áin	0.76 Ám	0.228 in	5.8 mm	All	0.1 in	2.54 mm	UL94 V-0			Square	Push-Pull	Header	Solder			0.114 in	2.9 mm	16

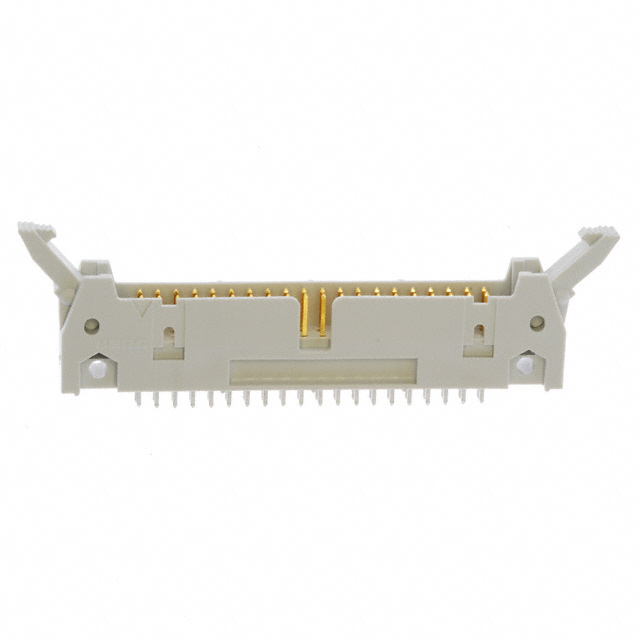

Amphenol ICC (FCI) 71918-140	Shrouded - 4 Wall	Phosphor Bronze	Natural	Gold GXT™	2	Board to Cable/Wire	0.685 "	17.4 mm	2.54 mm	0.1 in	Through Hole	Male Pin	30 Áin	0.76 Ám	0.228 in	5.8 mm	All	0.1 in	2.54 mm	UL94 V-0			Square	Latch Lock/Eject Hooks	Header	Solder		40	0.114 in	2.9 mm
Amphenol ICC (FCI) 71918-150BLF	Shrouded - 4 Wall	Phosphor Bronze	Natural	Gold GXT™	2	Board to Cable/Wire	0.685 "	17.4 mm	2.54 mm	0.1 in	Through Hole	Male Pin	30 Áin	0.76 Ám	0.228 in	5.8 mm	All	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Square	Latch Lock/Eject Hooks	Header	Solder	Tin	50	0.114 in	2.9 mm
