TS2P5F Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

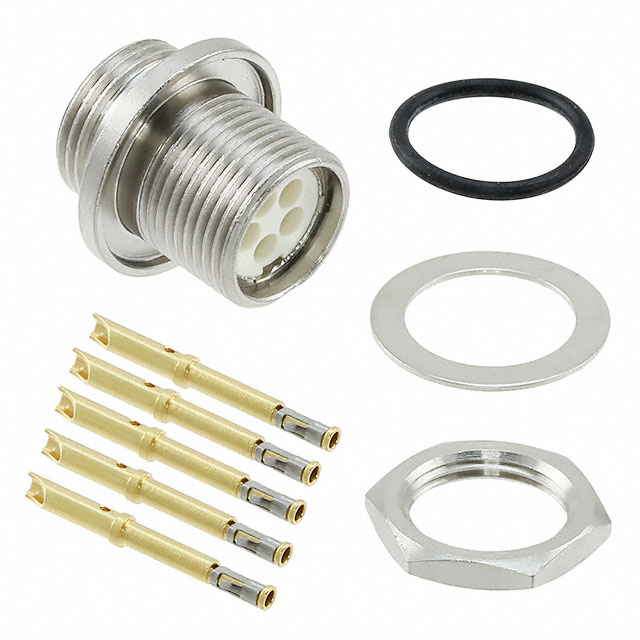

CONN RCPT FMALE 5POS GOLD CRIMP
| Part | Contact Finish - Mating | Connector Type | Voltage Rating | Termination | Contact Material | Mounting Type | Ingress Protection | Shielding | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Primary Material | Applications | Mounting Feature | Shell Finish | Color | Insert Material | Fastening Type | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Gold | Receptacle Female Sockets | 125 VAC | Crimp Solder Cup | Copper Alloy | Panel Mount | IP66 IP67 IP68 | Shielded | Keyed | -40 C | 135 °C | 5 | Metal | Agriculture Audio General Medical Testing Equipment & Measurement | Bulkhead - Rear Side Nut | Electroless Nickel | Silver | Liquid Crystal Polymer (LCP) | Threaded | Copper Alloy |
 SWITCHCRAFT/CONXALL | Gold | Receptacle Female Sockets | 125 VAC | Solder | Copper Alloy | Panel Mount Through Hole | IP66 IP67 IP68 | Shielded | Keyed | -40 C | 135 °C | 5 | Metal | Agriculture Audio General Medical Testing Equipment & Measurement | Bulkhead - Front Side Nut | Electroless Nickel | Silver | Liquid Crystal Polymer (LCP) | Threaded | Copper Alloy |
