- Series

Manufacturer: APEM Inc.

Catalog

SNAP ACTING SWITCH MB ROHS COMPLIANT: YES

Part	Operating Position	Operating Position	Circuit	Termination Style	Voltage Rating - AC	Overtravel	Overtravel	Switch Function	Mechanical Life	Actuator Type	Pretravel	Pretravel	Mounting Type	Differential Travel	Differential Travel	Current Rating (Amps)	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Electrical Life	Bushing Thread	Features	Panel Cutout Dimensions [diameter]	Illumination	Voltage Rating - DC	Actuator Length [x]	Overtravel [custom]	Overtravel [custom]	Pretravel
APEM Inc. MBE5B3	0.492 "	12.5 mm	SPST-NC	Solder Lug	250 V	0.118 "	3 mm	On-Mom	10000000 Cycles	Lever Straight	10 mm	0.394 in	Chassis Mount	1.8 mm	0.07 in	10 A	40 gf	85 °C	-40 C

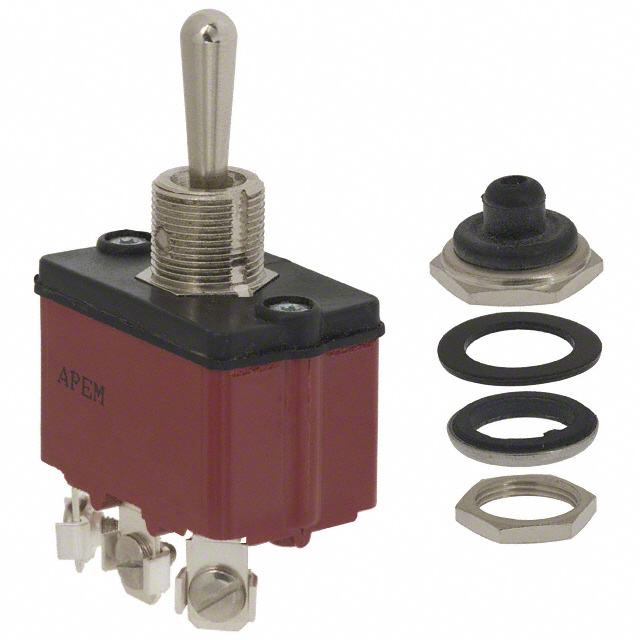

APEM Inc. 3631NF			SPST	Screw Terminal	125 V			On-Off		Standard Round			Panel Mount			6 A 12 A		85 °C	-40 C	Brass Nickel Plated	10000 Cycles	M12 x 0.75	Sealed	12.2 mm Dia	Non-Illuminated	28 V	17.5 mm
APEM Inc. 3639NF			SPDT	Screw Terminal	125 V			On-Off-On		Standard Round			Panel Mount			6 A 12 A		85 °C	-40 C	Brass Nickel Plated	10000 Cycles	M12 x 0.75	Sealed	12.2 mm Dia	Non-Illuminated	28 V	17.5 mm
APEM Inc. MBG5B1	0.437 "	11.1 mm	SPST-NO	PC Pin	250 V			Off-Mom	10000000 Cycles	Lever Straight	5 mm	0.197 "	Through Hole	1.2 mm	0.047 in	10 A	85 gf	85 °C	-40 C									0.06 "	1.5 mm
APEM Inc. 658H			3PDT	Screw Terminal	250 V			On-Off-Mom		Standard Round			Panel Mount			10 A		55 °C	-20 ░C	Brass Nickel Plated	10000 Cycles	M12 x 0.75		12.2 mm Dia	Non-Illuminated		17.5 mm
APEM Inc. MBF5C	0.622 in	15.8 mm	SPDT	Solder Lug	250 V			On-Mom	10000000 Cycles	Lever Roller	0.178 in		Chassis Mount	0.7 mm	0.028 in	10 A	110 gf	85 °C	-40 C									0.06 "	1.5 mm	4.5 mm
APEM Inc. 3644NF			SP3T	Screw Terminal	125 V			On-On-On		Standard Round			Panel Mount			6 A 12 A		85 °C	-40 C	Brass Nickel Plated	10000 Cycles	M12 x 0.75	Jumper needed to achieve triple throw	12.2 mm Dia	Non-Illuminated	28 V	17.5 mm
APEM Inc. MBJ5E	0.63 in	16 mm	SPDT	PC Pin	250 V			On-Mom	10000000 Cycles	Lever Simulated Roller	0.178 in		Through Hole	0.7 mm	0.028 in	10 A	115 gf	85 °C	-40 C									0.06 "	1.5 mm	4.5 mm

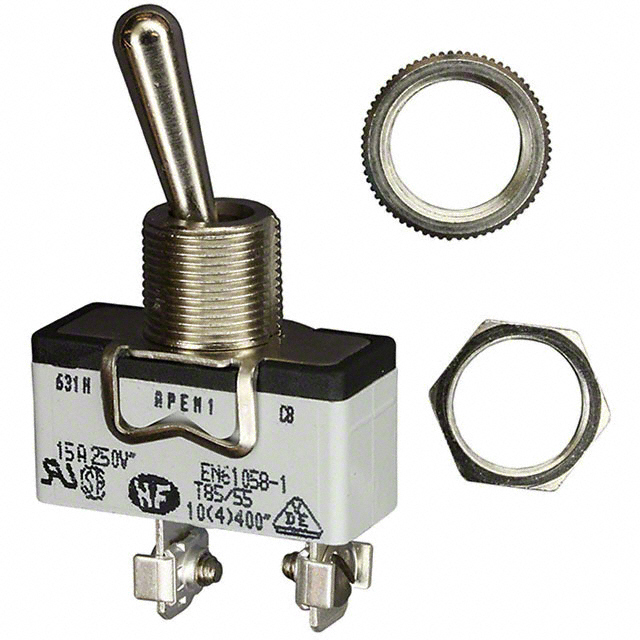

APEM Inc. 631H			SPST	Screw Terminal	250 V			On-Off		Standard Round			Panel Mount			15 A		55 °C	-20 ░C	Brass Nickel Plated	10000 Cycles	M12 x 0.75		12.2 mm Dia	Non-Illuminated		17.5 mm

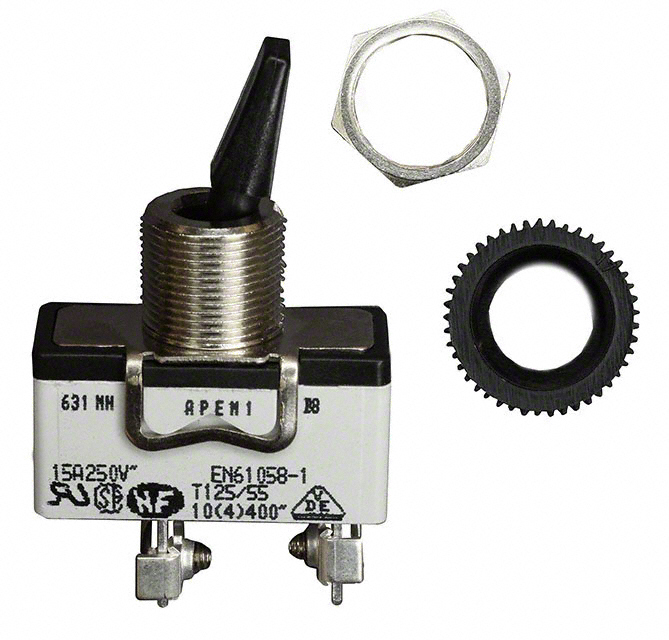

APEM Inc. 631NH			SPST	Screw Terminal	250 V			On-Off		Flatted			Panel Mount			15 A		55 °C	-20 ░C	Polyamide (PA) Nylon	10000 Cycles	M12 x 0.75		12.2 mm Dia	Non-Illuminated		13.5 mm
